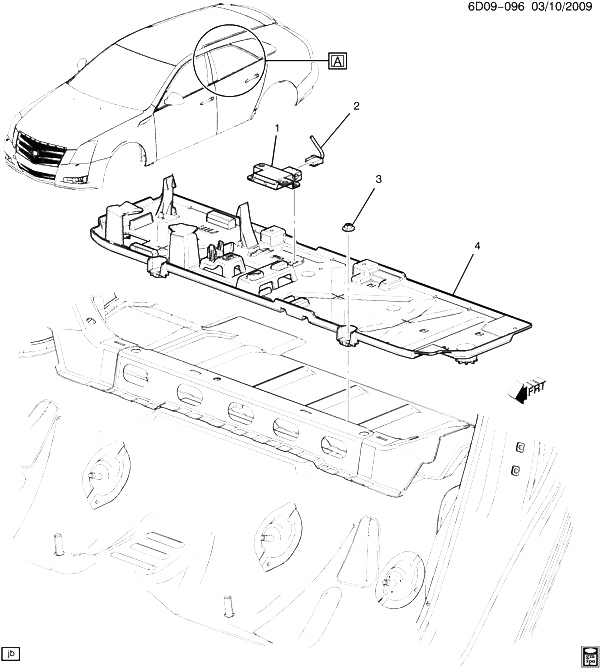

(6D09-096) 2011-2013 DM,DN,DR35 НАВИГАЦИОННАЯ СИСТЕМА/COMPASS MODULE CADILLAC - CTS WAGON 2011
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 20860277 | MODULE, ELEK COMPASS (ACDelco #20860277) | D35-47-69 | 2011-2013 | 01 |
| 002 | HARNESS, BODY WRG (SEE GROUP 13.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) | 2010-2013 | |||
| 003 | 11609411 | NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (M/FUNC ACSRY MDL CARR) | 2010-2013 | 04 | |
| 004 | 20955472 | CARRIER, M/FUNC ACSRY MDL (CENTER) | DM, DN35 | 2011-2013 | 01 |
| 004 | 20955472 | CARRIER, M/FUNC ACSRY MDL (CENTER) | DR35 (EXPORT) | 2011-2013 | 01 |
