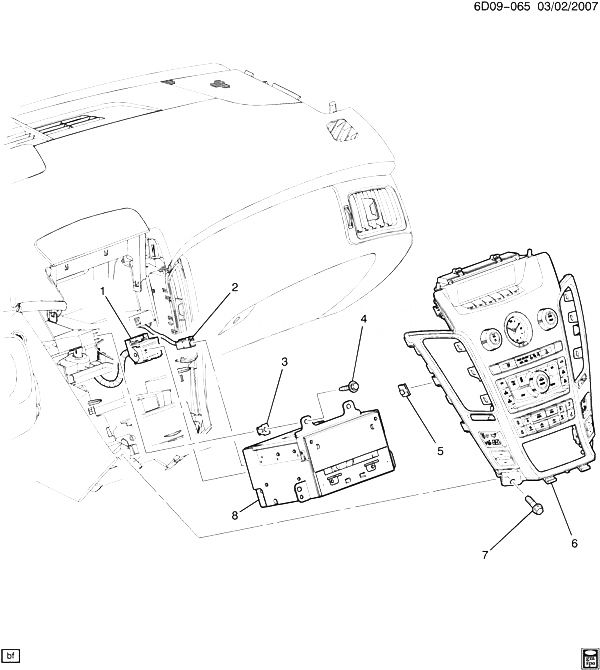

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 002 |
|
CABLE KIT, (SEE GROUP 09.000 CABLE KIT FOR DETAILED ILLUSTRATED VIEW) |
35 |
2010-2012 |
|
| 003 |
11515638 |
NUT, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (I/P) |
|
2010-2013 |
19 |
| 004 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RDO) |
|
2010-2013 |
04 |
| 005 |
|
CLIP, I/P CTR TR PNL (PART OF 6) |
|
2011-2013 |
|
| 006 |
|
CONTROL, AM/FM STEREO CLK CD PLYR RDO (INCLS 5) (SEE GROUP 10.000 INSTRUMENT PANEL/CENTER CONTROL FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 007 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RDO CONT) |
|
2010-2013 |
02 |
| 008 |
20857842 |
RADIO, AM/FM STEREO AUDIO DISC PLYR MP3 PLYR (ACDelco #20857842) |
D35-47-69 (U2R) (EXC U2K) |
2011-2011 |
01 |
| 008 |
20953629 |
RADIO, AM/FM STEREO AUDIO DISC PLYR MP3 PLYR (ACDelco #20953629) |
D35-47-69 (U2K, U2R) |
2011-2013 |
01 |
| 008 |
20953630 |
RADIO, AM/FM STEREO AUDIO DISC PLYR MP3 PLYR (ACDelco #20953630) |
D35-47-69 (U2T) |
2011-2013 |
01 |
