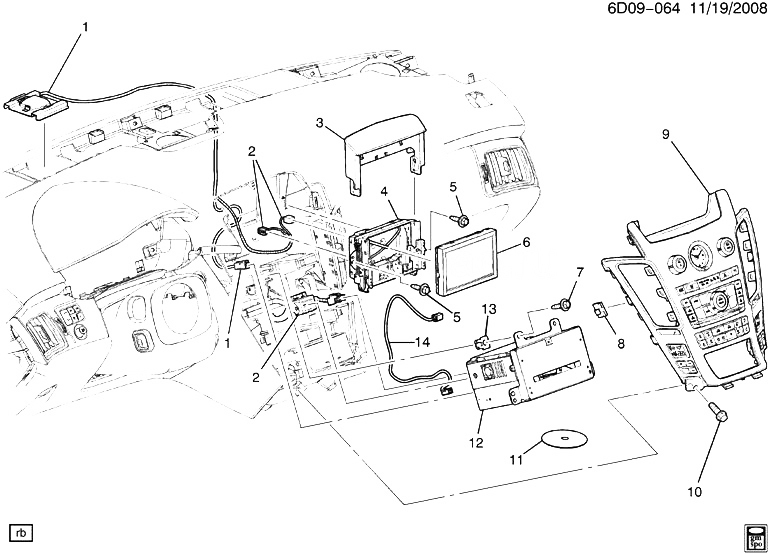

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15226445 |
ANTENNA, ELEK NAVIGATION (ACDelco #15226445) |
D35-47-69 (UAV, U2X, U2Y) |
2011-2013 |
01 |
| 002 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2011-2013 |
|
| 003 |
25942001 |
COVER, NAVN INFO DISPLAY OPG (COCOA) |
D (UAV, U2X, U2Y, 4AC) |
2010-2013 |
01 |
| 003 |
25942000 |
COVER, NAVN INFO DISPLAY OPG (EBONY) |
D (UAV, U2X, U2Y, 4AL, 4AM, 4AR, 4BZ) |
2011-2013 |
01 |
| 004 |
|
ACTUATOR, RDO VIDEO AUDIO PLYRNAVN INFO DISPLAY (PART OF 6) |
|
2011-2013 |
|
| 005 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (VIDEO DISPLAY) |
|
2010-2013 |
03 |
| 006 |
22809317 |
DISPLAY, RDO VIDEO AUDIO PLYR NAVN INFO (INCLS 4) (ACDelco #22809317) |
D (UAV, U2X, U2Y) |
2010-2013 |
01 |
| 007 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RDO) |
|
2010-2013 |
04 |
| 008 |
|
CLIP, I/P CTR TR PNL (PART OF 9) |
|
2011-2013 |
|
| 009 |
|
CONTROL, AM/FM STEREO CLK CD PLYR RDO (INCLS 8) (SEE GROUP 10.000 INSTRUMENT PANEL/CENTER CONTROL FOR DETAILED ILLUSTRATED VIEW) (EBONY) |
|
2010-2013 |
|
| 010 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RDO CONT) |
|
2010-2013 |
02 |
| 011 |
|
DISC PKG, NAVN MAP (TO ORDER DISCS, CONTACT GM NAVIGATION DISC CENTER) |
|
2011-2013 |
|
| 012 |
20904440 |
RADIO, AM/FM STEREO VIDEO DISC PLYR NAVNMP3HARD DR (ACDelco #20904440) (LABELED 20904440) |
D35-47-69 (U2X) |
2011-2011 |
01 |
| 012 |
22790297 |
RADIO, RECEIVER NAV (ACDelco #22790297) (LABELED 20904440) |
D35-47-69 (U2X) |
2011-2011 |
01 |
| 012 |
22790325 |
RADIO, RECEIVER NAV (ACDelco #22790325) (LABELED 22790325) |
D35-47-69 (UAV) |
2011-2011 |
01 |
| 012 |
22868359 |
RADIO, AM/FM STEREO VIDEO DISC PLYR NAVNMP3HARD DR (ACDelco #22868359) |
D35-47-69 (U2Y) (EXC FCN, UL8) |
2011-2011 |
01 |
| 012 |
22853813 |
RADIO, RECEIVER NAV (ACDelco #22853813) |
DM, DN35-47-69 (UAV) |
2011-2013 |
01 |
| 012 |
22811001 |
RADIO, RECEIVER NAV (ACDelco #22811001) (LABELED 20904440) |
D35-47-69 (U2X) |
2011-2011 |
01 |
| 012 |
22854717 |
RADIO, RECEIVER NAV (ACDelco #22854717) |
DM, DN (UL8, U2Y) |
2011-2012 |
01 |
| 012 |
22810971 |
RADIO, RECEIVER NAV (ACDelco #22810971) |
D35 (FCN, U2Y, UL1) (EXPORT) |
2011-2011 |
01 |
| 012 |
22854717 |
RADIO, RECEIVER NAV (ACDelco #22854717) |
DR35-69 (UL8, U2Y) (EXPORT) |
2011-2012 |
01 |
| 012 |
22853813 |
RADIO, RECEIVER NAV (ACDelco #22853813) |
DR35-69 (UAV) (EXPORT) |
2011-2013 |
01 |
| 012 |
22811005 |
RADIO, AM/FM STEREO VIDEO DISC PLYR NAVNMP3HARD DR (ACDelco #22811005) |
D35-47-69 (U2Y) (EXC FCN, UL8) |
2011-2011 |
01 |
| 013 |
11518121 |
NUT, U, M6X1, MULTI THD, .5-4.0 THK PNL (I/P) |
|
2010-2013 |
19 |
| 014 |
20799666 |
HARNESS, NAVIGATION WRG |
D35-47-69 |
2011-2012 |
01 |
