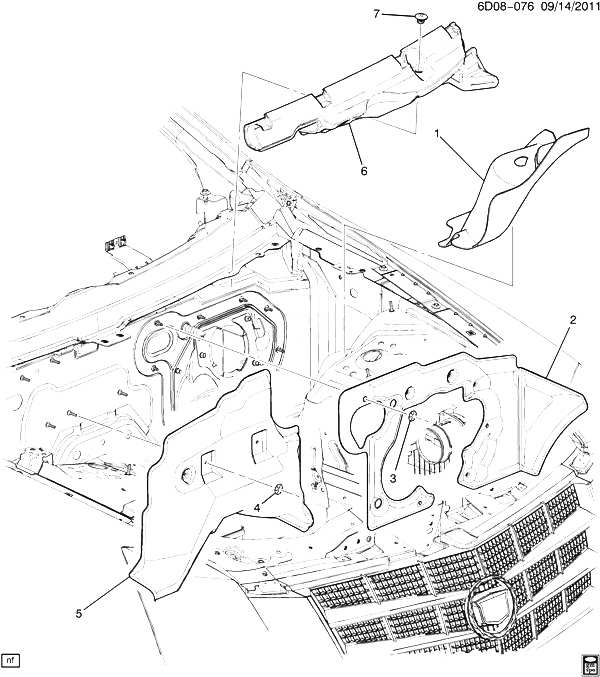

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15250705 |
INSULATOR, FRT W/H PNL |
DM |
2010-2013 |
01 |
| 002 |
22782670 |
INSULATOR, DA PNL FRT (MOD PLATE ENGINE SIDE) |
DM |
2010-2011 |
01 |
| 003 |
11588441 |
NUT, STAMP SPECIAL BOLT RETAINER, 24.05X17.42X2.5, SAE 1050 SPR STL, GMW3359 (DA PNL INSL) (PUSH NUT) |
|
2010-2013 |
02 |
| 004 |
11588441 |
NUT, STAMP SPECIAL BOLT RETAINER, 24.05X17.42X2.5, SAE 1050 SPR STL, GMW3359 (DA PNL FRT INSL (PUSH ON)) (PUSH NUT) |
|
2010-2013 |
02 |
| 005 |
25866507 |
INSULATOR, DA PNL (EXTERIOR SND) |
DM |
2010-2011 |
01 |
| 006 |
22782671 |
INSULATOR, DA PNL UPR (INCLS 7) (ENGINE SIDE PLENUM UPR) |
DM |
2010-2011 |
01 |
| 007 |
15056810 |
RETAINER, DA PNL UPR INSL (PART OF 6) (18.8MM) (7.831) |
DM |
2010-2011 |
01 |
