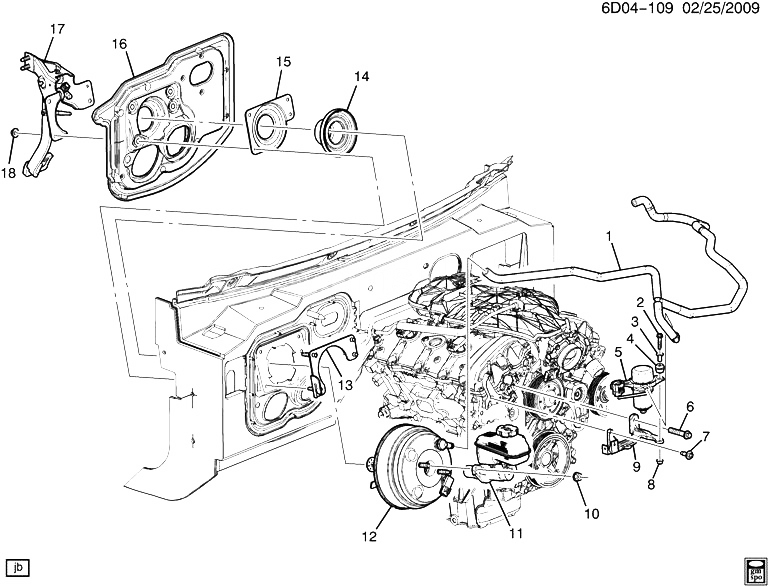

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25920529 |
HOSE, P/B BOOS VAC |
DR (LF1, LLT) (EXPORT) |
2010-2011 |
01 |
| 002 |
11589303 |
BOLT, HFH, M6X1X38, 30 THD, 14.2 OD, 8.8 STL, GMW3359, M-PT (P/B BOOS PUMP) |
|
2010-2013 |
02 |
| 003 |
|
INSULATOR, P/B BOOS PUMP (PART OF 5) |
|
2011-2011 |
|
| 004 |
|
SPACER, P/B BOOS PUMP (PART OF 5) |
|
2011-2011 |
|
| 005 |
20804130 |
PUMP, P/B BOOS AUX (INCLS 3, 4) (ACDelco #20804130) |
D |
2010-2011 |
01 |
| 006 |
89060205 |
BOLT, P/B BOOS PUMP (M12X1.75X68.5, 20THD) (5.812) |
DR35-69 (LF1, LLT) (EXPORT) |
2010-2011 |
01 |
| 007 |
11609989 |
BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (P/B BOOS PUMP) |
|
2010-2013 |
01 |
| 008 |
11516075 |
NUT, HFH SELF LK, M6X1, 7.7THK, 14.2 O.D., 9, PZOR (P/B BOOS PUMP) |
|
2010-2013 |
02 |
| 009 |
25920516 |
BRACKET, P/B BOOS PUMP |
DR (LF1, LLT) (EXPORT) |
2010-2011 |
01 |
| 010 |
11609949 |
NUT, HEX PRVL TORQ, W/NYLON WA INSERT, M10X1.5X11.7, ZC (BRK M/CYL) |
|
2010-2013 |
02 |
| 011 |
25847704 |
CYLINDER, BRK MAS (SEE GROUP 04.000 BRAKE MASTER CYLINDER FOR DETAILED ILLUSTRATED VIEW) |
DR (EXPORT) |
2010-2011 |
01 |
| 012 |
20800051 |
BOOSTER, P/B (SEE GROUP 04.000 BRAKE BOOSTER FOR DETAILED ILLUSTRATED VIEW) |
DR (LF1, LLT) (EXPORT) |
2010-2011 |
01 |
| 013 |
25690107 |
BRACKET, BRK PED BRKT |
DR35-69 (EXPORT) |
2010-2013 |
01 |
| 014 |
15849744 |
BOOT, BRK PED PUSH ROD |
DR (EXPORT) |
2010-2013 |
01 |
| 015 |
25697462 |
RETAINER, BRK PED PUSH ROD BOOT |
DR (EXPORT) |
2010-2013 |
01 |
| 016 |
20782812 |
BARRIER, BRK PED BRKT SND |
DR (LF1, LLT, MYA, MYB, MX0) (EXPORT) |
2010-2011 |
01 |
| 017 |
|
PEDAL, BRK (W/BRKT) (SEE GROUP 04.000 BRAKE PEDAL FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 018 |
11514519 |
NUT, HEX W/23.75 OD CON WA, M8X1.25, 7.32THK, 9, PZOR (BRK PED BRKT) |
|
2010-2013 |
06 |
