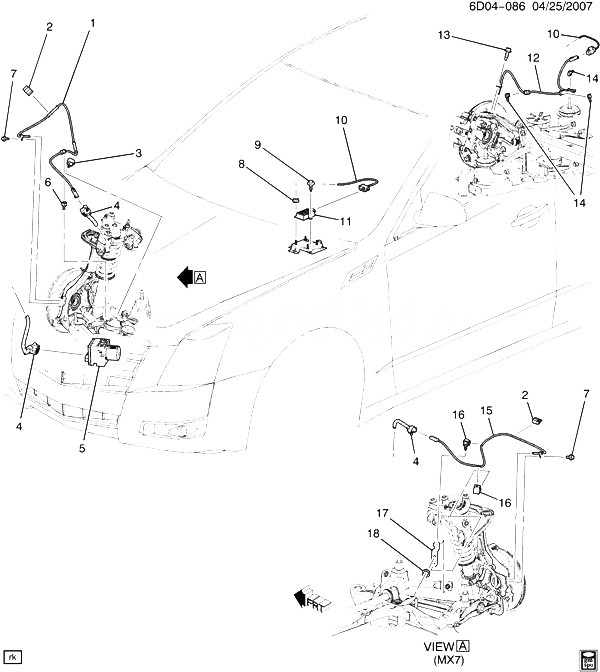

(6D04-086) 2011 DM,DN,DR35 ЭЛЕКТРИЧЕСКАЯ СИСТЕМА ТОРМОЗОВ/АБС CADILLAC - CTS WAGON 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 22897413 SENSOR, FRT WHL SPD (INCLS 2, 3, 6) (ACDelco #22897413) DM (MN6, MX0) 2010-2011 02
001 22897413 SENSOR, FRT WHL SPD (INCLS 2, 3, 6) (ACDelco #22897413) DN (MN6, MX0) 2011-2011 02
001 22897413 SENSOR, FRT WHL SPD (INCLS 2, 3, 6) (ACDelco #22897413) DR (MN6, MX0) (EXPORT) 2010-2011 02
002 15158259 CLIP, WHL SPD SEN WIRE (PART OF 1, 15) (12.0MM HOLE) (HOLDS (1)11MM GROMMET, PRONG FITS 18X6 SLOT IN 2.25 THK PNL) DM 2010-2011 01
002 15158259 CLIP, WHL SPD SEN WIRE (PART OF 1, 15) (12.0MM HOLE) (HOLDS (1)11MM GROMMET, PRONG FITS 18X6 SLOT IN 2.25 THK PNL) DR 2010-2011 01
002 15158259 CLIP, WHL SPD SEN WIRE (PART OF 1, 15) (12.0MM HOLE) (HOLDS (1)11MM GROMMET, PRONG FITS 18X6 SLOT IN 2.25 THK PNL) DN 2010-2011 01
003 15158261 CLIP, WHL SPD SEN WIRE (PART OF 1) (HOLDS (1)10MM GROMMET, PRONG FITS 18X2.5 SLOT IN A 3 THK PNL) DM 2010-2011 01
003 15158261 CLIP, WHL SPD SEN WIRE (PART OF 1) (HOLDS (1)10MM GROMMET, PRONG FITS 18X2.5 SLOT IN A 3 THK PNL) DN 2010-2011 01
003 15158261 CLIP, WHL SPD SEN WIRE (PART OF 1) (HOLDS (1)10MM GROMMET, PRONG FITS 18X2.5 SLOT IN A 3 THK PNL) DR 2010-2011 01
004 HARNESS, ENG WRG (SEE GROUP 02.000 WIRING HARNESS/ENGINE FOR DETAILED ILLUSTRATED VIEW) 2010-2011
005 VALVE, BRK PRESS MOD (W/ELEK BRK TRACT CONT MDL) (SEE GROUP 04.000 BRAKE CONTROL MODULE FOR DETAILED ILLUSTRATED VIEW) 2010-2011
006 15715954 CLIP, WHL SPD SEN WIRE (PART OF 1) (TREE FITS 6.5 HOLE) (HOLDS (1) 10.5MM GROMMET ROUTING (1) 6.35 SPD SEN CBL) DM 2010-2011 03
006 15715954 CLIP, WHL SPD SEN WIRE (PART OF 1) (TREE FITS 6.5 HOLE) (HOLDS (1) 10.5MM GROMMET ROUTING (1) 6.35 SPD SEN CBL) DN 2010-2011 03
006 15715954 CLIP, WHL SPD SEN WIRE (PART OF 1) (TREE FITS 6.5 HOLE) (HOLDS (1) 10.5MM GROMMET ROUTING (1) 6.35 SPD SEN CBL) DR 2010-2011 03
007 11516521 BOLT, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (FRT WHL SPD SEN) 2010-2011 02
008 03530297 NUT, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (VEH YAW SEN LATL ACCLRM) 2010-2011 02
009 11609989 BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (VEH YAW SEN LATL ACCLRM) 2010-2011 01
010 HARNESS, BODY WRG (SEE GROUP 02.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) 2010-2011
011 20866679 SENSOR, VEH YAW (W/VEH LATL ACCLRM) DM35-69 2010-2011 01
011 20866679 SENSOR, VEH YAW (W/VEH LATL ACCLRM) DN 2011-2011 01
011 20866679 SENSOR, VEH YAW (W/VEH LATL ACCLRM) DR35-69 (EXPORT) 2010-2011 01
012 25996838 SENSOR, RR WHL SPD (INCLS 14) (ACDelco #25996838) DM 2010-2011 02
012 25996838 SENSOR, RR WHL SPD (INCLS 14) (ACDelco #25996838) DN 2011-2011 02
012 25996838 SENSOR, RR WHL SPD (INCLS 14) (ACDelco #25996838) DR (EXPORT) 2010-2011 02
013 11516521 BOLT, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (RR WHL SPD SEN) 2010-2011 02
014 10317605 CLIP, WHL SPD SEN WIRE (PART OF 12) (6.8MM HOLE) (9.242) DM 2010-2011 03
014 10317605 CLIP, WHL SPD SEN WIRE (PART OF 12) (6.8MM HOLE) (9.242) DN 2010-2011 03
014 10317605 CLIP, WHL SPD SEN WIRE (PART OF 12) (6.8MM HOLE) (9.242) DR 2010-2011 03
015 22897414 SENSOR, FRT WHL SPD (INCLS 2, 16, 17) (ACDelco #22897414) DM (MX7) 2010-2011 02
016 10317605 CLIP, WHL SPD SEN WIRE (PART OF 15) (6.8MM HOLE) (9.242) DM 2010-2011 03
016 10317605 CLIP, WHL SPD SEN WIRE (PART OF 15) (6.8MM HOLE) (9.242) DN 2010-2011 03
016 10317605 CLIP, WHL SPD SEN WIRE (PART OF 15) (6.8MM HOLE) (9.242) DR 2010-2011 03
017 25820819 BRACKET, FRT WHL SPD SEN WIRE (PART OF 15) DM (MX7) 2010-2011 01
018 11570352 NUT, HEX JAM M12X1.75X6, GM510 (5) STL, GMW14100. (WHL SPD SEN BRKT) 2010-2011 02
