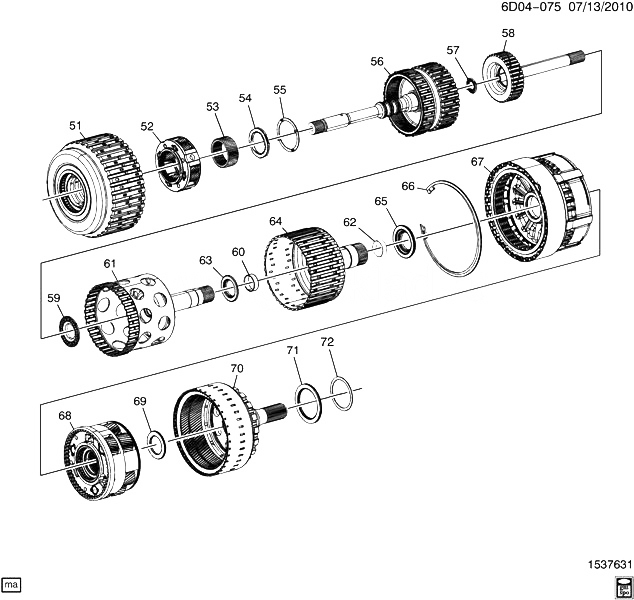

(6D04-075) 2010-2011 D АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (MYB) (6L50) CLUTCH ASSEMBLIES RELATED PARTS CADILLAC - CTS WAGON 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
051 CLUTCH, 1-2-3-4 3-5 REV (SEE GROUP 04.000 AUTOMATIC TRANSMISSION 1-2-3-4 3-5 REVERSE CLUTCH ASSEMBLY FOR DETAILED ILLUSTRATED VIEW) 2010-2011
052 24225602 CARRIER, INPUT (ACDelco #24225602) DM (MYB) 2010-2011 01
052 24225602 CARRIER, INPUT (ACDelco #24225602) DR (MYB) (EXPORT) 2010-2011 01
053 24225289 GEAR, INPUT SUN (ACDelco #24225289) DM (MYB) 2010-2011 01
053 24225289 GEAR, INPUT SUN (ACDelco #24225289) DR (MYB) (EXPORT) 2010-2011 01
054 24224405 BEARING, INPUT SUN GR THR (ACDelco #24224405) D (MYB) 2010-2011 01
055 24232409 WASHER, INPUT SUN GR THR (ACDelco #24232409) DM (MYB) 2010-2011 01
055 24232409 WASHER, INPUT SUN GR THR (ACDelco #24232409) DR (MYB) (EXPORT) 2010-2011 01
056 CLUTCH, 4-5-6 (W/ TURB SHF) (SEE GROUP 04.000 AUTOMATIC TRANSMISSION 4-5-6 CLUTCH ASSEMBLY TURBINE SHAFT FOR DETAILED ILLUSTRATED VIEW) 2010-2011
057 24238905 BEARING, TURB SHFT THR (ACDelco #24238905) DM (MYB) 2010-2011 01
057 24238905 BEARING, TURB SHFT THR (ACDelco #24238905) DR (MYB) (EXPORT) 2010-2011 01
058 HUB, 4-5-6 CLU (W/ OUTPUT CARR SHF DPNR) (SEE GROUP 04.000 AUTOMATIC TRANSMISSION CLUTCH HUB ASSEMBLY FOR DETAILED ILLUSTRATED VIEW) 2010-2011
059 24233732 BEARING, 4-5-6 CLU HUB THR (ACDelco #24233732) DM (MYB) 2010-2011 01
059 24233732 BEARING, 4-5-6 CLU HUB THR (ACDelco #24233732) DR (MYB) (EXPORT) 2010-2011 01
060 BUSHING, OUTPUT CARR INR SUN GR SHF (PART OF 64) 2010-2011
061 24252734 HUB, 1-2-3-4 CLU (W/OUTPUT CARR INR SUN GR SHF) (ACDelco #24252734) DM35-47-69 (MYB) 2011-2011 01
061 24252734 HUB, 1-2-3-4 CLU (W/OUTPUT CARR INR SUN GR SHF) (ACDelco #24252734) DM (MYB) 2010-2011 01
061 24252734 HUB, 1-2-3-4 CLU (W/OUTPUT CARR INR SUN GR SHF) (ACDelco #24252734) DR35-69 (MYB) (EXPORT) 2010-2011 01
061 24252734 HUB, 1-2-3-4 CLU (W/OUTPUT CARR INR SUN GR SHF) (ACDelco #24252734) DR (MYB) (EXPORT) 2010-2011 01
062 BUSHING, OUTPUT CARR INR SUN GR SHF (PART OF 64) 2010-2011
063 24237209 BEARING, 1-2-3-4 CLU HUB THR (ACDelco #24237209) DM (MYB) 2010-2011 01
063 24237209 BEARING, 1-2-3-4 CLU HUB THR (ACDelco #24237209) DR (MYB) (EXPORT) 2010-2011 01
064 24252735 HUB, 2-6 3-5/REV CLU (W/ OUTPUT CARR OTR SUN GR SHF) (INCLS 60, 62) (ACDelco #24252735) D (MYB) 2010-2011 01
065 24224164 BEARING, 2-6 3-5/REV CLU HUB THR (ACDelco #24224164) DM (MYB) 2010-2011 01
065 24224164 BEARING, 2-6 3-5/REV CLU HUB THR (ACDelco #24224164) DR (MYB) (EXPORT) 2010-2011 01
066 24225512 RING, CTR SUPT RET (ACDelco #24225512) DM (MYB) 2010-2011 01
066 24225512 RING, CTR SUPT RET (ACDelco #24225512) DR (MYB) (EXPORT) 2010-2011 01
067 24257088 SUPPORT, CTR (ACDelco #24257088) DM35 (MYB) 2010-2011 01
068 CARRIER, OUTPUT (SEE GROUP 04.000 AUTOMATIC TRANSMISSION OUTPUT CARRIER ASSEMBLY FOR DETAILED ILLUSTRATED VIEW) 2010-2011
069 24225486 BEARING, OUTPUT CARR THR (ACDelco #24225486) DM (MYB) 2010-2011 01
069 24225486 BEARING, OUTPUT CARR THR (ACDelco #24225486) DR (MYB) (EXPORT) 2010-2011 01
070 SHAFT, OUTPUT (SEE GROUP 04.000 AUTOMATIC TRANSMISSION OUTPUT SHAFT ASSEMBLY FOR DETAILED ILLUSTRATED VIEW) 2010-2011
071 24224668 BEARING, OUTPUT SHF THR (ACDelco #24224668) DM (MYB) 2010-2011 01
071 24224668 BEARING, OUTPUT SHF THR (ACDelco #24224668) DR (MYB) (EXPORT) 2010-2011 01
072 24251228 SEAL, A/TRNS CASE (O RING) DM 2010-2011 01
072 24251228 SEAL, A/TRNS CASE (O RING) DR (EXPORT) 2010-2011 01
