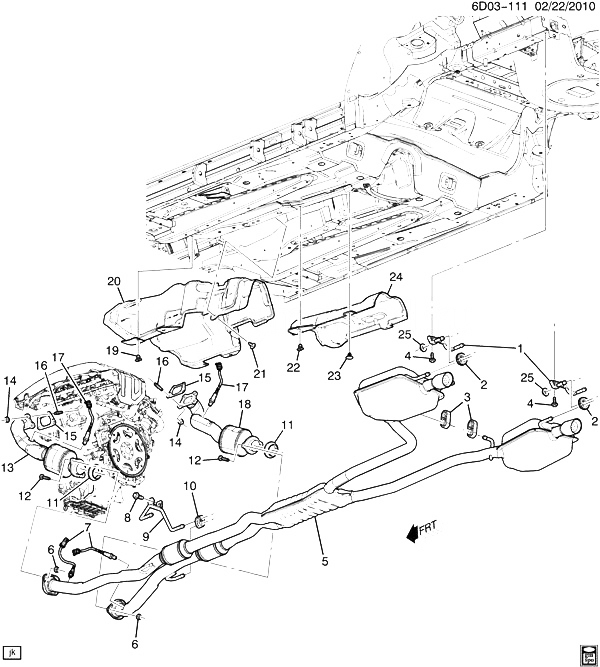

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25866387 |
BRACKET, EXH TAIL PIPE HNGR (INCLS 2) |
DM35 |
2011-2011 |
02 |
| 002 |
20857446 |
INSULATOR, EXH MUFF RR HNGR (PART OF 1) |
DM |
2011-2011 |
02 |
| 003 |
25918352 |
INSULATOR, EXH MUFF HNGR BRKT (PART OF 5) (WHEN REPLACING MUST REPL BOTH LHRH FRT MUFF INSULATORS) |
DM |
2011-2011 |
02 |
| 004 |
11589407 |
BOLT, HWH, M8X1.25X35, 23.5 THD, 24 OD, 10.9, GMW3359, M-PT. (EXH MUFF RR HNGR) |
|
2011-2011 |
04 |
| 005 |
20896635 |
MUFFLER, EXH (W/EXH TAIL PIPE 3 WAY CTLTC CONV) (INCLS 3) (W/FORE-AFT HANGER) |
DM35 (LF1, MX7) |
2011-2011 |
01 |
| 006 |
11609746 |
NUT, HFH, M8X1.25, 8.9THK, 17.6 O.D., 10 STL, GMW3200, PREV TORQUE (EXH MUFF) |
|
2011-2011 |
04 |
| 007 |
12616202 |
SENSOR, HTD OXY (POSN 2) (ACDelco #213-4575) |
DM (LF1, MYA) |
2011-2011 |
01 |
| 008 |
11515776 |
BOLT, HFH, M12X1.75X35, 31 THD, 26.6 OD, 10.9 MAT, 7114M FIN, MACH (EXH PIPE FRT HNGR BRKT) |
|
2011-2011 |
02 |
| 009 |
20895810 |
BRACKET, EXH PIPE FRT HNGR (INCLS 10) (W/FORE-AFT HANGER) |
DM (LF1, JJB, MX7) |
2011-2011 |
01 |
| 010 |
25924159 |
INSULATOR, EXH PIPE HNGR (PART OF 9) (61.0X48.8X31.0) (SINGLE) |
D |
2011-2011 |
02 |
| 011 |
25924158 |
SEAL, CTLTC CONV (PART OF 13, 18) |
DM (LF1, JJB) |
2011-2011 |
01 |
| 012 |
11609596 |
STUD, CTLTC CONV (PART OF 13, 18) (M8X1.25X50, 18 OD) |
DM (LF1, JJB) |
2011-2011 |
02 |
| 012 |
11610977 |
STUD, CTLTC CONV (PART OF 13, 18) (-FLANGE, M10X1.5X26, M10X1.5X20) (3.613) |
DM (LF1, JJB) |
2011-2011 |
08 |
| 013 |
25799336 |
CONVERTER, 3WAY CTLTC (W/EXH RR MANIF PIPE) (INCLS 11, 12) |
DM (LF1, JJB) |
2011-2011 |
01 |
| 014 |
11517996 |
NUT, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (CTLTC CONV) (ACDelco #11517996) |
|
2011-2011 |
08 |
| 015 |
20893953 |
GASKET, EXH PIPE (W/4 MTG HOLES) |
DM |
2011-2011 |
02 |
| 016 |
11609596 |
STUD, CTLTC CONV (M8X1.25X50, 18 OD) |
DM (LF1, JJB) |
2011-2011 |
02 |
| 016 |
11610977 |
STUD, CTLTC CONV (-FLANGE, M10X1.5X26, M10X1.5X20) (3.613) |
DM (LF1, JJB) |
2011-2011 |
08 |
| 017 |
12616201 |
SENSOR, HTD OXY (POSN 1) (ACDelco #213-4574) |
DM35-69 (LF1, JJB) |
2011-2011 |
02 |
| 018 |
25799335 |
CONVERTER, 3WAY CTLTC (W/EXH RR MANIF PIPE) (INCLS 11, 12) |
DM (LF1, JJB) |
2011-2011 |
01 |
| 019 |
11570585 |
RETAINER, EXH MANIF PIPE HNGR INSL (PART OF 20) |
D |
2011-2011 |
04 |
| 020 |
20987571 |
INSULATOR, EXH H/SHLD (INCLS 19) |
DM (MX7) |
2011-2011 |
01 |
| 021 |
21030249 |
RETAINER, EXPAN, 21 LG, 20. OD, 8.0 HOLE, 3.0-5.0 PNL, NYLON 6/6, BLK (EXH MANIF PIPE HNGR INSL) (8.950) (PUSH IN) |
|
2011-2011 |
02 |
| 022 |
11570586 |
RETAINER, EXH H/SHLD (PART OF 24) (PUSH IN 13 MM HOLE W/ 20 X 36 MM HEAD) |
DM |
2011-2011 |
02 |
| 023 |
24501057 |
RETAINER, EXH H/SHLD (PART OF 24) (PUSH-IN) (6.9 HOLE DIA) (19MM LG) (1.840) |
DM |
2011-2011 |
02 |
| 024 |
20971705 |
INSULATOR, EXH H/SHLD (AT INTER FLR PNL) (INCLS 22, 23) (FOR VEH BUILT ON AFTER 09/15/10) (1ST DES SEE 25964069) |
DM (2ND DES) |
2011-2011 |
01 |
| 024 |
25964069 |
INSULATOR, EXH H/SHLD (AT INTER FLR PNL) (INCLS 22, 23) (FOR VEH BUILT PRIOR TO 09/15/10) (2ND DES SEE 20971705) |
DM (1ST DES) |
2011-2011 |
01 |
| 025 |
11516650 |
NUT, HEX W/CON WA, M8X1.25, 28 O.D., 7.5 THK, 9, GM7111M. (RR BPR ENGY ABS) |
|
2011-2011 |
06 |
