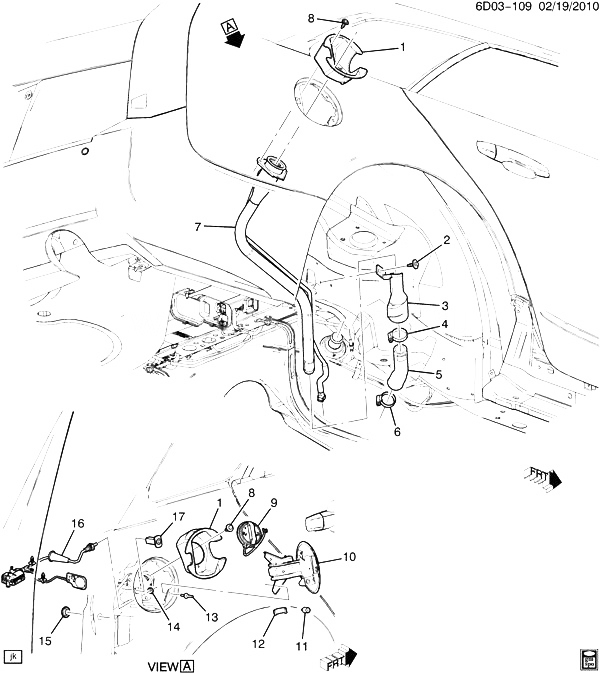

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25954934 |
HOUSING, F/TNK FIL PIPE |
DM, DN35-69 |
2011-2013 |
01 |
| 001 |
25954934 |
HOUSING, F/TNK FIL PIPE |
DR (EXPORT) |
2011-2013 |
01 |
| 002 |
11588928 |
BOLT, HEX, W/FL WA, M6X1X25, 14 THD, 24 O.D., DOG-PT, STL, GMW3200 (F/TNK FIL PIPE BRKT) |
|
2011-2013 |
01 |
| 003 |
20911533 |
SHIELD, F/TNK FIL PIPE |
D35-47-69 |
2011-2013 |
01 |
| 004 |
11610236 |
CLAMP, TYPE F WORM GEAR 20-1/4 HEX HD SAE 302 STL GM3044 9 (PART OF 5) |
|
2011-2013 |
01 |
| 005 |
15925742 |
HOSE, F/TNK FIL (INCLS 4) |
DM (LF1, LLT) |
2011-2011 |
01 |
| 005 |
15925742 |
HOSE, F/TNK FIL (INCLS 4) |
DN (LSA) |
2011-2013 |
01 |
| 005 |
15925742 |
HOSE, F/TNK FIL (INCLS 4) |
DR (LF1, LLT) (EXPORT) |
2011-2011 |
01 |
| 006 |
11610236 |
CLAMP, TYPE F WORM GEAR 20-1/4 HEX HD SAE 302 STL GM3044 9 (F/TNK FIL HOSE) |
DN (LSA) |
2011-2013 |
01 |
| 006 |
20768688 |
CLAMP, F/TNK FIL HOSE |
DM (LF1, LLT) |
2011-2011 |
01 |
| 006 |
20768688 |
CLAMP, F/TNK FIL HOSE |
DR (LF1, LLT) |
2011-2011 |
01 |
| 007 |
20789050 |
PIPE, F/TNK FIL |
D35-69 |
2011-2011 |
01 |
| 008 |
11509374 |
BOLT, SCR HEX W/FL WA, SELF TAP, 4.2X1.41X16, 12.5 O.D. (F/TNK FIL PIPE) |
|
2011-2013 |
03 |
| 009 |
15832215 |
CAP, F/TNK FIL (INCLUDES TETHER) (ACDelco #GT303) |
D |
2011-2011 |
01 |
| 010 |
25966969 |
DOOR, F/TNK FIL (INCLS 11, 12) |
DM35 |
2011-2013 |
01 |
| 010 |
25966969 |
DOOR, F/TNK FIL (INCLS 11, 12) |
DN35 |
2011-2013 |
01 |
| 010 |
25966969 |
DOOR, F/TNK FIL (INCLS 11, 12) |
DR35-69 (EXPORT) |
2011-2013 |
01 |
| 011 |
89047657 |
BUMPER, F/TNK FIL DR (PART OF 10) (HINGE) |
D35 |
2011-2013 |
01 |
| 012 |
|
SPRING, F/TNK FIL DR (PART OF 10) |
|
2011-2013 |
|
| 013 |
11519023 |
RIVET, POP SHANK 0.256, LENGTH 0.643, 0.189-0.268 GRIP RANGE, 1033 STL, (F/TNK FIL DR) |
|
2011-2013 |
02 |
| 014 |
11589175 |
NUT, HEX, M8X1.25, 4 THK, GM510M, GMW3359, BLACK (F/TNK FIL DR LK ACTR) |
|
2011-2013 |
01 |
| 015 |
22653093 |
PLUG, F/TNK FIL DR LAT REL CBL HOLE (30.2 X 9.2 MM) (FITS 19.3MM DIA HOLE) (12.942) |
DM35-47-69 (EXC N08) |
2011-2013 |
01 |
| 016 |
25907014 |
ACTUATOR, F/TNK FIL DR LK |
D35-69 (N08) |
2011-2013 |
01 |
| 017 |
20912532 |
SPRING, F/TNK FIL DR (INCLS PLUNGER) |
DM, DN |
2011-2013 |
01 |
| 017 |
20912532 |
SPRING, F/TNK FIL DR (INCLS PLUNGER) |
DR (EXPORT) |
2011-2013 |
01 |
