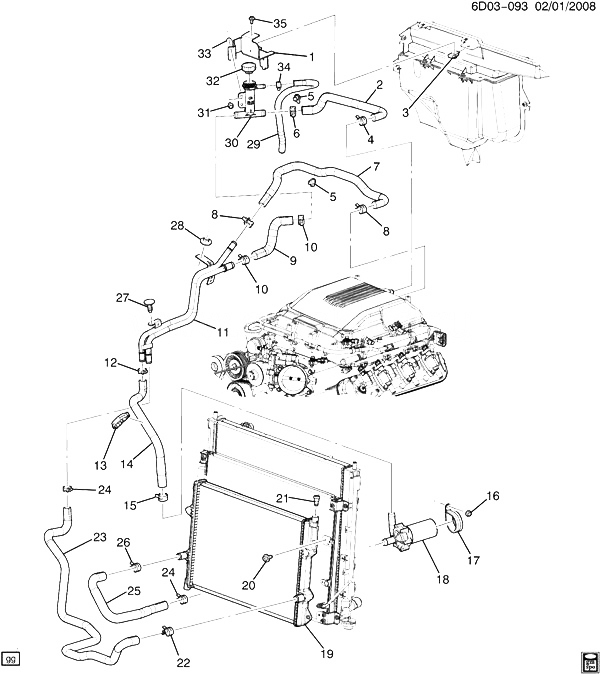

(6D03-093) 2011-2013 DN СИСТЕМА ОХЛАЖДЕНИЯ ТУРБОНАГНЕТАТЕЛЯ (LSA/6.2P) CADILLAC - CTS WAGON 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
022 11570871 CLAMP, SPRINGBAND, 23MM NOMINAL DIA, 12MM WIDTH, STEEL, GRAY ROBO. (CHRG AIR CLR COOL HOSE) 2011-2013 01
023 25888142 HOSE, CHRG AIR CLR COOL (APPROX STRAIGHT LENGTH 1200MM) DN (JJB) 2011-2013 01
024 11570616 CLAMP, SPRINGBAND, 27 NOMINAL DIA, 15 THK, STL, ROBO (CHRG AIR CLR COOL HOSE) 2011-2013 02
025 25888138 HOSE, CHRG AIR CLR COOL DN (JJB) 2011-2011 01
026 11570615 CLAMP, HOSE SPRINGBAND, 26 NOMINAL DIA, 15 THK, STL, ROBO (CHRG AIR CLR COOL PUMP) 2011-2013 01
027 01605396 RETAINER, PUSH-IN, FITS .250 HOLE, .92 LG.700-OD NYLON BLACK (PART OF 11) 2011-2013 01
028 25601643 NUT, HEX W/CON WA, M6X1X5.6, 24 OD, 9, ZF (8.917) 2011-2013 01
029 25888144 HOSE, CHRG AIR CLR COOL OVFL DN (JJB) 2011-2013 01
030 25884797 RESERVOIR, CHRG AIR CLR COOL DN 2011-2013 01
031 11561025 BOLT, HFH, M6X1X16, 13.5 THD, 14.2 OD, GMW25 STL, GMW3200, MACH, HDR-PT (CHRG AIR CLR BRKT) 2011-2013 02
032 15076936 CAP, CHRG AIR CLR COOL FIL (1.097) DN 2011-2013 01
033 11503747 NUT, M6X1 (CHRG AIR CLR BRKT) 2011-2013 02
034 11570870 CLAMP, CHRG AIR CLR COOL HOSE (8.948) DN (JJB) 2011-2013 01
035 11589038 BOLT, HEX HD W/CONWA, M6X1X19, 13.55 THD, 20 OD, 8.8, GMW4205 BLACK (CHRG AIR CLR COOL PIPE) 2011-2013 01
001 25888153 BRACKET, CHRG AIR CLR DN 2011-2013 01
002 25888141 HOSE, CHRG AIR CLR COOL (OUTLET) DN (JJB) 2011-2013 01
003 11517996 NUT, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (AIR INL HSG) (ACDelco #11517996) 2011-2013 02
004 11570816 CLAMP, HOSE SPRINGBAND, 23 NOMINAL DIA, 15 WIDTH, STEEL, GRAY ROBO. (CHRG AIR CLR COOL HOSE) 2011-2013 02
005 19130464 STRAP, TIE 0.38 WIDTH, BUNDLE DIA 1/16-1-3/4, 8.27 LENGTH, NYLON 6/6 FITS 0. (CHRG AIR CLR) 2011-2013 01
006 11570615 CLAMP, HOSE SPRINGBAND, 26 NOMINAL DIA, 15 THK, STL, ROBO (CHRG AIR CLR COOL HOSE) 2011-2013 01
007 25888140 HOSE, CHRG AIR CLR COOL (INLET) DN (JJB) 2011-2013 01
008 11570816 CLAMP, HOSE SPRINGBAND, 23 NOMINAL DIA, 15 WIDTH, STEEL, GRAY ROBO. (CHRG AIR CLR COOL HOSE) 2011-2013 03
009 25888139 HOSE, CHRG AIR CLR COOL DN (JJB) 2011-2013 01
010 11570870 CLAMP, CHRG AIR CLR COOL HOSE (8.948) DN 2011-2013 01
011 22785108 PIPE, CHRG AIR CLR COOL (INCLS 27) (USE ON VECICAHLES BUILT ON MARCH 14 AND AFTER, FOR 1ST DES SEE 25888 2230 FOR VEHICLES BUILT ON MARCH AND PIOR.) DN (2ND DES) 2011-2011 01
011 25888230 PIPE, CHRG AIR CLR COOL (INCLS 27) (USE ON VECICAHLES BUILT ON MARCH 13 AND PRIOR, FOR 2ND DES SEE 227851 08 FOR VEHICLES BUILT MARCH 14 AND AFTER.) DN (1ST DES) 2011-2011 01
012 11570615 CLAMP, HOSE SPRINGBAND, 26 NOMINAL DIA, 15 THK, STL, ROBO (CHRG AIR CLR COOL HOSE) 2011-2013 01
013 11570891 RETAINER, CHRG AIR CLR DN 2011-2013 01
014 25888143 HOSE, CHRG AIR CLR COOL (APPROX STRAIGHT LENGTH 400MM) DN (JJB) 2011-2013 01
015 11570871 CLAMP, SPRINGBAND, 23MM NOMINAL DIA, 12MM WIDTH, STEEL, GRAY ROBO. (CHRG AIR CLR COOL HOSE) 2011-2013 01
016 11514596 NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (CHRG AIR CLR BR) (8.915) (ACDelco #11514596) 2011-2013 02
017 15251728 CLAMP, CHRG AIR CLR COOL PUMP DN (JJB) 2011-2011 02
018 22718756 PUMP, CHRG AIR CLR COOL (LESS CLAMP) DN 2011-2013 01
019 25876663 RADIATOR, CHRG AIR CLR (INCLS 21) DN 2011-2013 01
020 11570323 BOLT, CHRG AIR CLR (M6X1X18, 13 THD) (1.277) DN (MG9, MYD) 2011-2013 04
021 89025034 PLUG, RAD DRN (PART OF 19) (3.358) DN 2011-2013 02
