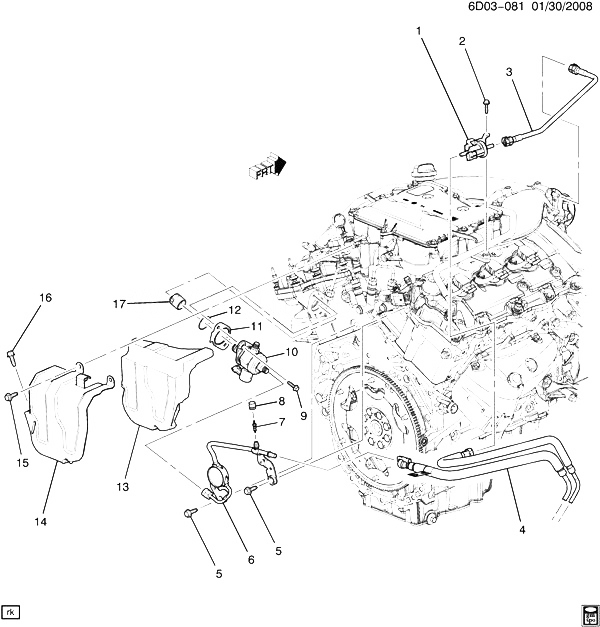

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12611801 |
VALVE, EVAP EMIS CNSTR PURGE SOL (ACDelco #214-1685) |
DM (LLT, MYB, JJB, MX0, MX7) |
2011-2011 |
01 |
| 001 |
12611801 |
VALVE, EVAP EMIS CNSTR PURGE SOL (ACDelco #214-1685) |
DM (LLT, MV7, JJB, MN6) |
2011-2011 |
01 |
| 001 |
12611801 |
VALVE, EVAP EMIS CNSTR PURGE SOL (ACDelco #214-1685) |
DR (LLT, MYB, JJB, MX0) (EXPORT) |
2010-2011 |
01 |
| 002 |
11588712 |
BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (EVAP EMIS CNSTR PURGE SOL VLV BRKT) |
|
2010-2011 |
01 |
| 003 |
12609510 |
TUBE, EVAP EMIS CNSTR PURGE |
DM (LLT, JJB) |
2010-2011 |
01 |
| 003 |
12609510 |
TUBE, EVAP EMIS CNSTR PURGE |
DR (LLT, JJB) (EXPORT) |
2010-2011 |
01 |
| 004 |
|
PIPE, BRK FUEL FEED EVAP EMIS (SEE GROUP 03.000 FUEL SUPPLY SYSTEM/PIPES FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2011 |
|
| 005 |
11515767 |
BOLT, HFH, M10X1.5X35, 32THD, 22.3 O.D., MACH, 10.9, 7114M (F/INJN FUEL RL BRKT) (T/W 12345493) |
|
2010-2011 |
02 |
| 006 |
12627255 |
PIPE, FUEL FEED (INCLS 7, 8) (TO ENG) (PART MUST BE REPLACED ONCE REMOVED) (INCLS DAMPENER) |
DM (LLT, MYB, JJB, MX7, MX0) |
2010-2011 |
01 |
| 006 |
12627255 |
PIPE, FUEL FEED (INCLS 7, 8) (TO ENG) (PART MUST BE REPLACED ONCE REMOVED) (INCLS DAMPENER) |
DM (LLT, MV7, JJB, MN6) |
2010-2011 |
01 |
| 006 |
12627255 |
PIPE, FUEL FEED (INCLS 7, 8) (TO ENG) (PART MUST BE REPLACED ONCE REMOVED) (INCLS DAMPENER) |
DR (LLT, MYB, JJB, MX0, MX7) |
2010-2011 |
01 |
| 007 |
12574525 |
VALVE, FUEL PRESS SERV (PART OF 6) (SCHRADER VALVE LESS CAP) (ACDelco #12574525) |
D |
2010-2011 |
01 |
| 008 |
25532662 |
CAP, FUEL PRESS SERV VLV (PART OF 6) (CAP FOR PRESSURE TEST SCHRADER VALVE) (3.163) (ACDelco #214-1044) |
D |
2010-2011 |
01 |
| 009 |
11562426 |
BOLT, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (PART OF 10) |
|
2010-2011 |
02 |
| 010 |
12634492 |
PUMP, FUEL (INCLS 9, 11, 12) (HIGH PRESSURE) (ACDelco #EP1031) |
D (LLT) |
2010-2011 |
01 |
| 011 |
12633917 |
GASKET, F/PMP BRKT (PART OF 10) |
D |
2010-2011 |
01 |
| 012 |
12600313 |
SEAL, F/PMP HSG (O RING) (PART OF 10) (ACDelco #G43) |
D (LLT) |
2010-2011 |
01 |
| 013 |
12630022 |
SHIELD, ENG RR NOISE |
DM (LLT) |
2010-2011 |
01 |
| 013 |
12630022 |
SHIELD, ENG RR NOISE |
DR (LLT) (EXPORT) |
2010-2011 |
01 |
| 014 |
12618248 |
SHIELD, FUEL PIPE |
D (LLT) |
2010-2011 |
01 |
| 015 |
11588723 |
BOLT, HFH, M8X1.25X25, 18 THD, 18 OD, 8.8 STL, GMW3359, M-PT (FUEL PIPE SHLD) |
|
2010-2011 |
02 |
| 016 |
11588712 |
BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (FUEL PIPE SHLD) |
|
2010-2011 |
01 |
| 017 |
12590679 |
FOLLOWER, VLV LFTR (FUEL PUMP) |
DM (LLT) |
2010-2011 |
01 |
| 017 |
12590679 |
FOLLOWER, VLV LFTR (FUEL PUMP) |
DR (LLT) (EXPORT) |
2010-2011 |
01 |
