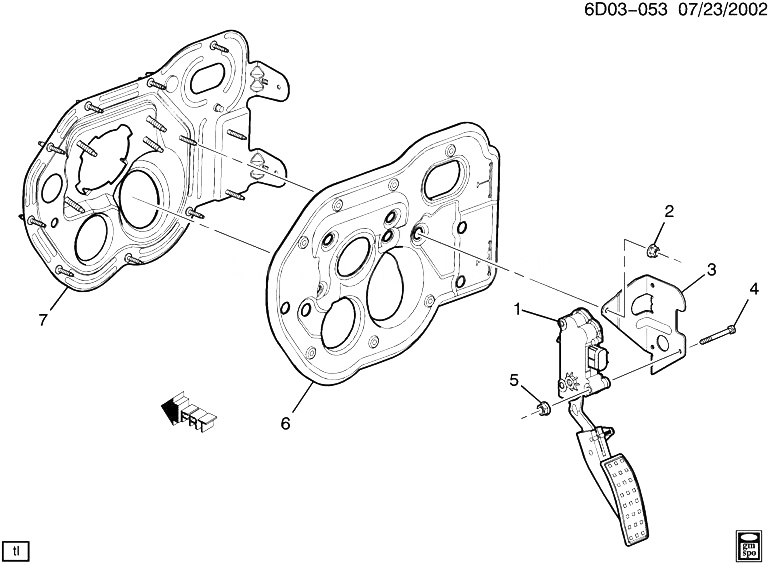

(6D03-053) 2011-2013 DM,DN УПРАВЛЕНИЕ АКСЕЛЕРАТОРОМ CADILLAC - CTS WAGON 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 10379039 PEDAL, ACCEL (INCLS 3-5) DM (MG9, MV7, AQ9, JJD) 2010-2011 01
001 10379038 PEDAL, ACCEL (INCLS 3-5) (INCLS POSN SENSOR) DM (MYA, MYB, MYD, AQ9) (EXC JF5) 2010-2011 01
001 25858066 PEDAL, ACCEL (INCLS 3-5) DM (MYB, MYA, JJD, W2E) 2010-2011 01
001 25858067 PEDAL, ACCEL (INCLS 3-5) DM (MN6) 2010-2013 01
001 10379038 PEDAL, ACCEL (INCLS 3-5) (INCLS POSN SENSOR) DN (MYA, MYB, MYD, AQ9) (EXC JF5) 2011-2011 01
001 10379039 PEDAL, ACCEL (INCLS 3-5) DN (MG9, MV7, AQ9, JJD) 2011-2011 01
001 25858067 PEDAL, ACCEL (INCLS 3-5) DN (MG9, JJD, W2E) 2011-2011 01
001 25858067 PEDAL, ACCEL (INCLS 3-5) DN (MV7, JJD, W2E) 2011-2011 01
001 25858067 PEDAL, ACCEL (INCLS 3-5) DM (MV7, JJD, W2E) 2011-2011 01
001 25858066 PEDAL, ACCEL (INCLS 3-5) DN (MYD, MYA) 2011-2011 01
002 03530297 NUT, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (ACCEL PED LVR) 2010-2013 03
003 BRACKET, ACCEL PED (PART OF 1) 2011-2013
004 BOLT, ACCEL PED LVR (PART OF 1) 2011-2013
005 NUT, ACCEL PED LVR (PART OF 1) 2011-2013
006 25913292 BARRIER, BRK PED BRKT SND DM (LF1, LLT, MYA, MYB, MX0, MX7) 2010-2011 01
006 25931380 BARRIER, BRK PED BRKT SND DM (MV7, MN6) 2010-2012 01
006 25913292 BARRIER, BRK PED BRKT SND DN (MYD, MX0) 2011-2013 01
006 25931380 BARRIER, BRK PED BRKT SND DN (MG9, MN6) 2011-2013 01
007 REINFORCEMENT, STRG COL SUPT BRKT 2011-2013
