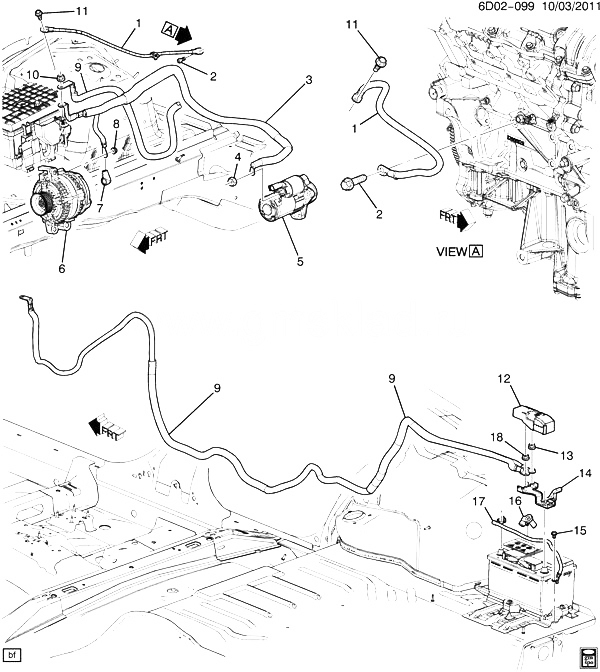

(6D02-099) 2010-2013 D35 ПРОВОДКА АККУМУЛЯТОРА CADILLAC - CTS WAGON 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25930330 CABLE, BAT NEG CBL EXTN (ACDelco #25930330) D35-47-69 (LF1, LLT, JJB) 2011-2011 01
002 11562004 BOLT, HEX W/FL WA, M10X1.5X30, 19 THD, 20 OD, 8.8, GMW3200, MACH, M-PT (BAT CBL TERM) 2010-2013 01
003 25941683 CABLE, GEN STRTR (INCLS 7) DM 2010-2011 00
003 25941683 CABLE, GEN STRTR (INCLS 7) (ACDelco #25941683) DR (EXPORT) 2010-2011 00
004 21021808 NUT, STRTR SOL CBL (M8X1.25X6, BRASS) D35-47-69 (JJB) 2011-2011 01
005 STARTER, (SEE GROUP 02.000 STARTER MOUNTING FOR DETAILED ILLUSTRATED VIEW) 2010-2013
006 GENERATOR, (SEE GROUP 02.000 GENERATOR MOUNTING FOR DETAILED ILLUSTRATED VIEW) 2010-2013
007 COVER, BAT POS CBL TERM (PART OF 3) 2010-2013
008 11609789 NUT, HEX, M8X1.25, 6.6 THK, 10, GMW3200. (BAT WIRE) 2010-2013 01
009 20794102 CABLE, BAT POS (INCLS 12-14, 18) (ACDelco #20794102) DM35 2010-2012 01
009 20794102 CABLE, BAT POS (INCLS 12-14, 18) (ACDelco #20794102) DN35 2011-2012 01
009 20794102 CABLE, BAT POS (INCLS 12-14, 18) (ACDelco #20794102) DR35 (EXPORT) 2011-2012 01
010 11609746 NUT, HFH, M8X1.25, 8.9THK, 17.6 O.D., 10 STL, GMW3200, PREV TORQUE (BAT POS CBL) 2010-2013 01
011 11589258 BOLT, BAT NEG CBL GND (M8X1.25X31) D35-47-69 2011-2013 01
012 COVER, BAT POS CBL TERM (PART OF 9) 2010-2013
013 11609411 NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (PART OF 9) 2010-2013 01
014 20794153 TERMINAL, BAT POS CBL (PART OF 9) D35-47-69 2011-2012 01
015 BOLT, BAT NEG CBL (PART OF 17) 2010-2013
016 13505369 SENSOR, BAT CUR (PART OF 17) (FOR VEH WITH 5V SUPPLY FROM BCM) (FOR 1ST DES SEE 10306471) D35-47-69 (2ND DES) 2011-2011 01
016 10306471 SENSOR, BAT CUR (PART OF 17) (FOR VEH WITH 10V SUPPLY FROM BCM) (FOR 2ND DES SEE 13505369) D35-47-69 (1ST DES) 2011-2011 01
017 20849476 CABLE, BAT NEG (INCLS 15, 16) (ACDelco #20849476) D35-47-69 2011-2013 01
018 11609412 NUT, HEX W/CON WA, M8X1.25, 7.5 THK, 19 OD, 10 STL, GMW3200 (PART OF 9) 2010-2013 01
