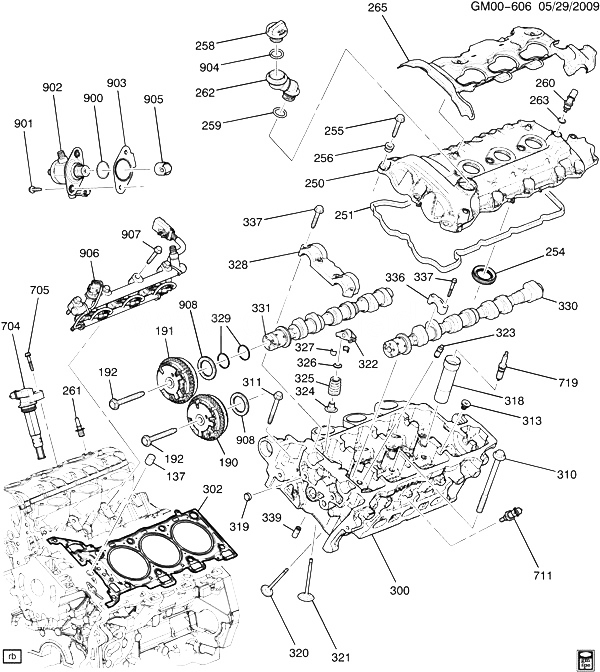

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 259 |
12593348 |
SEAL, OIL FIL TUBE (O RING) (PART OF 262) (27.94MM I.D.) (SIZE #320) (1.758) |
DR (LF1) (EXPORT) |
2010-2011 |
01 |
| 260 |
12578316 |
FITTING, PCV (INCLS 263) (PART OF 250) |
DM (LF1) |
2010-2011 |
01 |
| 260 |
12578316 |
FITTING, PCV (INCLS 263) (PART OF 250) |
DR (LF1) |
2010-2011 |
01 |
| 261 |
12583384 |
FITTING, PCV (PART OF 250) |
DM (LF1, LLT) |
2010-2011 |
01 |
| 261 |
12583384 |
FITTING, PCV (PART OF 250) |
DR (LF1, LLT) |
2010-2011 |
01 |
| 262 |
12601942 |
TUBE, OIL FIL (INCLS 259) |
DM (LF1, LLT) |
2011-2011 |
01 |
| 262 |
12601942 |
TUBE, OIL FIL (INCLS 259) |
DR (LF1, LLT) (EXPORT) |
2011-2011 |
01 |
| 262 |
12650616 |
TUBE, OIL FIL (INCLS 259) |
DR (LF1) (EXPORT) |
2011-2011 |
01 |
| 262 |
12650616 |
TUBE, OIL FIL (INCLS 259) |
DM (LF1) |
2010-2011 |
01 |
| 263 |
|
SEAL, PCV HOSE FTG (O RING) (PART OF 250, 260) |
|
2011-2011 |
|
| 265 |
12601745 |
INSULATOR, CM/SHF HSG CVR |
DM (LF1) |
2010-2011 |
01 |
| 265 |
12601744 |
INSULATOR, CM/SHF HSG CVR (0.413) |
DM (LF1) |
2010-2011 |
01 |
| 265 |
12601745 |
INSULATOR, CM/SHF HSG CVR |
DR (LF1) (EXPORT) |
2010-2011 |
01 |
| 265 |
12601744 |
INSULATOR, CM/SHF HSG CVR (0.413) |
DR (LF1) (EXPORT) |
2011-2011 |
01 |
| 300 |
|
HEAD, CYL (W/VLVS) (INCLS 313, 318-331, 336, 337, 339) |
|
2011-2011 |
|
| 300 |
12635548 |
HEAD, CYL (W/VLVS) (INCLS 313, 318-331, 336, 337, 339) (T/W INT CAM ACTUATOR 12626160 EXH ACTUATOR 12614464) (CYLINDER HEAD WITH CAM THRUST RING BEHIND FRONT CAM CAP) |
DM (LF1) |
2011-2011 |
01 |
| 300 |
12641100 |
HEAD, CYL (W/VLVS) (INCLS 313, 318-331, 336, 337, 339) (CYLINDER HEAD WITH CAM THRUST RING BEHIND FRONT CAM CAP, ) |
DM (LF1) |
2011-2011 |
01 |
| 300 |
12635548 |
HEAD, CYL (W/VLVS) (INCLS 313, 318-331, 336, 337, 339) (T/W INT CAM ACTUATOR 12626160 EXH ACTUATOR 12614464) (CYLINDER HEAD WITH CAM THRUST RING BEHIND FRONT CAM CAP) |
DR (LF1) (EXPORT) |
2011-2011 |
01 |
| 137 |
12570326 |
PIN, CYL HD LOC |
DM (LF1) |
2010-2011 |
04 |
| 137 |
12570326 |
PIN, CYL HD LOC |
DR (LF1) (EXPORT) |
2010-2011 |
04 |
| 190 |
12614464 |
ACTUATOR, CM/SHF POSN (EXH) |
DM (LF1) |
2010-2011 |
02 |
| 190 |
12614464 |
ACTUATOR, CM/SHF POSN (EXH) (EXH) |
DR (LF1) |
2010-2011 |
02 |
| 191 |
12626160 |
ACTUATOR, CM/SHF POSN (INT. USE T/W WASHER 12632859) (4 SCREWS ON BACKPLATE) (DO NOT USE A WASHER WITH FRONT CAM CAP MARKED 12634613) |
DM (LF1) |
2010-2011 |
01 |
| 191 |
12626161 |
ACTUATOR, CM/SHF POSN (INT) (4 SCREWS ON BACKPLATE) (DO NOT USE A WASHER WITH FRONT CAM CAP MARKED 12634613) |
DM (LF1) |
2010-2011 |
01 |
| 191 |
12626160 |
ACTUATOR, CM/SHF POSN (INT. USE T/W WASHER 12632859) (4 SCREWS ON BACKPLATE) (DO NOT USE A WASHER WITH FRONT CAM CAP MARKED 12634613) |
DR (LF1) (EXPORT) |
2011-2011 |
01 |
| 191 |
12626161 |
ACTUATOR, CM/SHF POSN (INT) (4 SCREWS ON BACKPLATE) (DO NOT USE A WASHER WITH FRONT CAM CAP MARKED 12634613) |
DR (LF1) (EXPORT) |
2011-2011 |
01 |
| 192 |
11588279 |
BOLT, HFH, M10X1.5X80, 26 THD, 22.3 O.D., 10.9, GM4277M (CM/SHF POSN) |
|
2010-2011 |
04 |
| 250 |
12640147 |
COVER, CM/SHF (INCLS 251, 254-256, 260, 261, 263) (USE T/W NEW FRESH AIR PCV TUBE) |
DM (LF1) |
2010-2011 |
01 |
| 250 |
12641260 |
COVER, CM/SHF (INCLS 251, 254-256, 260, 261, 263) |
DM (LF1) |
2010-2011 |
01 |
| 250 |
12640147 |
COVER, CM/SHF (INCLS 251, 254-256, 260, 261, 263) (USE T/W NEW FRESH AIR PCV TUBE) |
DR (LF1) (EXPORT) |
2011-2011 |
01 |
| 250 |
12641260 |
COVER, CM/SHF (INCLS 251, 254-256, 260, 261, 263) |
DR (LF1) (EXPORT) |
2010-2011 |
01 |
| 251 |
12607401 |
SEAL, CM/SHF CVR (PART OF 250) (*KIT1) |
DM (LF1) |
2010-2011 |
01 |
| 251 |
12641261 |
SEAL, CM/SHF CVR (PART OF 250) (*KIT1) |
DM (LF1) |
2010-2011 |
01 |
| 251 |
12607401 |
SEAL, CM/SHF CVR (PART OF 250) (*KIT1) |
DR (LF1) (EXPORT) |
2010-2011 |
01 |
| 251 |
12641261 |
SEAL, CM/SHF CVR (PART OF 250) (*KIT1) |
DR (LF1) (EXPORT) |
2010-2011 |
01 |
| 254 |
12607600 |
SEAL, SPLG SHLD (PART OF 250) |
DM (LF1) |
2010-2011 |
06 |
| 254 |
12607600 |
SEAL, SPLG SHLD (PART OF 250) |
DR (LF1) (EXPORT) |
2010-2011 |
06 |
| 255 |
11570020 |
BOLT, CM/SHF CVR (INCLS 256) (PART OF 250) |
DM (LF1) |
2010-2011 |
28 |
| 255 |
11570020 |
BOLT, CM/SHF CVR (INCLS 256) (PART OF 250) |
DR (LF1) (EXPORT) |
2010-2011 |
28 |
| 256 |
12595122 |
INSULATOR, CM/SHF CVR BOLT (PART OF 250, 255) (*KIT1) |
DM (LF1) |
2010-2011 |
28 |
| 256 |
12595122 |
INSULATOR, CM/SHF CVR BOLT (PART OF 250, 255) (*KIT1) |
DR (LF1) (EXPORT) |
2010-2011 |
28 |
| 258 |
12593356 |
CAP, OIL FIL (INCLS 904) (MOBIL 1, 5W30) (ACDelco #FC221) |
DM (LF1) |
2010-2011 |
01 |
| 258 |
12593356 |
CAP, OIL FIL (INCLS 904) (MOBIL 1, 5W30) (ACDelco #FC221) |
DR (LF1) (EXPORT) |
2010-2011 |
01 |
| 259 |
12593348 |
SEAL, OIL FIL TUBE (O RING) (PART OF 262) (27.94MM I.D.) (SIZE #320) (1.758) |
DM (LF1) |
2010-2011 |
01 |
| 300 |
12641100 |
HEAD, CYL (W/VLVS) (INCLS 313, 318-331, 336, 337, 339) (CYLINDER HEAD WITH CAM THRUST RING BEHIND FRONT CAM CAP) |
DR (LF1) (EXPORT) |
2011-2011 |
01 |
| 302 |
12634480 |
GASKET, CYL HD (*KIT1) |
DM (LF1) |
2011-2011 |
01 |
| 302 |
12634481 |
GASKET, CYL HD (*KIT1) |
DM (LF1) |
2010-2011 |
01 |
| 302 |
12634480 |
GASKET, CYL HD (*KIT1) |
DR (LF1) (EXPORT) |
2011-2011 |
01 |
| 302 |
12634481 |
GASKET, CYL HD (*KIT1) |
DR (LF1) (EXPORT) |
2011-2011 |
01 |
| 310 |
11518863 |
BOLT, CYL HD (M11X2X152) |
DM (LF1) |
2010-2011 |
16 |
| 310 |
11518863 |
BOLT, CYL HD (M11X2X152) |
DR (LF1) |
2010-2011 |
16 |
| 311 |
11588734 |
BOLT, HFH, M8X1.25X90, 21.6 THD, 18 O.D., 8.8, GMW3359 (CYL HD) |
|
2010-2011 |
03 |
| 313 |
11561751 |
PLUG, CYL HD WAT JKT HOLE (PART OF 300) (M20X1.5X30.5) (1.531) |
DM (LF1) |
2010-2011 |
02 |
| 313 |
11561751 |
PLUG, CYL HD WAT JKT HOLE (PART OF 300) (M20X1.5X30.5) (1.531) |
DR (LF1) (EXPORT) |
2010-2011 |
02 |
| 318 |
|
SLEEVE, SPLG WIRE (PART OF 300) |
|
2011-2011 |
|
| 319 |
11562127 |
PLUG, CYL HD OIL GAL (PART OF 300) (CUP-14.22 OD, 6.6 THK, 304SS) |
DM (LF1) |
2011-2011 |
04 |
| 319 |
11562127 |
PLUG, CYL HD OIL GAL (PART OF 300) (CUP-14.22 OD, 6.6 THK, 304SS) |
DR (LF1) |
2011-2011 |
04 |
| 320 |
12621548 |
VALVE, EXH |
DM (LF1) |
2010-2011 |
12 |
| 320 |
12621548 |
VALVE, EXH |
DR (LF1) (EXPORT) |
2010-2011 |
12 |
| 321 |
12584761 |
VALVE, INT (0.075MM O.S.) (0.297) |
DM (LF1) |
2010-2011 |
12 |
| 321 |
12620501 |
VALVE, INT (STD) |
DM (LF1) |
2010-2011 |
12 |
| 321 |
12584761 |
VALVE, INT (0.075MM O.S.) (0.297) |
DR (LF1) (EXPORT) |
2010-2011 |
12 |
| 321 |
12620501 |
VALVE, INT (STD) |
DR (LF1) (EXPORT) |
2010-2011 |
12 |
| 322 |
24100294 |
ARM, VLV RKR |
DM (LF1) |
2010-2011 |
24 |
| 322 |
24100294 |
ARM, VLV RKR |
DR (LF1) (EXPORT) |
2011-2011 |
24 |
| 323 |
12572638 |
ADJUSTER, HYD VLV LASH (ACDelco #HL129) |
DM (LF1) |
2010-2011 |
24 |
| 323 |
12572638 |
ADJUSTER, HYD VLV LASH (ACDelco #HL129) |
DR (LF1) (EXPORT) |
2010-2011 |
24 |
| 323 |
12572638 |
ADJUSTER, HYD VLV LASH (ACDelco #HL129) |
DR (LF1) (EXPORT) |
2010-2011 |
24 |
| 323 |
12572638 |
ADJUSTER, HYD VLV LASH (ACDelco #HL129) |
DR (LF1) (EXPORT) |
2010-2011 |
24 |
| 324 |
19207664 |
SEAL KIT, VLV STEM OIL (12 SEALS PER PACKAGE) |
DM (LF1) |
2010-2011 |
02 |
| 324 |
19207664 |
SEAL KIT, VLV STEM OIL (12 SEALS PER PACKAGE) |
DR (LF1) (EXPORT) |
2010-2011 |
02 |
| 325 |
12616671 |
SPRING, VLV |
DM (LF1) |
2010-2011 |
24 |
| 325 |
12616671 |
SPRING, VLV |
DR (LF1) (EXPORT) |
2010-2011 |
24 |
| 326 |
12575196 |
RETAINER, VLV SPR |
DM (LF1) |
2010-2011 |
24 |
| 326 |
12575196 |
RETAINER, VLV SPR |
DR35-69 (LF1) (EXPORT) |
2011-2011 |
24 |
| 327 |
12575197 |
KEY, VLV STEM |
DM (LF1) |
2010-2011 |
48 |
| 327 |
12575197 |
KEY, VLV STEM |
DR (LF1) (EXPORT) |
2010-2011 |
48 |
| 328 |
|
CAP, CM/SHF BRG (PART OF 300) |
|
2011-2011 |
|
| 329 |
12574477 |
RING, CM/SHF SPKT OIL SEAL (PART OF 330, 331) |
DM (LF1) |
2010-2011 |
08 |
| 329 |
12574477 |
RING, CM/SHF SPKT OIL SEAL (PART OF 330, 331) |
DR (LF1) (EXPORT) |
2010-2011 |
08 |
| 330 |
12632274 |
CAMSHAFT, EXH (INCLS 329) (W/LARGE THRUST RING BEHIND FRONT CAM CAP) (FOR 1ST DES SEE 12625988) |
DM (LF1) (2ND DES) |
2011-2011 |
01 |
| 330 |
12632274 |
CAMSHAFT, EXH (INCLS 329) (W/LARGE THRUST RING BEHIND FRONT CAM CAP) (FOR 1ST DES SEE 12625988) |
DN (LF1) (2ND DES) |
2011-2011 |
01 |
| 330 |
12638171 |
CAMSHAFT, EXH (INCLS 329) (W/LARGE THRUST RING BEHIND FRONT CAM CAP) (FOR 1ST DES SEE 12625984) |
DM (LF1) (2ND DES) |
2011-2011 |
01 |
| 330 |
12625984 |
CAMSHAFT, EXH (INCLS 329) (W/THRUST RING CAPTURED UNDER FRONT CAM CAP) (FOR 2ND DES SEE 12638171) |
DM (LF1) (1ST DES) |
2011-2011 |
01 |
| 330 |
12625988 |
CAMSHAFT, EXH (INCLS 329) (W/THRUST RING CAPTURED UNDER FRONT CAM CAP) (FOR 2ND DES SEE 12632274) |
DM (LF1) (1ST DES) |
2011-2011 |
01 |
| 330 |
12625988 |
CAMSHAFT, EXH (INCLS 329) (W/THRUST RING CAPTURED UNDER FRONT CAM CAP) (FOR 2ND DES SEE 12632274) |
DN (LF1) (1ST DES) |
2011-2011 |
01 |
| 330 |
12632274 |
CAMSHAFT, EXH (INCLS 329) (W/LARGE THRUST RING BEHIND FRONT CAM CAP) (FOR 1ST DES SEE 12625988) |
DR (LF1) (2ND DES) (EXPORT) |
2011-2011 |
01 |
| 330 |
12638171 |
CAMSHAFT, EXH (INCLS 329) (W/LARGE THRUST RING BEHIND FRONT CAM CAP) (FOR 1ST DES SEE 12625984) |
DR (LF1) (2ND DES) (EXPORT) |
2011-2011 |
01 |
| 330 |
12625984 |
CAMSHAFT, EXH (INCLS 329) (W/THRUST RING CAPTURED UNDER FRONT CAM CAP) (FOR 2ND DES SEE 12638171) |
DR (LF1) (1ST DES) (EXPORT) |
2011-2011 |
01 |
| 330 |
12625988 |
CAMSHAFT, EXH (INCLS 329) (W/THRUST RING CAPTURED UNDER FRONT CAM CAP) (FOR 2ND DES SEE 12632274) |
DR (LF1) (1ST DES) (EXPORT) |
2011-2011 |
01 |
| 331 |
12625986 |
CAMSHAFT, INT (INCLS 329) (W/THRUST RING CAPTURED UNDER FRONT CAM CAP) (FOR 2ND DES SEE 12638172) |
DM (LF1) (1ST DES) |
2011-2011 |
01 |
| 331 |
12638172 |
CAMSHAFT, INT (INCLS 329) (W/LARGE THRUST RING BEHIND FRONT CAM CAP) (FOR 1ST DES SEE 12625986) |
DM (LF1) (2ND DES) |
2011-2011 |
01 |
| 331 |
12638173 |
CAMSHAFT, INT (INCLS 329) (W/LARGE THRUST RING BEHIND FRONT CAM CAP) (FOR 1ST DES SEE 12625989) |
DM (LF1) (2ND DES) |
2011-2011 |
01 |
| 331 |
12625989 |
CAMSHAFT, INT (INCLS 329) (W/THRUST RING CAPTURED UNDER FRONT CAM CAP) (FOR 2ND DES SEE 12638173) |
DM (LF1) (1ST DES) |
2011-2011 |
01 |
| 331 |
12625986 |
CAMSHAFT, INT (INCLS 329) (W/THRUST RING CAPTURED UNDER FRONT CAM CAP) (FOR 2ND DES SEE 12638172) |
DR (LF1) (1ST DES) (EXPORT) |
2011-2011 |
01 |
| 331 |
12638172 |
CAMSHAFT, INT (INCLS 329) (W/LARGE THRUST RING BEHIND FRONT CAM CAP) (FOR 1ST DES SEE 12625986) |
DR (LF1) (2ND DES) (EXPORT) |
2011-2011 |
01 |
| 331 |
12638173 |
CAMSHAFT, INT (INCLS 329) (W/LARGE THRUST RING BEHIND FRONT CAM CAP) (FOR 1ST DES SEE 12625989) |
DR (LF1) (2ND DES) (EXPORT) |
2011-2011 |
01 |
| 331 |
12625989 |
CAMSHAFT, INT (INCLS 329) (W/THRUST RING CAPTURED UNDER FRONT CAM CAP) (FOR 2ND DES SEE 12638173) |
DR (LF1) (1ST DES) (EXPORT) |
2011-2011 |
01 |
| 336 |
|
CAP, CM/SHF BRG (PART OF 300) |
|
2011-2011 |
|
| 337 |
11518856 |
BOLT, HFH, M6X1X43.4, 14.8 THD, 11 O.D., 8.8, GMW3179 CODE G (PART OF 300) |
|
2010-2011 |
32 |
| 339 |
12580965 |
VALVE, ENG OIL MANIF CHK (PART OF 300) |
DM (LF1) |
2010-2011 |
04 |
| 339 |
12580965 |
VALVE, ENG OIL MANIF CHK (PART OF 300) |
DR (LF1) (EXPORT) |
2010-2011 |
04 |
| 704 |
12632479 |
COIL, IGN (INCLS 705) (ACDelco #D515C) |
DM (LF1) |
2011-2011 |
06 |
| 704 |
12632479 |
COIL, IGN (INCLS 705) (ACDelco #D515C) |
DR (LF1) (EXPORT) |
2010-2011 |
06 |
| 705 |
11588715 |
BOLT, HFH, M6X1X35, 18 THD, 14.2 OD, 8.8, GMW3359, 5MM M POINT (PART OF 704) |
|
2010-2011 |
06 |
| 711 |
12611420 |
SENSOR, ENG COOL TEMP (3.682) (ACDelco #213-4232) |
DM (LF1) |
2010-2011 |
01 |
| 711 |
12611420 |
SENSOR, ENG COOL TEMP (ACDelco #213-4232) |
DM (LF1) |
2010-2011 |
01 |
| 711 |
12611420 |
SENSOR, ENG COOL TEMP (3.682) (ACDelco #213-4232) |
DR (LF1) (EXPORT) |
2010-2011 |
01 |
| 711 |
12611420 |
SENSOR, ENG COOL TEMP (ACDelco #213-4232) |
DR (LF1) (EXPORT) |
2010-2011 |
01 |
| 719 |
12622561 |
SPARK PLUG, (ACDelco #41-109) (IRIDIUM) |
DM (LF1) |
2010-2011 |
06 |
| 719 |
12622561 |
SPARK PLUG, (ACDelco #41-109) (IRIDIUM) |
DR (LF1) (EXPORT) |
2010-2011 |
06 |
| 900 |
12602379 |
SEAL, F/PMP HSG (O RING) (PART OF 902) |
DM (LF1) |
2010-2011 |
01 |
| 900 |
12602379 |
SEAL, F/PMP HSG (O RING) (PART OF 902) |
DR (LF1) (EXPORT) |
2010-2011 |
01 |
| 901 |
11562426 |
BOLT, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (PART OF 902) |
|
2010-2011 |
02 |
| 902 |
12641740 |
PUMP, FUEL (INCLS 900, 901, 903) (HIGH PRESSURE) (ACDelco #43519) |
DM (LF1) |
2010-2011 |
01 |
| 902 |
12641740 |
PUMP, FUEL (INCLS 900, 901, 903) (HIGH PRESSURE) (ACDelco #43519) |
DR (LF1) (EXPORT) |
2010-2011 |
01 |
| 903 |
12633917 |
GASKET, F/PMP BRKT (PART OF 902) |
D |
2010-2011 |
01 |
| 904 |
12593348 |
SEAL, OIL FIL CAP (O RING) (PART OF 258) (27.94MM I.D.) (SIZE #320) |
DM (LF1) |
2010-2011 |
01 |
| 904 |
12593348 |
SEAL, OIL FIL CAP (O RING) (PART OF 258) (27.94MM I.D.) (SIZE #320) |
DR (LF1) (EXPORT) |
2010-2011 |
01 |
| 905 |
12590679 |
FOLLOWER, VLV LFTR (FUEL PUMP) |
DM (LF1) |
2010-2011 |
01 |
| 905 |
12590679 |
FOLLOWER, VLV LFTR (FUEL PUMP) |
DR (LF1) (EXPORT) |
2010-2011 |
01 |
| 906 |
|
RAIL, DIR F/INJN FUEL (SEE GROUP 03.000 FUEL RAIL FOR DETAILED ILLUSTRATED VIEW) |
|
2011-2011 |
|
| 907 |
11588729 |
BOLT, HEX HD, W/1.6 FLAT WA, M8X1.25X54.3, 43 THD, 16O.D., 8.8, GMW3359 (F/INJN FUEL RL) |
|
2010-2011 |
08 |
| 908 |
12630941 |
WASHER, CM/SHF THR (USED ON ACTUATORS 12603744-745, 12606653 12630916-918) |
DM (LF1) |
2010-2011 |
04 |
| 908 |
12630941 |
WASHER, CM/SHF THR (USED ON ACTUATORS 12603744-745, 12606653 12630916-918) |
DR (LF1) |
2010-2011 |
04 |
| K01 |
12646460 |
GASKET KIT, CYL HD (INCLS 251, 256, 302) |
DR (LF1) (EXPORT) |
2011-2011 |
01 |
| K01 |
12646460 |
GASKET KIT, CYL HD (INCLS 251, 256, 302) |
DM (LF1) |
2010-2011 |
01 |
