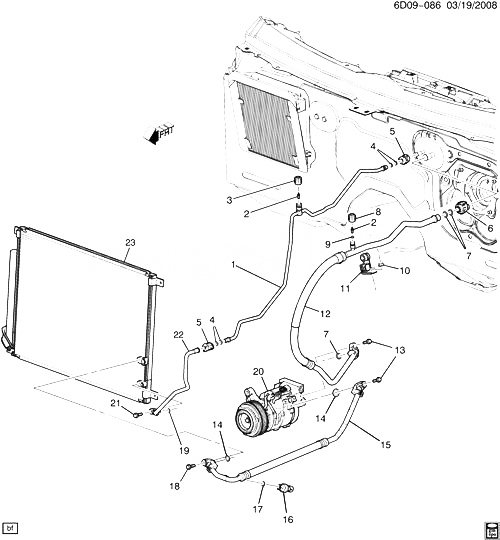

(6D09-086) - 2010 DM,DR35-69 КОНДИЦИОНЕР СИСТЕМА ОХЛАЖДЕНИЯ (LF1/3.0G,LLT/3.6V) CADILLAC - CTS WAGON 2010
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 15261820 | TUBE, | DM | 2010-2010 | 01 |
| 001 | 15261820 | TUBE, | DR (EXPORT) | 2010-2010 | 01 |
| 002 | 88958095 | VALVE, | D | 2010-2010 | 01 |
| 003 | 88957402 | CAP, | DM, DN | 2010-2010 | 01 |
| 003 | 88957402 | CAP, | DR (EXPORT) | 2010-2010 | 01 |
| 004 | 25740418 | SEAL, | DM, DN | 2010-2010 | 04 |
| 004 | 25740418 | SEAL, | DR (EXPORT) | 2010-2010 | 04 |
| 005 | 25728831 | C | D | 2010-2010 | 02 |
| 006 | 25728832 | C | D | 2010-2010 | 01 |
| 007 | 25740419 | SEAL, | D | 2010-2010 | 03 |
| 008 | 88957401 | CAP, | DM | 2010-2010 | 01 |
| 008 | 88957401 | CAP, | DR (EXPORT) | 2010-2010 | 01 |
| 009 | SEAL, | 2010-2010 | |||
| 010 | 03530297 | 2010-2010 | 01 | ||
| 011 | 88958096 | CLIP, | DM, DN | 2010-2010 | 01 |
| 011 | 88958096 | CLIP, | DR (EXPORT) | 2010-2010 | 01 |
| 012 | 15261843 | HOSE, | DM | 2010-2010 | 01 |
| 012 | 15261843 | HOSE, | DR (EXPORT) | 2010-2010 | 01 |
| 013 | 11516424 | 2010-2010 | 02 | ||
| 014 | 25740416 | SEAL, | DM | 2010-2010 | 02 |
| 014 | 25740416 | SEAL, | DR (EXPORT) | 2010-2010 | 02 |
| 015 | 25892337 | HOSE, | DM | 2010-2010 | 01 |
| 015 | 25892337 | HOSE, | DR (EXPORT) | 2010-2010 | 01 |
| 016 | 13502758 | SENSOR, | DM (LF1, LLT, JJB) | 2010-2010 | 01 |
| 016 | 13502758 | SENSOR, | DR (LF1, LLT, JJB) (EXPORT) | 2010-2010 | 01 |
| 016 | 13502759 | SENSOR, | DM (LF1, LLT, JJB) | 2010-2010 | 01 |
| 016 | 13502759 | SENSOR, | DR (LF1, LLT, JJB) (EXPORT) | 2010-2010 | 01 |
| 017 | 25740416 | SEAL, | DM | 2010-2010 | 02 |
| 017 | 25740416 | SEAL, | DR (EXPORT) | 2010-2010 | 02 |
| 018 | 11516424 | 2010-2010 | 01 | ||
| 019 | 25740418 | SEAL, | DM | 2010-2010 | 01 |
| 019 | 25740418 | SEAL, | DR | 2010-2010 | 01 |
| 020 | 25865635 | DM | 2010-2010 | 01 | |
| 020 | 25865635 | DR (EXPORT) | 2010-2010 | 01 | |
| 021 | 19130331 | D | 2010-2010 | 01 | |
| 022 | 25876660 | TUBE, | DM, DN | 2010-2010 | 01 |
| 022 | 25876660 | TUBE, | DR (EXPORT) | 2010-2010 | 01 |
| 023 | 15932849 | CONDENSER, | DM | 2010-2010 | 01 |
| 023 | 15932849 | CONDENSER, | DR (EXPORT) | 2010-2010 | 01 |
