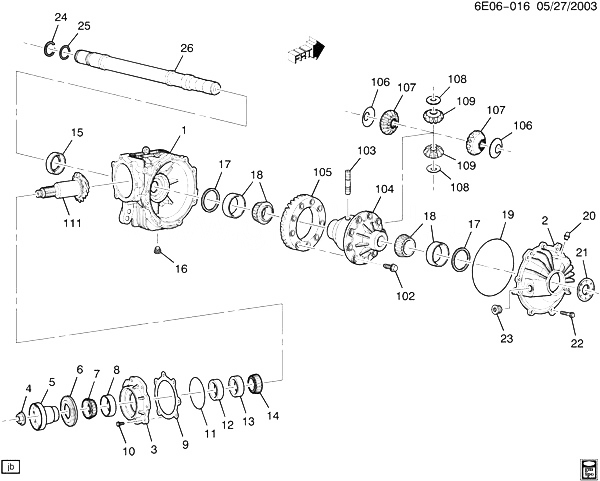

(6E06-016) - 2010 DM35-69 DIFFERENTIAL КРОНШТЕЙН/FRONT AXLE (ПОЛНОПРИВОДНЫЙ MX7) CADILLAC - CTS WAGON 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25978167 DM (JJB, MX7) 2010-2010 01
002 COVER, FRT DIFF CARR ( 2010-2010
003 2010-2010
004 89047861 DM (JJB, MX7) 2010-2010 01
005 19178812 FLANGE, FRT DIFF CARR ( DM (JJB, MX7) 2010-2010 01
006 19132939 SEAL, FRT DIFF DRV P/GR ( DM (JJB, MX7) 2010-2010 01
006 89047834 SEAL, FRT DIFF DRV P/GR ( DM (JJB, MX7) 2010-2010 01
007 BEARING, FRT DIFF DRV P/GR INR ( 2010-2010
008 BEARING, FRT DIFF DRV P/GR INR ( 2010-2010
009 SHIM, FRT DIFF DRV P/GR BRG ( 2010-2010
010 89058602 DM (JJB, MX7) 2010-2010 06
011 19132939 SEAL, FRT DIFF DRV P/GR ( DM (JJB, MX7) 2010-2010 01
011 89047834 SEAL, FRT DIFF DRV P/GR ( DM (JJB, MX7) 2010-2010 01
012 SPACER, FRT DIFF DRV P/GR BRG ( 2010-2010
013 BEARING, FRT DIFF DRV P/GR INR ( 2010-2010
014 BEARING, FRT DIFF DRV P/GR INR ( 2010-2010
015 20850012 SEAL, FRT WHL DRV INTER SHF HSG ( DM (JJB, MX7) 2010-2010 01
016 PLUG, FRT DIFF CARR OIL DRN ( 2010-2010
017 SHIM, FRT DIFF SI GR ( 2010-2010
018 BEARING, FRT DIFF DRV P/GR OTR ( 2010-2010
019 89047859 GASKET, FRT DIFF CARR CVR ( DM (JJB, MX7) 2010-2010 01
020 19132947 VENT, F/AXL ( DM (JJB, MX7) 2010-2010 01
021 25968537 SEAL, F/AXL SHF ( DM (JJB, MX7) 2010-2010 01
021 25968537 SEAL, F/AXL SHF ( DM (MYB, MX7, JJB) 2010-2010 01
022 89058602 DM (JJB, MX7) 2010-2010 06
023 PLUG, FRT DIFF CARR OIL FIL ( 2010-2010
024 89047934 SEAL, FRT WHL DRV INTER SHF ( DM (JJB, MX7) 2010-2010 01
025 89047933 RETAINER, FRT WHL DRV INTER SHF ( DM (JJB, MX7) 2010-2010 01
026 89047931 SHAFT, FRT WHL DRV INTER ( DM (JJB, MX7) 2010-2010 01
102 89047929 DM (MX7) 2010-2010 10
103 SHAFT, FRT DIFF P/GR ( 2010-2010
104 CASE, FRT DIFF ( 2010-2010
105 GEAR, FRT DIFF RING ( 2010-2010
106 WASHER, FRT DIFF SI GR THR ( 2010-2010
107 GEAR, FRT DIFF SI ( 2010-2010
108 WASHER, FRT DIFF P/GR THR ( 2010-2010
109 GEAR, FRT DIFF PINION ( 2010-2010
111 GEAR, FRT DIFF DRV PINION ( 2010-2010
