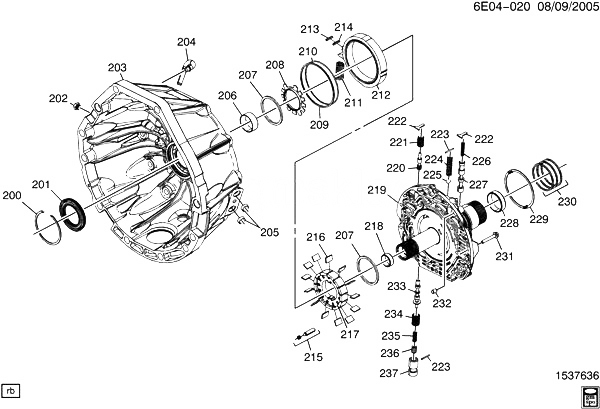

(6E04-020) - 2010 D АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (MYB) (6L50) ГИДРОТРАНСФОРМАТОР ШЛАНГИ И ГИДРОНАСОС CADILLAC - CTS WAGON 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
200 24218963 RING, T/CV FLUID SEAL RET DM (MYB) 2010-2010 01
200 24218963 RING, T/CV FLUID SEAL RET DR (MYB) (EXPORT) 2010-2010 01
201 24237531 SEAL, T/CV FLUID ( DM (MYB) 2010-2010 01
201 24237531 SEAL, T/CV FLUID ( DR (MYB) (EXPORT) 2010-2010 01
202 00444613 PLUG, HEX HD, 1/8-27 NPTF, STL (LINE PRESS TEST HOLE) (ACDelco #444613) 2010-2010 01
206 BUSHING, T/CV ( 2010-2010
207 RING, A/TRNS 2010-2010
208 GUIDE, A/TRNS 2010-2010
209 RING, A/TRNS 2010-2010
210 SEAL, A/TRNS O/PMP SLIDE (O RING) ( 2010-2010
211 2010-2010
212 24222668 SLIDE, A/TRNS DM (MYB) 2010-2010 01
212 24222668 SLIDE, A/TRNS DR (MYB) (EXPORT) 2010-2010 01
212 24224131 SLIDE, A/TRNS DM (MYB) 2010-2010 01
212 24224131 SLIDE, A/TRNS DR (MYB) (EXPORT) 2010-2010 01
212 24224132 SLIDE, A/TRNS DM (MYB) 2010-2010 01
212 24224132 SLIDE, A/TRNS DR (MYB) (EXPORT) 2010-2010 01
213 SEAL, A/TRNS 2010-2010
214 SUPPORT, A/TRNS 2010-2010
215 PIN, A/TRNS 2010-2010
216 VANE, A/TRNS 2010-2010
217 24238915 ROTOR PKG, A/TRNS DM (MYB) 2010-2010 01
217 24238915 ROTOR PKG, A/TRNS DR (MYB) (EXPORT) 2010-2010 01
217 24238916 ROTOR PKG, A/TRNS DM (MYB) 2010-2010 01
217 24238916 ROTOR PKG, A/TRNS DR (MYB) (EXPORT) 2010-2010 01
217 24238917 ROTOR PKG, A/TRNS DM (MYB) 2010-2010 01
217 24238917 ROTOR PKG, A/TRNS DR (MYB) (EXPORT) 2010-2010 01
218 BUSHING, TURB SHF FRT ( 2010-2010
219 24238919 COVER KIT, A/TRNS DM (MYB) 2010-2010 01
219 24238919 COVER KIT, A/TRNS DR (MYB) (EXPORT) 2010-2010 01
220 VALVE, CONV FEED LIM ( 2010-2010
221 2010-2010
222 2010-2010
223 PIN, PRESS RLF BALL VLV SPR ( 2010-2010
224 2010-2010
225 00147500 VALVE, PRESS RLF BALL ( DM (MYB) 2010-2010 01
225 00147500 VALVE, PRESS RLF BALL ( DR (MYB) (EXPORT) 2010-2010 01
226 2010-2010
227 VALVE, TCC CONT ( 2010-2010
228 BUSHING, TURB SHF RR ( 2010-2010
229 24224692 WASHER, 1-2-3-4 3-5 REV CLU HSG THR ( DM (MYB) 2010-2010 01
229 24224692 WASHER, 1-2-3-4 3-5 REV CLU HSG THR ( DR (MYB) (EXPORT) 2010-2010 01
230 24239151 RING, 1-2-3-4 3-5 REV CLU FLUID SEAL ( DM (MYB) 2010-2010 03
230 24239151 RING, 1-2-3-4 3-5 REV CLU FLUID SEAL ( DR (MYB) (EXPORT) 2010-2010 03
231 24227061 DM (MYB) 2010-2010 13
232 90351709 PIN, A/TRNS D (MYB) 2010-2010 01
233 VALVE, PRESS REG ( 2010-2010
234 2010-2010
235 2010-2010
236 VALVE, ISOLATOR ( 2010-2010
237 SLEEVE, ISOLATOR VLV ( 2010-2010
K02 24239151 RING KIT, 1-2-3-4 3-5 REV CLU FLUID SEAL (INCLS 230) (ACDelco #24239151) DM (MYB) 2010-2010 01
K02 24239151 RING KIT, 1-2-3-4 3-5 REV CLU FLUID SEAL (INCLS 230) (ACDelco #24239151) DR (MYB) (EXPORT) 2010-2010 01
