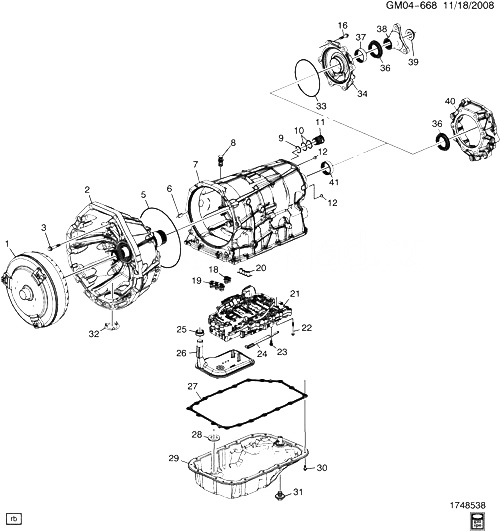

(GM04-668) - 2010 D35-69 АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (MYB) (6L50) CASE ДЕТАЛИ КОМПЛЕКТА CADILLAC - CTS WAGON 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 24251328 CONVERTER, TORQ DM (MYB, MX0) 2010-2010 01
001 24251328 CONVERTER, TORQ DR (MYB, MX0) (EXPORT) 2010-2010 01
001 24252928 CONVERTER, TORQ DM35-69 (MYB, MX7) 2010-2010 01
001 24252928 CONVERTER, TORQ DR35-69 (MYB, MX7) (EXPORT) 2010-2010 01
002 2010-2010
003 11515762 DM (MYB) 2010-2010 08
003 11515762 DR (MYB) (EXPORT) 2010-2010 08
005 24225543 SEAL, A/TRNS DM (MYB) 2010-2010 01
005 24225543 SEAL, A/TRNS DR (MYB) (EXPORT) 2010-2010 01
006 PIN, T/CV HSG LOC ( 2010-2010
007 24242045 CASE, A/TRNS (INCLS 6, 12, 13) (ACDelco #24242045) DM (LH2, MYB, JJB, MX7) 2010-2010 01
007 24242045 CASE, A/TRNS (INCLS 6, 12, 13) (ACDelco #24242045) DR (LH2, MYB, JJB, MX7) (EXPORT) 2010-2010 01
007 24242046 CASE, A/TRNS (INCLS 6, 12, 13) (ACDelco #24242046) DM (MYB, MX0) 2010-2010 01
007 24242046 CASE, A/TRNS (INCLS 6, 12, 13) (ACDelco #24242046) DR (MYB) (EXPORT) 2010-2010 01
008 24226020 PLUG, TRANS FLUID FIL TUBE DM (MYB) 2010-2010 01
009 SEAL, A/TRNS WRG CONN (*KIT1, KIT2) 2010-2010
010 SEAL, A/TRNS WRG CONN (O RING) (*KIT1, KIT2) 2010-2010
011 24239878 SLEEVE, A/TRNS ELEC CONN PASG DM (MYB) 2010-2010 01
011 24239878 SLEEVE, A/TRNS ELEC CONN PASG DR (MYB) (EXPORT) 2010-2010 01
012 PLUG, A/TRNS CASE ( 2010-2010
016 11515762 DM (MYB) 2010-2010 08
016 11515762 DR (MYB) (EXPORT) 2010-2010 08
018 SEAL, A/TRNS 2010-2010
019 SEAL, A/TRNS 2010-2010
020 24225557 SEAL, CTR SUPT FLUID PASG (*KIT2) DM (MYB) 2010-2010 01
020 24225557 SEAL, CTR SUPT FLUID PASG (*KIT2) DR (MYB) (EXPORT) 2010-2010 01
021 VALVE, CONT (W/BODY VLV) ( 2010-2010
022 24224822 DM (MYB) 2010-2010 06
022 24224822 DR (MYB) 2010-2010 06
023 24240322 DM (MYB) 2010-2010 01
023 24240322 DR (MYB) (EXPORT) 2010-2010 01
025 SEAL, A/TRNS FLUID FLTR ( 2010-2010
026 24236933 FILTER KIT, A/TRNS FLUID (INCLS 25) (ACDelco #24236933) DM (MYB) 2010-2010 01
026 24236933 FILTER KIT, A/TRNS FLUID (INCLS 25) (ACDelco #24236933) DR (MYB) (EXPORT) 2010-2010 01
027 24225800 GASKET, A/TRNS FLUID PAN (ACDelco #24225800) DM (MYB) 2010-2010 01
027 24225800 GASKET, A/TRNS FLUID PAN (ACDelco #24225800) DR (MYB) (EXPORT) 2010-2010 01
028 MAGNET, A/TRNS FLUID PAN 2010-2010
029 PAN, A/TRNS FLUID (INCLS 31) 2010-2010
030 11561674 2010-2010 17
031 24234212 PLUG, A/TRNS FLUID PAN DRN ( DM (MYB) 2010-2010 01
031 24234212 PLUG, A/TRNS FLUID PAN DRN ( DR (MYB) (EXPORT) 2010-2010 01
032 24205900 COVER, T/CV HSG ACC HOLE (62MM W/3 TANGS) (LARGE CVR) (ACDelco #24205900) DM (MYB, MX7) 2010-2010 01
032 24205900 COVER, T/CV HSG ACC HOLE (62MM W/3 TANGS) (LARGE CVR) (ACDelco #24205900) DR (MYB) 2010-2010 01
033 24225783 SEAL, A/TRNS CASE EXTN (ACDelco #24225783) DM35-69 (MYB) 2010-2010 01
033 24225783 SEAL, A/TRNS CASE EXTN (ACDelco #24225783) DR35-69 (MYB) (EXPORT) 2010-2010 01
034 24249873 EXTENSION, A/TRNS CASE (ACDelco #24249873) DM (MYB) 2010-2010 01
034 24249873 EXTENSION, A/TRNS CASE (ACDelco #24249873) DR (MYB) (EXPORT) 2010-2010 01
036 24228876 SEAL, DM (MYB) 2010-2010 01
036 24228876 SEAL, DR (MYB) (EXPORT) 2010-2010 01
037 24214158 BEARING, DM (MYB) 2010-2010 01
037 24214158 BEARING, DR (MYB) 2010-2010 01
038 24230287 FLANGE, PROP SHF TRANS D (MYB, MX0) 2010-2010 01
039 24231524 D (MYB, MX0) 2010-2010 01
040 24229687 EXTENSION, A/TRNS CASE (MCHG) DM (MYB) 2010-2010 01
041 24242995 BEARING, DM35-69 (MYB, MX0) 2010-2010 01
041 24242995 BEARING, DR35-69 (MYB, MX0) 2010-2010 01
K01 24236928 SEAL KIT, A/TRNS ELEC CONN PASG SLEV (INCLS 9, 10) DM (MYB) 2010-2010 01
K01 24236928 SEAL KIT, A/TRNS ELEC CONN PASG SLEV (INCLS 9, 10) DR (MYB) (EXPORT) 2010-2010 01
K02 24238913 SEAL KIT, A/TRNS SERV (CONTROL VLV SOL ASM) (ACDelco #24238913) D (MYB, MX0) 2010-2010 01
K02 24238913 SEAL KIT, A/TRNS SERV (CONTROL VLV SOL ASM) (ACDelco #24238913) DM (MYB) 2010-2010 01
