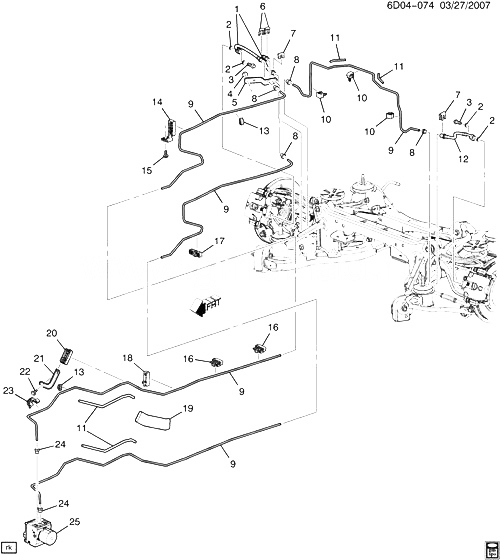

(6D04-074) - 2010 DM,DR35 ТОРМОЗНЫЕ МАГИСТРАЛИ-ЗАДНИЕ CADILLAC - CTS WAGON 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15818185 HOSE, RR BRK (INCLS 2, 3, 5, 6) DM 2010-2010 01
001 15818185 HOSE, RR BRK (INCLS 2, 3, 5, 6) DR (EXPORT) 2010-2010 01
002 21012386 WASHER, RR BRK HOSE ( D 2010-2010 AR
003 2010-2010
004 11609411 2010-2010 02
005 BRACKET, RR BRK HOSE ( 2010-2010
006 11569742 RETAINER, RR BRK HOSE ( D 2010-2010 02
007 11569742 RETAINER, RR BRK HOSE ( D 2010-2010 02
008 11569751 2010-2010 04
009 88983905 PIPE, BRK (3/16 X 16 FT) (BULK TUBING) (NYLON COATING) D 2010-2010 AR
010 15194329 CLIP, RR BRK PIPE (27X35X15) D 2010-2010 03
011 88964150 PROTECTOR, FRT BRK PIPE (FOR 3/16 PIPE) (HT SHRINK) D 2010-2010 AR
012 15818187 HOSE, RR BRK (INCLS 2, 3) DM 2010-2010 01
012 15818187 HOSE, RR BRK (INCLS 2, 3) DR (EXPORT) 2010-2010 01
014 15870391 RETAINER, BRK FUEL PIPE (HOLDS FOUR LINES) D 2010-2010 01
014 15870391 RETAINER, BRK FUEL PIPE (HOLDS FOUR LINES) (3.162) D 2010-2010 01
015 11588337 2010-2010 01
016 15223307 RETAINER, BRK FUEL PIPE (2 FUEL/VAPOR LINES) D 2010-2010 02
016 15223307 RETAINER, BRK FUEL PIPE (2 FUEL/VAPOR LINES) (3.162) D 2010-2010 02
017 15223304 CLIP, FUEL FEED EVAP EMIS FRT PIPE (HOLDS FOUR LINES) (3.890) DM35-69 2010-2010 01
017 15223304 CLIP, FUEL FEED EVAP EMIS FRT PIPE (HOLDS FOUR LINES) (3.890) DR35-69 2010-2010 01
018 15223306 RETAINER, BRK FUEL PIPE (2 FUEL/VAPORS LINE 2 BRAKE LINES) D 2010-2010 01
018 15223306 RETAINER, BRK FUEL PIPE (2 FUEL/VAPORS LINE 2 BRAKE LINES) (3.162) D 2010-2010 01
019 88964150 PROTECTOR, BRK PIPE (FOR 3/16 PIPE) (HT SHRINK) D 2010-2010 AR
020 15223308 RETAINER, BRK FUEL PIPE (ATTACHES TO BRKT) D 2010-2010 01
020 15223308 RETAINER, BRK FUEL PIPE (ATTACHES TO BRKT) (3.162) D 2010-2010 01
021 25761218 BRACKET, FUEL PIPE D 2010-2010 01
022 11514623 2010-2010 01
023 25957289 RETAINER, FRT BRK PIPE (4 TUBE W/TREE) DM (MN6, MX0) 2010-2010 01
023 25957289 RETAINER, FRT BRK PIPE (4 TUBE W/TREE) DR (MN6, MX0) 2010-2010 01
024 11569750 2010-2010 02
025 VALVE, BRK PRESS MOD (W/ELEK BRK TRACT CONT MDL) ( 2010-2010
