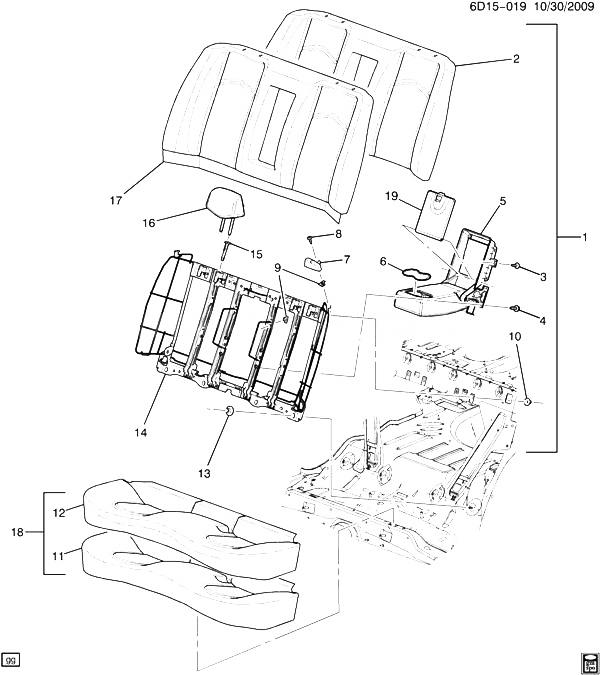

(6D15-019) 2009-2013 DM,DN69 СИДЕНЬЕ В СБОРЕ/ЗАДНЕЕ (EXC SPLIT BACK AM9) CADILLAC - CTS SEDAN 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15860393 CUSHION, R/SEAT BK (INCLS 2-9, 14-17, 19) (CASHMERE) DM69 (01D) (EXC AM9, A82) 2010-2013 01
001 25905623 CUSHION, R/SEAT BK (INCLS 2-9, 14-17, 19) (TITANIUM) DM69 (EBS, 01C) (EXC AM9, A82) 2010-2013 01
001 20830246 CUSHION, R/SEAT BK (INCLS 2-9, 14-17, 19) (TITANIUM) DM69 (EAM, 01C) (EXC AM9, A82) 2010-2013 01
001 22787293 CUSHION, R/SEAT BK (INCLS 2-9, 14-17, 19) (EBONY) DM69 (EBS, 01G) (EXC AM9, A82) 2012-2013 01
001 22829257 CUSHION, R/SEAT BK (INCLS 2-9, 14-17, 19) (EBONY) (SANDSTONE/SUEDE) DM, DN69 (ECH, 01G) (EXC AM9, A82) 2012-2013 01
001 22829258 CUSHION, R/SEAT BK (INCLS 2-9, 14-17, 19) (TITANIUM) (SANDSTONE/SUEDE) DM, DN69 (ECH, 01C) (EXC AM9, A82) 2012-2013 01
001 22896513 CUSHION, R/SEAT BK (INCLS 2-9, 14-17, 19) (TWILIGHT BLUE) DN69 (ECH, 07P) (EXC AM9, A82) 2013-2013 01
002 25777065 PAD, R/SEAT BK (PART OF 1) DM69 (EXC AM9, A82) 2008-2013 01
002 25777065 PAD, R/SEAT BK (PART OF 1) DN69 (EXC AM9, A82) 2009-2013 01
003 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (PART OF 1) 2008-2013 04
004 09419967 SCREW, 1/4-14X3/4 HWH TAP TYPE AB (PART OF 1) 2008-2013 04
005 20930342 ARMREST, R/SEAT (INCLS 19) (PART OF 1) (EBONY) DM, DN69 (ECH, 01G) (EXC AM9, A82) 2010-2013 01
005 20930343 ARMREST, R/SEAT (INCLS 19) (PART OF 1) (CASHMERE) DM69 (EBS, 01D) (EXC AM9, A82) 2010-2013 01
005 20930342 ARMREST, R/SEAT (INCLS 19) (PART OF 1) (EBONY) DM69 (EBS, 01G) (EXC AM9, A82) 2010-2013 01
005 20930344 ARMREST, R/SEAT (INCLS 19) (PART OF 1) (TITANIUM) DM, DN69 (ECH, 01C) (EXC AM9, A82) 2010-2013 01
005 20930344 ARMREST, R/SEAT (INCLS 19) (PART OF 1) (TITANIUM) DM69 (EBS, 01C) (EXC AM9, A82) 2010-2013 01
005 22896529 ARMREST, R/SEAT (INCLS 19) (PART OF 1) (TWILIGHT BLUE) DN69 (ECH, 07P) (EXC AM9, A82) 2013-2013 01
006 25780739 LINER, R/SEAT A/RST CUP HLDR (PART OF 1) D69 2008-2013 01
007 25780640 BEZEL, R/SEAT BELT OPG (PART OF 1) (CASHMERE) DM (01D) 2010-2013 01
007 25780642 BEZEL, R/SEAT BELT OPG (PART OF 1) (EBONY) DM69 (01G) 2010-2013 01
007 25780644 BEZEL, R/SEAT BELT OPG (PART OF 1) (CASHMERE) DM69 (01D) 2010-2013 01
007 25909205 BEZEL, R/SEAT BELT OPG (PART OF 1) (TITANIUM) DM, DN69 (01C) 2010-2013 01
007 25909206 BEZEL, R/SEAT BELT OPG (PART OF 1) (TITANIUM) DM, DN (01C) 2010-2013 01
007 25780646 BEZEL, R/SEAT BELT OPG (PART OF 1) (EBONY) DM69 (01G) 2010-2013 01
007 25780642 BEZEL, R/SEAT BELT OPG (PART OF 1) (EBONY) DN69 (07P) 2013-2013 01
007 25780646 BEZEL, R/SEAT BELT OPG (PART OF 1) (EBONY) DN69 (07P) 2013-2013 01
008 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (PART OF 1) 2008-2013 02
009 11517068 NUT, METRIC HEX FLANGE, M6X1, 10MM SOCKET (PART OF 1) 2008-2013 04
010 25601643 NUT, HEX W/CON WA, M6X1X5.6, 24 OD, 9, ZF (R/SEAT) (8.917) 2008-2013 04
011 20955171 PAD, R/SEAT CUSH (PART OF 18) DM69 (EAM, EBS, ECH) 2010-2013 01
011 20955171 PAD, R/SEAT CUSH (PART OF 18) DN69 (ECH) 2010-2013 01
012 15898724 COVER, R/SEAT CUSH (PART OF 18) (CASHMERE) DM69 (EBS, 01D) 2010-2013 01
012 25909199 COVER, R/SEAT CUSH (PART OF 18) (TITANIUM) DM69 (EBS, 01C) 2010-2013 01
012 22786273 COVER, R/SEAT CUSH (PART OF 18) (EBONY) DM, DN69 (ECH, 01G) 2012-2013 01
012 22789952 COVER, R/SEAT CUSH (PART OF 18) (TITANIUM) DM, DN69 (ECH, 01C) 2012-2013 01
012 22786272 COVER, R/SEAT CUSH (PART OF 18) (EBONY) DM69 (EBS, 01G) 2012-2013 01
012 22896539 COVER, R/SEAT CUSH (PART OF 18) (TWILIGHT BLUE) DN69 (ECH, 07P) 2013-2013 01
013 11515552 NUT, HEX W/CON WA, M10X1.5X13.5, 31.75 OD, 9, ZF (R/SEAT BK BRKT) 2008-2013 04
014 25780732 FRAME, R/SEAT BK (PART OF 1) DM69 (EXC AM9, A82) 2008-2013 01
014 25780732 FRAME, R/SEAT BK (PART OF 1) DN69 (EXC AM9, A82) 2009-2013 01
015 15216387 GUIDE, R/SEAT H/RST (PART OF 1) (MOLDED IN BLACK) DM69 (EXC A82) 2008-2013 04
016 25957673 RESTRAINT, R/SEAT HD (PART OF 1) (TITANIUM) D69 (EBS, ECH, 01C) 2010-2013 02
016 22786600 RESTRAINT, R/SEAT HD (PART OF 1) (EBONY) DM69 (EBS, 01G) 2012-2013 02
016 22786600 RESTRAINT, R/SEAT HD (PART OF 1) (EBONY) DM, DN69 (ECH, 01G) 2012-2013 02
016 22896541 RESTRAINT, R/SEAT HD (PART OF 1) (TWILIGHT BLUE) DN69 (ECH, 07P) 2013-2013 02
016 25957670 RESTRAINT, R/SEAT HD (PART OF 1) (CASHMERE) DM69 (01D) 2010-2013 02
017 25909211 COVER, R/SEAT BK (PART OF 1) (TITANIUM) DM69 (EBS, 01C) (EXC AM9, A82) 2010-2013 01
017 15898739 COVER, R/SEAT BK (PART OF 1) (CASHMERE) DM69 (EBS, 01D) (EXC AM9, A82) 2011-2013 01
017 22787263 COVER, R/SEAT BK (PART OF 1) (EBONY) DM69 (EBS, 01G) (EXC AM9, A82) 2012-2013 01
017 22790417 COVER, R/SEAT BK (PART OF 1) (TITANIUM) DM, DN69 (ECH, 01C) (EXC AM9, A82) 2012-2013 01
017 22787272 COVER, R/SEAT BK (PART OF 1) (EBONY) DN69 (ECH, 01G) (EXC AM9, A82) 2013-2013 01
017 22896538 COVER, R/SEAT BK (PART OF 1) (TWILIGHT BLUE) (FIXED BACK) DN69 (ECH, 07P) (EXC AM9, A82) 2013-2013 01
018 20955162 CUSHION, R/SEAT (INCLS 11, 12) (CASHMERE) DM69 (EBS, 01D) 2010-2013 01
018 20955163 CUSHION, R/SEAT (INCLS 11, 12) (TITANIUM) DM69 (EBS, 01C) 2010-2013 01
018 22786280 CUSHION, R/SEAT (INCLS 11, 12) (EBONY) DM69 (EBS, 01G) 2012-2013 01
018 22829275 CUSHION, R/SEAT (INCLS 11, 12) (EBONY) (SANDSTONE/SUEDE) DM, DN69 (ECH, 01G) 2012-2013 01
018 22829276 CUSHION, R/SEAT (INCLS 11, 12) (TITANIUM) (SANDSTONE/SUEDE) DM, DN69 (ECH, 01C) 2012-2013 01
018 22896509 CUSHION, R/SEAT (INCLS 11, 12) (TWILIGHT BLUE) DN69 (ECH, 07P) 2013-2013 01
019 20930338 DOOR, R/SEAT A/RST COMPT (PART OF 1, 5) (EBONY) DM69 (EAM, EBS, 01G) (EXC AM9, A82) 2011-2013 01
019 20930338 DOOR, R/SEAT A/RST COMPT (PART OF 1, 5) (EBONY) DM, DN69 (ECH, 01G) (EXC AM9, A82) 2011-2013 01
019 20930339 DOOR, R/SEAT A/RST COMPT (PART OF 1, 5) (TITANIUM) DM69 (EAM, EBS, 01C) (EXC AM9, A82) 2011-2013 01
019 20930339 DOOR, R/SEAT A/RST COMPT (PART OF 1, 5) (TITANIUM) DM, DN69 (ECH, 01C) (EXC AM9, A82) 2011-2013 01
019 20930340 DOOR, R/SEAT A/RST COMPT (PART OF 1, 5) (CASHMERE) DM69 (EBS, 01D) (EXC AM9, A82) 2011-2013 01
