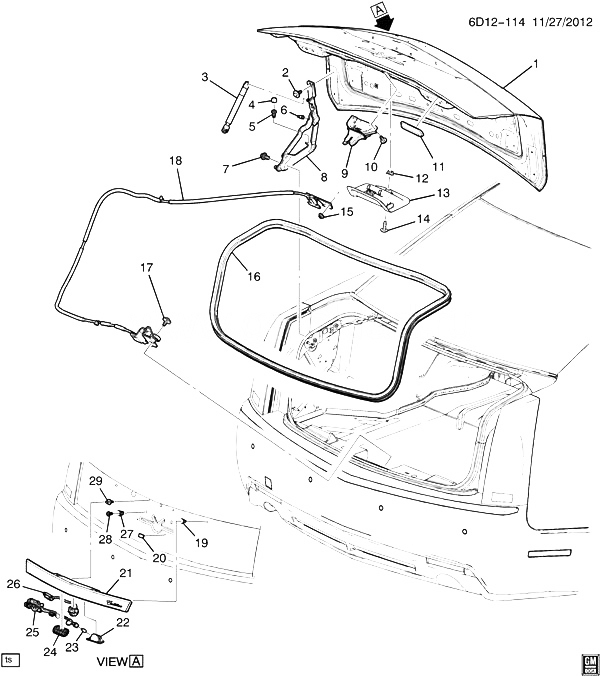

(6D12-114) 2011-2013 DM,DN,DR69 ЭЛЕМЕНТЫ ЗАДНЕГО ОТСЕКА CADILLAC - CTS SEDAN 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25971366 LID, R/CMPT D69 2011-2013 01
002 11609540 BOLT, HWH, M6X1X20, 16.15 THD, 17 OD, 8.8, GMW4205, HDR PT. (R/CMPT LID HGE (LID SI)) (8.977) 2011-2013 04
003 15247598 STRUT, R/CMPT LID DR69 (EXPORT) 2011-2013 02
003 15247598 STRUT, R/CMPT LID DM69 2011-2013 02
003 15247598 STRUT, R/CMPT LID DN69 2011-2013 02
004 10390945 CAP, R/CMPT LID HGE ADJ BOLT DR69 (EXPORT) 2011-2013 02
004 10390945 CAP, R/CMPT LID HGE ADJ BOLT DM69 2011-2013 02
004 10390945 CAP, R/CMPT LID HGE ADJ BOLT DN69 2011-2013 02
005 11518852 BUMPER, R/CMPT LID HGE ADJ BOLT D69 2011-2013 02
006 25896511 BUMPER, R/CMPT LID HGE DR69 (EXPORT) 2011-2013 02
006 25896511 BUMPER, R/CMPT LID HGE DM69 2011-2013 02
006 25896511 BUMPER, R/CMPT LID HGE DN69 2011-2013 02
007 11569592 BOLT, HFH W/SHLDR, M8X1.25X21, 10 THD, 18.8 OD, 9.8, GMW3359, 3X10.75 SHLDR (R/CMPT LID HGE (BODY SI)) 2011-2013 04
008 15929859 HINGE, R/CMPT LID DR69 (EXPORT) 2011-2013 01
008 15929860 HINGE, R/CMPT LID DR69 (EXPORT) 2011-2013 01
008 15929859 HINGE, R/CMPT LID DM69 2011-2013 01
008 15929860 HINGE, R/CMPT LID DM69 2011-2013 01
008 15929859 HINGE, R/CMPT LID DN69 2011-2013 01
008 15929860 HINGE, R/CMPT LID DN69 2011-2013 01
009 25885392 LATCH, R/CMPT LID DM, DN, DR69 2011-2013 01
010 11609341 SCREW, RD WA HD M6X1X19, 13.55 THD, 16 OD, 10.9, GMW4205, W/ADH GM6175M, MATPT (R/CMPT LID LAT) 2011-2013 02
011 15877980 BUMPER, R/CMPT LID OTR DR69 (EXPORT) 2011-2013 02
011 15877980 BUMPER, R/CMPT LID OTR DM69 2011-2013 02
011 15877980 BUMPER, R/CMPT LID OTR DN69 2011-2013 02
012 11518531 NUT, PUSH-IN, M4.2X1.41, 15.9X8.4, .7-2.1 PNL, SAE 1050 STL, 7111M, 8.65 SQ HOL (L/GATE ASST STRP) (10.512) 2011-2013 02
013 22858924 HANDLE, L/GATE I/S ASST (EBONY) (10.512) D69 (4AC, 4AL, 4AM, 4AR, 4EV) 2013-2013 01
014 15714276 SCREW, HWH, W/FL WA, SELF TAP, M4.2X1.41X18, 12.5 O.D., 6010M, PS (L/GATE I/S ASST HDL) (8.977) 2011-2013 02
015 11609411 NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (R/CMPT LID LAT STKR) 2011-2013 02
016 22760222 WEATHERSTRIP, R/CMPT LID DR69 (EXPORT) 2011-2013 01
016 22760222 WEATHERSTRIP, R/CMPT LID DM69 2011-2013 01
016 22760222 WEATHERSTRIP, R/CMPT LID DN69 2011-2013 01
017 11609540 BOLT, HWH, M6X1X20, 16.15 THD, 17 OD, 8.8, GMW4205, HDR PT. (R/CMPT LID LAT STKR) (8.977) 2011-2013 02
018 20878380 STRIKER, R/CMPT LID LAT D69 2011-2013 01
019 11569985 CLIP, R/CMPT LID LWR MLDG (PART OF 21) (20X22X14.8) (CLIP W/SEALING WASHER, FITS 8.5 DIA HOLE) D69 2011-2013 02
020 INSULATOR, RR LIC PLT 2011-2013
021 22768337 MOLDING, R/CMPT LID LWR (INCLS 19, 22-26, 29) (CHROME) (FOR VEH BUILT BEFORE 04/01/2013) (2ND DES 22893995) DR69 (ATG) (EXC UVC) (1ST DES) (EXPORT) 2013-2013 01
021 22893995 APPLIQUE, RR CLSR CTR W/LIC PLT LP (INCLS 19, 22-26, 29) (FOR VEH BUILT ON/AFTER 04/01/2013) (1ST DES 22768337) DR69 (ATG) (EXC UVC) (2ND DES) (EXPORT) 2013-2013 01
021 22768337 MOLDING, R/CMPT LID LWR (INCLS 19, 22-26, 29) (CHROME) (FOR VEH BUILT BEFORE 04/01/2013) (2ND DES 22893995) DM, DN69 (ATG) (EXC UVC) (1ST DES) 2013-2013 01
021 22768335 MOLDING, R/CMPT LID LWR (INCLS 19, 22-26, 29) (CHROME) (FOR VEH BUILT BEFORE 4/1/2013) (FOR 2ND DES SEE 22945148) D69 (ATG, UVC) (1ST DES) 2013-2013 01
021 22893995 APPLIQUE, RR CLSR CTR W/LIC PLT LP (INCLS 19, 22-26, 29) (FOR VEH BUILT ON/AFTER 04/01/2013) (1ST DES 22768337) DM, DN69 (ATG) (EXC UVC) (2ND DES) 2013-2013 01
021 22768336 MOLDING, R/CMPT LID LWR (INCLS 19, 22-26, 29) (CHROME) (FOR VEH BUILT BEFORE 4/1/2013) (FOR 2ND DES SEE 22945149) D69 (ATH, UVC) (1ST DES) 2013-2013 01
021 22945148 APPLIQUE, RR CLSR CTR W/LIC PLT LP (INCLS 19, 22-26, 29) (FOR VEH BUILT 4/1/13 LATER) (FOR 1ST DESIGN SEE 22768335) D69 (ATG, UVC) (2ND DES) 2013-2013 01
021 22945149 APPLIQUE, RR CLSR CTR W/LIC PLT LP (INCLS 19, 22-26, 29) (FOR VEH BUILT 4/1/13 LATER) (FOR 1ST DESIGN SEE 22768336) D69 (ATH, UVC) (2ND DES) 2013-2013 01
022 13502178 LAMP, RR LIC PLT (PART OF 21) DR69 (ATG, ATH) (EXPORT) 2011-2013 02
022 13502178 LAMP, RR LIC PLT (PART OF 21) DM, DN69 (ATG, ATH) 2011-2013 02
023 13500812 BULB, RR LIC PLT LP (PART OF 21) (TRADE #W5WLL) (ACDelco #13500812) DR35-69 (EXPORT) 2011-2013 01
023 13500812 BULB, RR LIC PLT LP (PART OF 21) (TRADE #W5WLL) (ACDelco #13500812) DM35-69 2011-2013 01
023 13500812 BULB, RR LIC PLT LP (PART OF 21) (TRADE #W5WLL) (ACDelco #13500812) DN35-69 2011-2013 01
024 20877759 SWITCH, L/GATE REL (PART OF 21, 25) (BLACK) (EXTERNALLY MOUNTED ABOVE LICENSE PLATE) (ACDelco #D1433H) DR69 (ATG) (EXPORT) 2011-2013 01
024 20877759 SWITCH, L/GATE REL (PART OF 21, 25) (BLACK) (EXTERNALLY MOUNTED ABOVE LICENSE PLATE) (ACDelco #D1433H) DR69 (ATH) (EXPORT) 2011-2013 01
024 20877759 SWITCH, L/GATE REL (PART OF 21, 25) (BLACK) (EXTERNALLY MOUNTED ABOVE LICENSE PLATE) (ACDelco #D1433H) DM, DN69 (ATH) 2011-2013 01
024 20877759 SWITCH, L/GATE REL (PART OF 21, 25) (BLACK) (EXTERNALLY MOUNTED ABOVE LICENSE PLATE) (ACDelco #D1433H) DM, DN69 (ATG) 2011-2013 01
025 22894417 HARNESS, RR LIC PLT LP WRG (PART OF 21) (INCLS 24) DR69 (ATH, UVC) (EXPORT) 2013-2013 01
025 22894418 HARNESS, RR LIC PLT LP WRG (PART OF 21) (INCLS 24) DR69 (ATG, UVC) (EXPORT) 2013-2013 01
025 22894419 HARNESS, RR LIC PLT LP WRG (PART OF 21) (INCLS 24) DR69 (ATG) (EXC UVC) (EXPORT) 2013-2013 01
025 22894417 HARNESS, RR LIC PLT LP WRG (PART OF 21) (INCLS 24) DM, DN69 (ATH, UVC) 2013-2013 01
025 22894418 HARNESS, RR LIC PLT LP WRG (PART OF 21) (INCLS 24) DM, DN69 (ATG, UVC) 2013-2013 01
025 22894419 HARNESS, RR LIC PLT LP WRG (PART OF 21) (INCLS 24) DM, DN69 (ATG) (EXC UVC) 2013-2013 01
026 20793585 MODULE, RR VIEW CAMERA IMAGE DISPLAY (PART OF 21) DM, DN69 (UVC) 2011-2013 01
026 20793585 MODULE, RR VIEW CAMERA IMAGE DISPLAY (PART OF 21) DR69 (UVC) (EXPORT) 2011-2013 01
027 25704358 NUT, RR LIC PLT (15X18X23.8) (7.831) D 2011-2013 02
028 11570951 BOLT, RR LIC PLT (M6X1X13) (TRUSS HEAD) D69 2011-2013 02
029 11570746 BOLT, R/CMPT LID LWR MLDG (PART OF 21) (FLANGE, M6X1X17, M6.3X1.69X12, 15 OD, 8.8) D69 2011-2013 02
