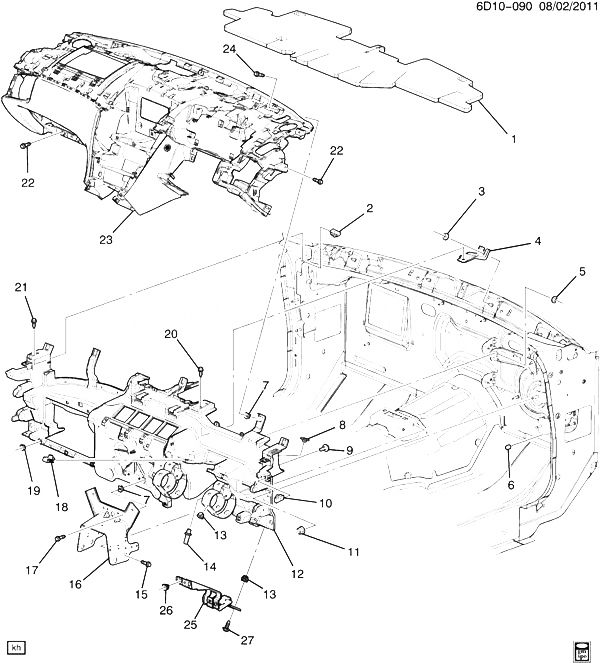

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
22836148 |
INSULATOR, I/P UPR T/PNL |
D69 |
2010-2013 |
01 |
| 002 |
11516149 |
NUT, U, 8X1.25, MULTI THD, .08-4.0 THK PNL, PZ (I/P CARR) |
|
2009-2013 |
02 |
| 003 |
11517792 |
NUT, HEX W/FL WA, M8X1.25, 10.75 THK, 24 OD, 10, 7111M (I/P CARR BRKT) |
|
2009-2013 |
02 |
| 004 |
25795381 |
BRACKET, I/P CARR (FOD) |
D69 |
2009-2013 |
02 |
| 005 |
11514519 |
NUT, HEX W/23.75 OD CON WA, M8X1.25, 7.32THK, 9, PZOR (I/P STRG COL OPG SUPT) |
|
2009-2013 |
02 |
| 006 |
25862318 |
COVER, I/P BOLT (TO MOD PLT) |
D35-69 |
2010-2013 |
01 |
| 007 |
22717573 |
NUT, PUSH-IN MULTI THR, M6X1.0, SAE 1050-1065, ZO (PART OF 12) |
|
2009-2013 |
13 |
| 008 |
11516819 |
NUT, STAMPED M10 X 1.5 (PART OF 12) |
|
2009-2013 |
02 |
| 009 |
11609540 |
BOLT, HWH, M6X1X20, 16.15 THD, 17 OD, 8.8, GMW4205, HDR PT. (PART OF 12) (8.977) |
|
2009-2013 |
08 |
| 010 |
11515638 |
NUT, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (PART OF 12) |
|
2009-2013 |
13 |
| 011 |
11517792 |
NUT, HEX W/FL WA, M8X1.25, 10.75 THK, 24 OD, 10, 7111M (I/P CARR) |
|
2009-2013 |
04 |
| 012 |
20838308 |
CARRIER, I/P (INCLS 7-10, 13, 14, 18, 19) |
DR (EXPORT) |
2012-2013 |
01 |
| 013 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 12) (10.701) |
|
2009-2013 |
02 |
| 014 |
11609875 |
STUD, FLANGE, M10X1.5X12.5, M10X1.5X29, 18 OD, 9.8, GMW3044, HDR-PT (PART OF 12) (8.981) |
|
2009-2013 |
02 |
| 015 |
11519388 |
BOLT, HX HD CON WA, M8X1.25X25, 20 THD, 24 OD, 8.8, GMW3359 (SILVER), M-POINT (I/P CARR BRKT) |
|
2009-2013 |
04 |
| 016 |
25795382 |
BRACKET, I/P CARR (TO TUN ATTACH, RWD) |
D69 |
2009-2013 |
01 |
| 017 |
11609989 |
BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (I/P CARR BRKT) |
|
2009-2013 |
04 |
| 018 |
11516819 |
NUT, STAMPED M10 X 1.5 (PART OF 12) |
|
2009-2013 |
02 |
| 019 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 12) (10.701) |
|
2009-2013 |
12 |
| 020 |
11515755 |
BOLT, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (I/P CARR BRKT) (T/W 12345493 REPLCS 25534835) |
|
2009-2013 |
02 |
| 021 |
11570082 |
BOLT, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (INST CARR) (ACDelco #11570082) |
|
2009-2013 |
02 |
| 022 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (I/P LWR) |
|
2009-2013 |
11 |
| 023 |
15862313 |
PANEL, I/P LWR TR (SEE GROUP 10.000 INSTRUMENT PANEL TRIM FOR DETAILED ILLUSTRATED VIEW) (EBONY) |
DR (4AL) (EXPORT) |
2010-2013 |
01 |
| 023 |
25914739 |
PANEL, I/P LWR TR (SEE GROUP 10.000 INSTRUMENT PANEL TRIM FOR DETAILED ILLUSTRATED VIEW) (TITANIUM) |
DR (4AM) (EXPORT) |
2010-2013 |
01 |
| 023 |
15862314 |
PANEL, I/P LWR TR (SEE GROUP 10.000 INSTRUMENT PANEL TRIM FOR DETAILED ILLUSTRATED VIEW) (CASHMERE) |
DR69 (4AC) (EXPORT) |
2010-2013 |
01 |
| 024 |
11609989 |
BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (I/P LWR) |
|
2009-2013 |
05 |
| 025 |
15836532 |
REINFORCEMENT, PARK BRK LVR BRKT (INCLS 26) |
DR (EXPORT) |
2009-2013 |
01 |
| 026 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 25) (10.701) |
|
2009-2013 |
05 |
| 027 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (PARK BRK REL HDL BRKT) |
|
2009-2013 |
01 |
