| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

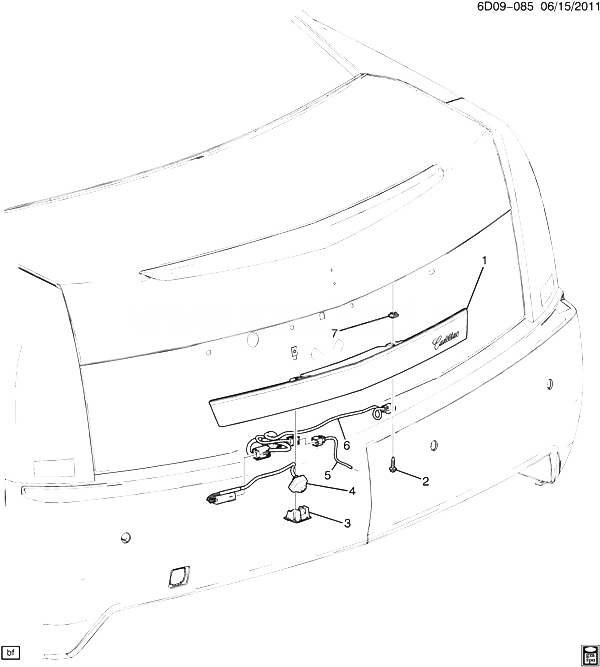

| 001 |
22945148 |
APPLIQUE, RR CLSR CTR W/LIC PLT LP (INCLS 3-4, 6) (SEE GROUP 12.000 REAR COMPARTMENT HARDWARE FOR DETAILED ILLUSTRATED VIEW) (FOR VEH BUILT 4/1/13 LATER) (FOR 1ST DESIGN SEE 22768335) |
D69 (ATG, UVC) (2ND DES) |
2013-2013 |
01 |
| 001 |
22945149 |
APPLIQUE, RR CLSR CTR W/LIC PLT LP (INCLS 3-4, 6) (SEE GROUP 12.000 REAR COMPARTMENT HARDWARE FOR DETAILED ILLUSTRATED VIEW) (FOR VEH BUILT 4/1/13 LATER) (FOR 1ST DESIGN SEE 22768336) |
D69 (ATH, UVC) (2ND DES) |
2013-2013 |
01 |
| 002 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (R/CMPT LID LWR MLDG) (9.665) |
|
2011-2013 |
02 |
| 003 |
|
BRACKET, RR VIEW CAMERA IMAGE DISPLAY MDL (PART OF 1, 4) |
|
2011-2013 |
|
| 004 |
20793585 |
MODULE, RR VIEW CAMERA IMAGE DISPLAY (PART OF 1) (INCLS 3) |
DM, DN69 (UVC) |
2011-2013 |
01 |
| 004 |
20793585 |
MODULE, RR VIEW CAMERA IMAGE DISPLAY (PART OF 1) (INCLS 3) |
DR69 (UVC) (EXPORT) |
2011-2013 |
01 |
| 005 |
|
HARNESS, BODY WRG (SEE GROUP 13.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) |
|
2011-2013 |
|
| 006 |
|
CABLE KIT, (SEE GROUP 09.000 CABLE KIT FOR DETAILED ILLUSTRATED VIEW) |
|
2013-2013 |
|
| 007 |
11610510 |
NUT, PUSH-IN, M4.2X1.41, 0.7-2.15 PNL THK, SAE 1050-65, GMW3359 W/BLK SEAL (R/CMPT LID MLDG) |
|
2011-2013 |
02 |
