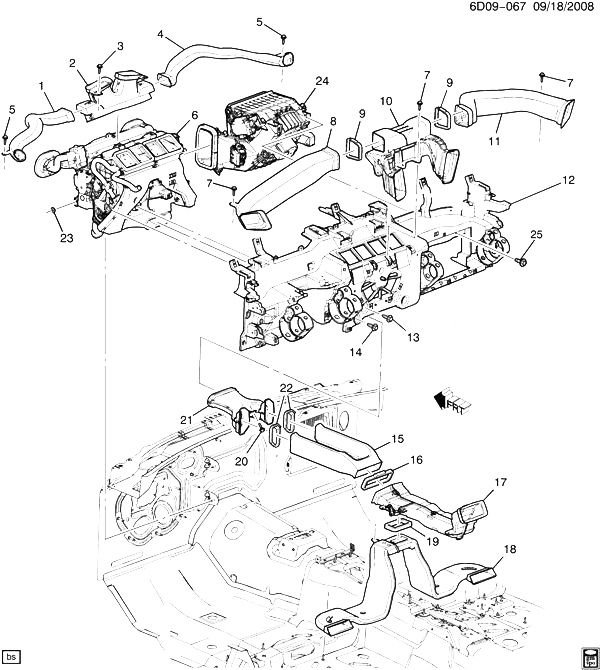

(6D09-067) 2009-2013 DM,DN,DR69 ВОЗДУХОРАСПРЕДЕЛИТЕЛЬНАЯ СИСТЕМА CADILLAC - CTS SEDAN 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25800284 DUCT, SI WDO DEFG OTLT DM, DN 2009-2013 01
001 25800283 DUCT, SI WDO DEFG OTLT DR (EXPORT) 2009-2013 01
002 15843182 NOZZLE, W/S DEFR D69 2008-2013 01
003 11589015 BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (W/S DEFR NOZ) 2008-2013 02
004 25800285 DUCT, SI WDO DEFG OTLT DM, DN 2009-2013 01
004 25800282 DUCT, SI WDO DEFG OTLT DR (EXPORT) 2009-2013 01
005 11609989 BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (BLO AIR INL MDL) 2008-2013 03
006 MODULE, HTR A/C EVPR (SEE GROUP 09.000 A/C HEATER MODULE ASM FOR DETAILED ILLUSTRATED VIEW) 2009-2013
007 11589015 BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (AIR DISTR DUCT) 2008-2013 06
008 25905215 DUCT, AIR DISTR DM, DN 2009-2013 01
008 25800289 DUCT, AIR DISTR DR (EXPORT) 2009-2013 01
009 SEAL, AIR DISTR DUCT (PART OF 10) 2009-2013
010 25800290 DUCT, AIR DISTR (INCLS 9) (CTR) D69 2008-2013 01
011 25905216 DUCT, AIR DISTR DM, DN 2009-2013 01
011 25800288 DUCT, AIR DISTR DR (EXPORT) 2009-2013 01
012 22762905 CARRIER, I/P (SEE GROUP 10.000 INSTRUMENT PANEL/STRUCTURE FOR DETAILED ILLUSTRATED VIEW) DM, DN 2012-2013 01
012 20838308 CARRIER, I/P (SEE GROUP 10.000 INSTRUMENT PANEL/STRUCTURE FOR DETAILED ILLUSTRATED VIEW) DR (EXPORT) 2012-2013 01
013 11609989 BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (HTR A/C EVPR BLO MDL) 2008-2013 04
014 11589015 BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (F/FLR CNSL RR AIR DUCT) 2008-2013 02
015 15843191 DUCT, F/FLR CNSL RR AIR (SEE GROUP 10.000 CONSOLE/FLOOR FOR DETAILED ILLUSTRATED VIEW) (INCLS 16, 22) (DUCT ONLY) (U SHAPED) DM 2008-2013 01
015 15843191 DUCT, F/FLR CNSL RR AIR (SEE GROUP 10.000 CONSOLE/FLOOR FOR DETAILED ILLUSTRATED VIEW) (INCLS 16, 22) (DUCT ONLY) (U SHAPED) DN 2009-2013 01
015 15843191 DUCT, F/FLR CNSL RR AIR (SEE GROUP 10.000 CONSOLE/FLOOR FOR DETAILED ILLUSTRATED VIEW) (INCLS 16, 22) (DUCT ONLY) (U SHAPED) DR 2009-2013 01
016 SEAL, F/FLR CNSL RR AIR DUCT (PART OF 15) 2009-2013
017 25801211 DUCT, F/FLR CNSL RR AIR (SEE GROUP 10.000 CONSOLE/FLOOR FOR DETAILED ILLUSTRATED VIEW) (INCLS 19)) (INCLS LEVER) D69 2008-2013 01
018 25726435 DUCT, FLR RR AIR OTLT DM, DN 2010-2013 01
018 25726435 DUCT, FLR RR AIR OTLT DR (EXPORT) 2010-2013 01
019 SEAL, F/FLR CNSL RR AIR DUCT (PART OF 17) 2009-2013
020 11589015 BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (F/FLR CNSL RR AIR DUCT) 2008-2013 01
021 15843181 DUCT, F/FLR CNSL FRT AIR DM, DN 2010-2013 01
021 15843181 DUCT, F/FLR CNSL FRT AIR DR (EXPORT) 2010-2013 01
022 SEAL, F/FLR CNSL RR AIR DUCT (PART OF 15) 2009-2013
023 11609411 NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (HTR A/C EVPR BLO MDL) 2008-2013 02
024 MODULE, BLO AIR INL (SEE GROUP 09.000 AIR INLET BLOWER FOR DETAILED ILLUSTRATED VIEW) 2008-2013
025 11609989 BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (BLO AIR INL MDL) 2008-2013 03
