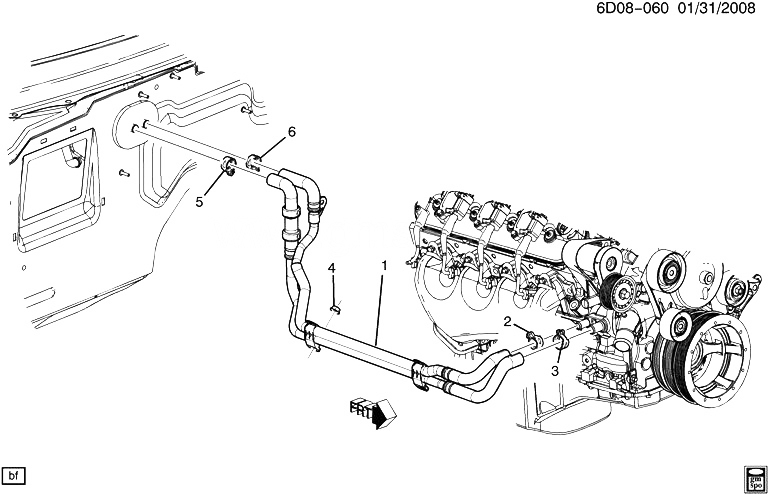

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25889824 |
HOSE, HTR INL OTLT (W/O CLA) (ACDelco #15-33891) |
DN |
2009-2013 |
01 |
| 002 |
11570816 |
CLAMP, HOSE SPRINGBAND, 23 NOMINAL DIA, 15 WIDTH, STEEL, GRAY ROBO. (HTR INL FRT HOSE FRT) |
|
2009-2013 |
01 |
| 003 |
11570615 |
CLAMP, HOSE SPRINGBAND, 26 NOMINAL DIA, 15 THK, STL, ROBO (HTR OTLT FRT HOSE FRT) |
|
2009-2013 |
01 |
| 004 |
03530297 |
NUT, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (HTR INL OTLT HOSE BRKT) |
|
2009-2013 |
02 |
| 005 |
11570817 |
CLAMP, HOSE SPRINGBAND, 24MM NOMINAL DIA, 12MM WIDTH, STL, GRAY ROBO. (HTR OTLT HOSE HTR) |
|
2009-2013 |
01 |
| 006 |
11570817 |
CLAMP, HOSE SPRINGBAND, 24MM NOMINAL DIA, 12MM WIDTH, STL, GRAY ROBO. (HTR INL HOSE HTR) |
|
2009-2013 |
01 |
