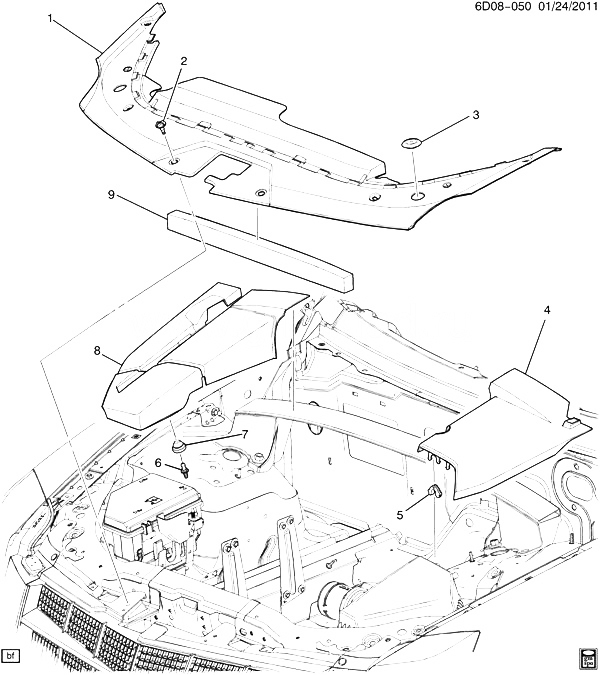

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15902235 |
SHIELD, F/CMPT FRT SIGHT (INCLS 9) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 001 |
15902235 |
SHIELD, F/CMPT FRT SIGHT (INCLS 9) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
01 |
| 002 |
10382313 |
RETAINER, F/CMPT FRT SIGHT SHLD (025.0X35.6) (PUSH PIN) (8.090) |
D69 |
2008-2013 |
06 |
| 003 |
15788083 |
PLUG, HDLP ADJR ACC HOLE (INCLS 5) (18.5MM DIA) (ROUND) (12.940) |
DM |
2008-2013 |
02 |
| 003 |
15788083 |
PLUG, HDLP ADJR ACC HOLE (INCLS 5) (18.5MM DIA) (ROUND) (12.940) |
DR (EXPORT) |
2009-2013 |
02 |
| 004 |
|
SHIELD, F/CMPT SI SIGHT (*KIT1) |
|
2010-2013 |
|
| 005 |
12559120 |
INSULATOR, UPR INT MANIF CVR (PART OF 3) (HORSE-SHOE SHAPED) (*KIT1) (ACDelco #12559120) |
DR35-69 |
2012-2013 |
02 |
| 005 |
12559120 |
INSULATOR, UPR INT MANIF CVR (PART OF 3) (HORSE-SHOE SHAPED) (*KIT1) (ACDelco #12559120) |
DM, DN |
2012-2013 |
02 |
| 006 |
15214102 |
STUD, BALL, HFH, M8X1.25X20, SAE1010, STL, GALVANISED (FRT W/H PNL) |
|
2008-2013 |
01 |
| 007 |
12591715 |
GROMMET, UPR INT MANIF SIGHT SHLD (PART OF 3, 6) (32MM OD @ TOP) (ROUND AT TOP/TAPERED CONICAL BOTTOM) (*KIT1) |
DM (LFW) |
2012-2013 |
01 |
| 007 |
12591715 |
GROMMET, UPR INT MANIF SIGHT SHLD (PART OF 3, 6) (32MM OD @ TOP) (ROUND AT TOP/TAPERED CONICAL BOTTOM) (*KIT1) |
DR (LFW) |
2012-2013 |
01 |
| 007 |
12591715 |
GROMMET, UPR INT MANIF SIGHT SHLD (PART OF 3, 6) (32MM OD @ TOP) (ROUND AT TOP/TAPERED CONICAL BOTTOM) (*KIT1) |
DM (LFX) |
2012-2013 |
01 |
| 007 |
12591715 |
GROMMET, UPR INT MANIF SIGHT SHLD (PART OF 3, 6) (32MM OD @ TOP) (ROUND AT TOP/TAPERED CONICAL BOTTOM) (*KIT1) |
DR (LFX) |
2012-2013 |
01 |
| 008 |
|
SHIELD, F/CMPT SI SIGHT (*KIT1) |
|
2010-2013 |
|
| 009 |
25876570 |
SEAL, HOOD FRT (PART OF 1) |
D69 |
2008-2013 |
01 |
| K01 |
22836115 |
SHIELD PKG, U/HOOD APPEARANCE (INCLS 4, 5, 7, 8) (8.160) |
DM |
2010-2013 |
01 |
| K01 |
22836115 |
SHIELD PKG, U/HOOD APPEARANCE (INCLS 4, 5, 7, 8) (8.160) |
DR (EXPORT) |
2010-2013 |
01 |
