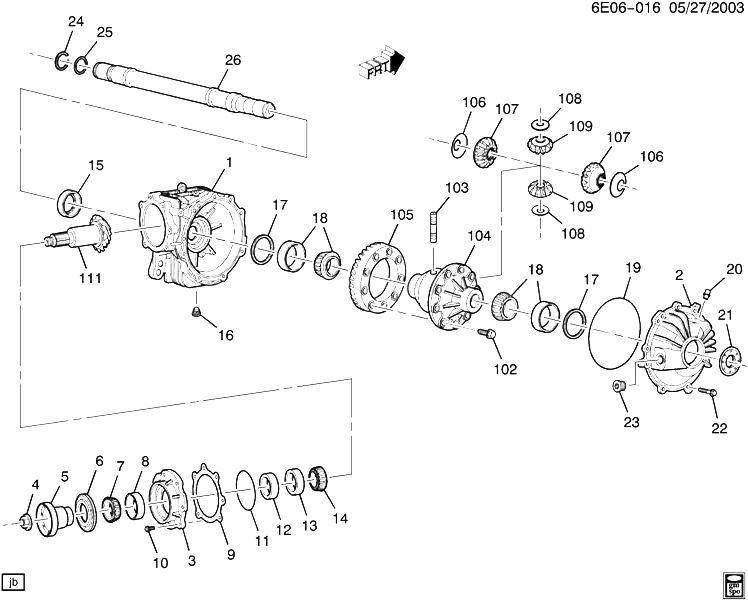

(6E06-016) 2011-2013 DM35-47-69 КОРПУС ДИФФЕРЕНЦИАЛА/ПЕРЕДНИЙ МОСТ (ALL-WHEEL DRIVE MX7) CADILLAC - CTS SEDAN 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25978167 CARRIER, FRT DIFF (INCLS 2-26, 102-111) DM (MX7) 2008-2013 01
002 COVER, FRT DIFF CARR (PART OF 1) 2011-2013
003 HOUSING, FRT DIFF DRV P/GR INR BRG (PART OF 1) 2011-2013
004 89047861 NUT, FRT DIFF DRV P/GR (PART OF 1) DM (MX7) 2008-2013 01
005 19178812 FLANGE, FRT DIFF CARR (PART OF 1) DM (MX7) 2008-2013 01
006 19132939 SEAL, FRT DIFF DRV P/GR (PART OF 1) (RADIAL LIP DESIGN) (4.515) DM (JJB, MX7) 2010-2013 01
007 BEARING, FRT DIFF DRV P/GR INR (PART OF 1) 2011-2013
008 BEARING, FRT DIFF DRV P/GR INR (PART OF 1) 2011-2013
009 SHIM, FRT DIFF DRV P/GR BRG (PART OF 1) 2011-2013
010 89058602 BOLT, FRT DIFF CARR CVR (PART OF 1) (M8X1.25X30, 24THD) (FLANGE HEAD) (17OD) (5.476) DM (MX7) 2009-2013 AR
011 89047834 SEAL, FRT DIFF DRV P/GR (PART OF 1) (88.57MM ID X 2.62MM) (O-RING DESIGN) DM (JJB, MX7) 2010-2013 01
012 SPACER, FRT DIFF DRV P/GR BRG (PART OF 1) 2011-2013
013 BEARING, FRT DIFF DRV P/GR INR (PART OF 1) 2011-2013
014 BEARING, FRT DIFF DRV P/GR INR (PART OF 1) 2011-2013
015 20850012 SEAL, FRT WHL DRV INTER SHF HSG (PART OF 1) DM (MX7) 2008-2013 01
016 19256069 PLUG, FRT DIFF CARR OIL DRN (PART OF 1) (5.400) DM (MX7) 2010-2013 01
017 SHIM, FRT DIFF SI GR (PART OF 1) 2011-2013
018 BEARING, FRT DIFF DRV P/GR OTR (PART OF 1) 2011-2013
019 89047859 GASKET, FRT DIFF CARR CVR (PART OF 1) DM (MX7) 2008-2013 01
020 19132947 VENT, F/AXL (PART OF 1) (4.510) DM (MX7) 2008-2013 01
021 25968537 SEAL, F/AXL SHF (PART OF 1) (5.822) (ACDelco #291-331) DM (MX7) 2008-2013 01
022 89058602 BOLT, FRT DIFF CARR CVR (PART OF 1) (M8X1.25X30, 24THD) (FLANGE HEAD) (17OD) (5.476) DM (MX7) 2009-2013 AR
023 19256068 PLUG, FRT DIFF CARR OIL FIL (PART OF 1) (M20X1.5X16) (5.400) DM (MX7) 2010-2013 01
024 89047934 SEAL, FRT WHL DRV INTER SHF (PART OF 1) DM (MX7) 2008-2013 01
025 89047933 RETAINER, FRT WHL DRV INTER SHF (PART OF 1) DM (MX7) 2008-2013 01
026 89047931 SHAFT, FRT WHL DRV INTER (PART OF 1) DM (MX7) 2008-2013 01
102 89047929 BOLT, FRT DIFF R/GR (PART OF 1) DM (MX7) 2008-2013 10
103 SHAFT, FRT DIFF P/GR (PART OF 1) 2011-2013
104 CASE, FRT DIFF (PART OF 1) 2011-2013
105 GEAR, FRT DIFF RING (PART OF 1) 2011-2013
106 WASHER, FRT DIFF SI GR THR (PART OF 1) 2011-2013
107 GEAR, FRT DIFF SI (PART OF 1) 2011-2013
108 WASHER, FRT DIFF P/GR THR (PART OF 1) 2011-2013
109 GEAR, FRT DIFF PINION (PART OF 1) 2011-2013
111 GEAR, FRT DIFF DRV PINION (PART OF 1) 2011-2013
