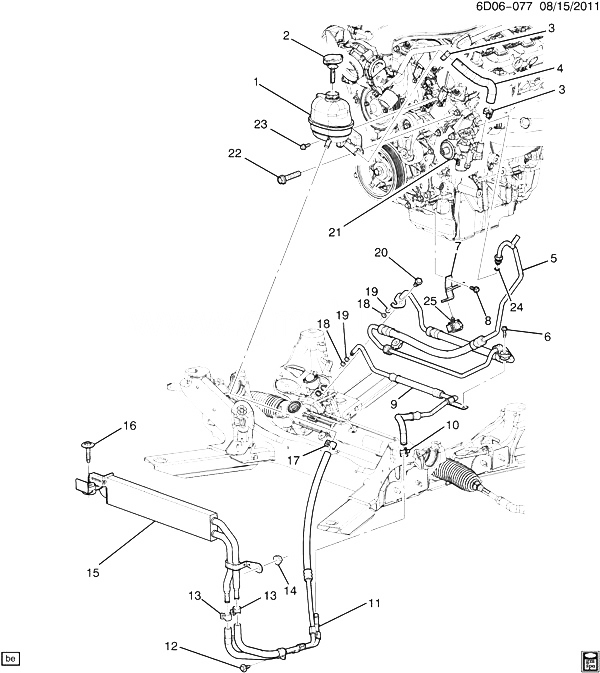

(6D06-077) 2010-2013 DR35-69 МАГИСТРАЛИ НАСОСА РУЛЕВОГО УПРАВЛЕНИЯ (REAR WHEEL DRIVE MN6,MX0) CADILLAC - CTS SEDAN 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 22765742 RESERVOIR, P/S FLUID (INCLS 3, 17, 22, 23) DR (LFW, LFX) (EXPORT) 2012-2013 01
002 22771254 CAP, P/S FLUID RSVR DR (EXPORT) 2011-2013 01
003 11516222 CLAMP, SPRINGBAND, HOSE DIA=23, WIDTH=15, 6298M, MM (PART OF 1, 4) 2010-2013 02
004 25821309 HOSE, P/S FLUID RSVR OTLT (INCLS 3) DR (LFX, LFW) (EXPORT) 2012-2013 01
005 25821312 HOSE, P/S GR INL (INCLS 18, 19, 24, 25) DR (LFW, LFX) (EXPORT) 2012-2013 01
006 11516484 BOLT/SCREW, M6X1X25, 17THD, 14.2 OD, 9.8, 7114M, MACH, 6MM P-POINT (P/S GR INL HOSE BRKT) 2010-2013 02
007 25940656 BRACKET, P/S GR INL PIPE CLIP DR (LFW, LFX, MX0) (EXPORT) 2013-2013 01
008 11588712 BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (P/S GR INL HOSE BRKT) 2010-2013 01
009 25821304 HOSE, P/S GR OTLT (INCLS 10, 18, 19) DR (LFX, LFW) (EXPORT) 2012-2013 01
010 11517127 CLAMP, SPRING, 17MM-NOM, BLK (PART OF 9) 2010-2013 01
011 20900056 HOSE, P/S FLUID CLR OTLT (INCLS 13, 17) DR (LFX, LFW) (EXPORT) 2012-2013 01
012 11514623 BOLT, HEX W/CON WA, M6X1X20 (P/S FLUID CLR BRKT) 2010-2013 01
013 11517127 CLAMP, SPRING, 17MM-NOM, BLK (PART OF 11) 2010-2013 02
014 11517397 NUT, HEX W/CON WA, 8X1.25, 28 O.D., 7.5 THK, 9, PEOR (FRT BPR ENGY ABS) 2010-2013 08
015 25821303 COOLER, P/S FLUID DR (EXPORT) 2010-2013 01
016 11516931 BOLT, FLAT WA METRIC HEX HD MACHINE, M8X1.25X50 (P/S FLUID CLR BRKT) 2010-2013 01
017 25878706 CLAMP, P/S FLUID RSVR INL HOSE (PART OF 1, 11) DR (EXPORT) 2010-2013 01
018 25948280 SEAL, P/S GR INL HOSE (O RING) (PART OF 5, 9) (GREEN) (8.6/8.86ID-1.7/1.86W) (PRESSURE O-RING) DR (LFW, LFX) 2012-2013 01
019 25948283 SEAL, P/S GR INL HOSE (PART OF 5, 9) (NATURAL) (12.08 OD-2.06W) (PRESSURE BACKING RING) DR (LFW, LFX) 2012-2013 01
020 11517937 BOLT, HWH, M8X1.25X22.1, 13.85 THD, 15 OD, 9.8, 7114M, MACH, 6175M ADH, MAT-PT (P/S GR INL PIPE BRKT) 2010-2013 01
021 25914590 PUMP, P/S (SEE GROUP 06.000 STEERING PUMP MOUNTING FOR DETAILED ILLUSTRATED VIEW) (ACDelco #25914590) DR (LFX, LFW, MN6, MX0) (EXPORT) 2012-2013 01
022 11518712 BOLT, HEX W/CON WA, M12X1.75X59, 53.6 THD, 24OD, 10.9, 7114M, MACH, 6175M, HDR (PART OF 1) 2010-2013 01
023 11518062 BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW14C-PT (PART OF 1) 2010-2013 01
024 25948282 SEAL, P/S GR INL HOSE (PUMP SIDE) (PART OF 5) DR (LFW, LFX) 2012-2013 01
025 20795155 CLIP, P/S GR INL HOSE (PART OF 5) DR (LFW, LFX, MN6, MX0) (EXPORT) 2012-2013 01
