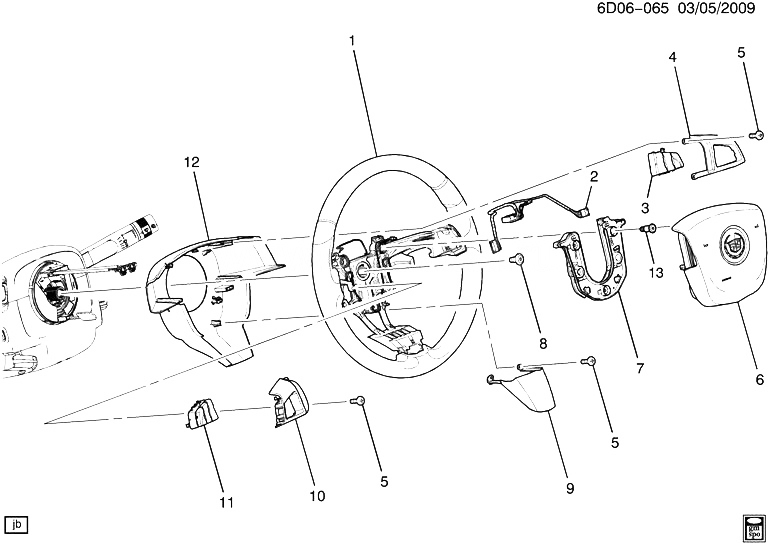

(6D06-065) 2011-2013 DM,DN,DR69 РУЛЕВОЕ КОЛЕСО (EXC VENTED/HEATED SEAT KB6, SHIFT CONTROL KB7) CADILLAC - CTS SEDAN 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20821266 WHEEL, STRG (INCLS 2-5, 7, 9-12) (COCOA) DM35-69 (NP5, 4AC) (EXC KB7) 2010-2013 01
001 22769473 WHEEL, STRG (INCLS 2-5, 7, 9-12) (EBONY) DN35-69 (N34, 4AL, 4AM, 4EV) (EXC KB7, 53F) 2013-2013 01
001 22769477 WHEEL, STRG (INCLS 2-5, 7, 9-12) (EBONY) DM35-69 (N34, WBL, 4AL, 4AM, 53F) (EXC KB7) 2013-2013 01
001 22898841 WHEEL, STRG (CODE 8841) (INCLS 2-5, 7, 9-12) (COCOA) DM35-69 (N30, UVD, 03F, 4AC) (EXC KB7) 2013-2013 01
001 22859512 WHEEL, STRG (INCLS 2-5, 7, 9-12) (EBONY) DN35-69 (N34, 4AL, 4AM, 4EV, 53F) (EXC KB7) 2013-2013 01
001 22859495 WHEEL, STRG (INCLS 2-5, 7, 9-12) (EBONY) DM35-69 (N30, 03F, 4AL, 4AM) (EXC KB7, UVD) 2011-2013 01
001 22859492 WHEEL, STRG (INCLS 2-5, 7, 9-12) (EBONY) DM (NP5, 4AL, 4AM, 4AR, 4EV) (EXC KB7) 2013-2013 01
001 22859492 WHEEL, STRG (INCLS 2-5, 7, 9-12) (EBONY) DR69 (NP5, 4AL, 4AM) (EXC KB7) 2013-2013 01
001 22859492 WHEEL, STRG (INCLS 2-5, 7, 9-12) (EBONY) DM47-69 (NP5, 4AL, 4AM, 4AR, 4EV) (EXC KB7) 2011-2013 01
001 22982697 WHEEL, STRG (INCLS 2-5, 7, 9-12) (EBONY) DM35-69 (N34, WBL, 4AL, 4AM, 53F) (EXC KB7) 2012-2013 01
001 20821266 WHEEL, STRG (INCLS 2-5, 7, 9-12) (COCOA) DR35-69 (NP5, 4AC) (EXC KB7) (EXPORT) 2010-2013 01
001 22859492 WHEEL, STRG (INCLS 2-5, 7, 9-12) (EBONY) DR35-69 (NP5, 4AL, 4AM) (EXC KB7) (EXPORT) 2010-2013 01
001 22898841 WHEEL, STRG (CODE 8841) (INCLS 2-5, 7, 9-12) (COCOA) DR35-69 (N30, UVD, 03F, 4AC) (EXC KB7) (EXPORT) 2013-2013 01
001 22859496 WHEEL, STRG (INCLS 2-5, 7, 9-12) (COCOA) DR35-69 (N30, 03F, 4AC) (EXC KB7, UVD) (EXPORT) 2011-2013 01
001 22859496 WHEEL, STRG (INCLS 2-5, 7, 9-12) (COCOA) DM35-69 (N30, 03F, 4AC) (EXC KB7, UVD) 2011-2013 01
001 22898840 WHEEL, STRG (INCLS 2-5, 7, 9-12) (EBONY) DM35-69 (N30, UVD, 03F, 4AL, 4AM) (EXC KB7) 2011-2013 01
002 25919020 HARNESS, STRG WHL PAD ACSRY WRG (PART OF 1) DN69 (N34) 2010-2013 01
002 20916641 HARNESS, STRG WHL PAD ACSRY WRG (PART OF 1) DM35-47-69 (N30, UVD, 03F) (EXC KB7) 2011-2013 01
002 25919020 HARNESS, STRG WHL PAD ACSRY WRG (PART OF 1) DM69 (NP5) (EXC KB7, WBP) 2011-2013 01
002 25919020 HARNESS, STRG WHL PAD ACSRY WRG (PART OF 1) DM35-47-69 (N30, 03F) (EXC KB7, UVD) 2011-2013 01
002 25919020 HARNESS, STRG WHL PAD ACSRY WRG (PART OF 1) DM69 (NP5, WBP, 53F) 2011-2013 01
002 25919020 HARNESS, STRG WHL PAD ACSRY WRG (PART OF 1) DN35-47-69 (N34) (EXC KB7, 53F) 2011-2013 01
002 25919020 HARNESS, STRG WHL PAD ACSRY WRG (PART OF 1) DM35-69 (N34, WBL, 53F) 2012-2013 01
002 20916641 HARNESS, STRG WHL PAD ACSRY WRG (PART OF 1) DR35-69 (N30, UVD, 03F) (EXC KB7) (EXPORT) 2011-2013 01
002 25919020 HARNESS, STRG WHL PAD ACSRY WRG (PART OF 1) DR35-69 (NP5) (EXC KB7) (EXPORT) 2011-2013 01
002 25919020 HARNESS, STRG WHL PAD ACSRY WRG (PART OF 1) DR35-69 (N30, 03F) (EXC KB7, UVD) (EXPORT) 2011-2013 01
003 25850372 SWITCH, RDO CONT (PART OF 1) (ARGENT) (9.649) D35-47-69 2011-2013 01
003 25850372 SWITCH, RDO CONT (PART OF 1) (ARGENT) D35-47-69 2011-2013 01
004 25919049 BEZEL, STRG WHL SPOKE CONT SW (PART OF 1) (SILVER) (3 OCLOCK TRIM PLATE) DM 2008-2013 01
004 25919049 BEZEL, STRG WHL SPOKE CONT SW (PART OF 1) (SILVER) (3 OCLOCK TRIM PLATE) DR 2009-2013 01
004 25919051 BEZEL, STRG WHL SPOKE CONT SW (PART OF 1) (BLACK) (3 OCLOCK TRIM PLATE) DN 2009-2013 01
005 25889493 BOLT, STRG WHL HORN SW (PART OF 1) (PAN HEAD, SPECIAL THREAD, 8 OD, 13 LENGTH, 1022 STL.) (6.512) DM35-47-69 (NP5, WBP, 53F) 2011-2013 06
005 25889493 BOLT, STRG WHL HORN SW (PART OF 1) (PAN HEAD, SPECIAL THREAD, 8 OD, 13 LENGTH, 1022 STL.) (6.512) DN (N34) 2011-2013 06
005 25889493 BOLT, STRG WHL HORN SW (PART OF 1) (PAN HEAD, SPECIAL THREAD, 8 OD, 13 LENGTH, 1022 STL.) (6.512) DM (N30, 03F) 2011-2013 06
005 25889493 BOLT, STRG WHL HORN SW (PART OF 1) (PAN HEAD, SPECIAL THREAD, 8 OD, 13 LENGTH, 1022 STL.) (6.512) DR35-47-69 (NP5) 2011-2013 06
005 25889493 BOLT, STRG WHL HORN SW (PART OF 1) (PAN HEAD, SPECIAL THREAD, 8 OD, 13 LENGTH, 1022 STL.) (6.512) DR (N30, 03F) 2011-2013 06
006 25943875 AIRBAG, STRG WHL (EBONY) (14.865) DM35-69 (4AL, 4AM, 4AR) (EXC EF7, Z49) 2011-2013 01
006 20936094 AIRBAG, STRG WHL (EBONY) (14.865) DM35-69 (EF7, Z49, 4AL, 4AM, 4AR) 2011-2013 01
006 20936095 AIRBAG, STRG WHL (COCOA) (14.865) DM35-69 (EF7, Z49, 4AC) 2011-2013 01
006 25943875 AIRBAG, STRG WHL (EBONY) (14.865) DN35-69 (4AL, 4AM, 4AR) 2011-2013 01
006 25943876 AIRBAG, STRG WHL (COCOA) (14.865) DM35-69 (4AC) (EXC EF7, Z49) 2011-2013 01
006 25943876 AIRBAG, STRG WHL (COCOA) (14.865) DR35-69 (4AC) (EXPORT) 2011-2013 01
006 25943875 AIRBAG, STRG WHL (EBONY) (14.865) DR35-69 (4AL, 4AM) (EXPORT) 2012-2013 01
007 25889495 CONTACT, STRG WHL HORN (PART OF 1) D69 2008-2013 01
008 11610164 BOLT, STRG WHL (M15X1.5X28.77) D 2008-2013 01
009 25919024 COVER, STRG WHL SPOKE LWR (PART OF 1) (BLACK) (6 OCLOCK TRIM PLATE) DN 2009-2013 01
009 20916638 COVER, STRG WHL SPOKE LWR (PART OF 1) (SILVER) (6 OCLOCK TRIM PLATE) DM (N30, UVD) 2011-2013 01
009 25919022 COVER, STRG WHL SPOKE LWR (PART OF 1) (SILVER) (6 OCLOCK TRIM PLATE) DM (NP5) 2011-2013 01
009 25919022 COVER, STRG WHL SPOKE LWR (PART OF 1) (SILVER) (6 OCLOCK TRIM PLATE) DM (N30) (EXC UVD) 2011-2013 01
009 25919022 COVER, STRG WHL SPOKE LWR (PART OF 1) (SILVER) (6 OCLOCK TRIM PLATE) DM (N34) 2012-2013 01
009 20916638 COVER, STRG WHL SPOKE LWR (PART OF 1) (SILVER) (6 OCLOCK TRIM PLATE) DR (N30, UVD) (EXPORT) 2011-2013 01
009 25919022 COVER, STRG WHL SPOKE LWR (PART OF 1) (SILVER) (6 OCLOCK TRIM PLATE) DR (NP5) (EXPORT) 2011-2013 01
009 25919022 COVER, STRG WHL SPOKE LWR (PART OF 1) (SILVER) (6 OCLOCK TRIM PLATE) DR (N30) (EXC UVD) (EXPORT) 2011-2013 01
010 25919045 BEZEL, STRG WHL SPOKE CONT SW (PART OF 1) (SILVER) (9 OCLOCK TRIM PLATE) DM 2008-2013 01
010 25919045 BEZEL, STRG WHL SPOKE CONT SW (PART OF 1) (SILVER) (9 OCLOCK TRIM PLATE) DR 2009-2013 01
010 25919047 BEZEL, STRG WHL SPOKE CONT SW (PART OF 1) (BLACK) (9 OCLOCK TRIM PLATE) DN 2009-2013 01
011 15851239 SWITCH, CRCONT (PART OF 1) (ACDelco #15851239) DM35-69 (NP5, 4AC, 4AL, 4AM, 4AR) 2010-2013 01
011 15912879 SWITCH, CRCONT (PART OF 1) (ACDelco #15912879) DM35-47-69 (N30) 2011-2013 01
011 15851239 SWITCH, CRCONT (PART OF 1) (ACDelco #15851239) DM35-69 (N34, WBL, 4AL, 4AM, 53F) (EXC KB7) 2012-2013 01
011 22769252 SWITCH, CRCONT (PART OF 1) (ACDelco #22769252) DN35-69 (N34) 2012-2013 01
011 15912879 SWITCH, CRCONT (PART OF 1) (ACDelco #15912879) DR35-69 (N30) (EXPORT) 2011-2013 01
011 15851239 SWITCH, CRCONT (PART OF 1) (ACDelco #15851239) DR35-69 (NP5, 4AL) (EXC KB7) (EXPORT) 2012-2013 01
012 SHROUD, STRG WHL (PART OF 1) 2011-2013
013 25889494 BOLT, STRG WHL HORN SW (TAPPING SCREW, SHLDR, 23 LENGTH, 13.5 OD, STL, ZN) DM35-69 (NP5) 2010-2013 03
013 25889494 BOLT, STRG WHL HORN SW (TAPPING SCREW, SHLDR, 23 LENGTH, 13.5 OD, STL, ZN) DN47-69 (N34) 2011-2013 03
013 25889494 BOLT, STRG WHL HORN SW (TAPPING SCREW, SHLDR, 23 LENGTH, 13.5 OD, STL, ZN) DM35-47-69 (NP5) (EXC KB7) 2011-2013 03
013 25889494 BOLT, STRG WHL HORN SW (TAPPING SCREW, SHLDR, 23 LENGTH, 13.5 OD, STL, ZN) DM35-47-69 (N30, 03F) 2011-2013 03
013 25889494 BOLT, STRG WHL HORN SW (TAPPING SCREW, SHLDR, 23 LENGTH, 13.5 OD, STL, ZN) DM69 (NP5, WBP, 53F) 2011-2013 03
013 25889494 BOLT, STRG WHL HORN SW (TAPPING SCREW, SHLDR, 23 LENGTH, 13.5 OD, STL, ZN) DR35-47-69 (N30, 03F) 2011-2013 03
013 25889494 BOLT, STRG WHL HORN SW (TAPPING SCREW, SHLDR, 23 LENGTH, 13.5 OD, STL, ZN) DR35-47-69 (NP5) (EXC KB7) 2011-2013 03
