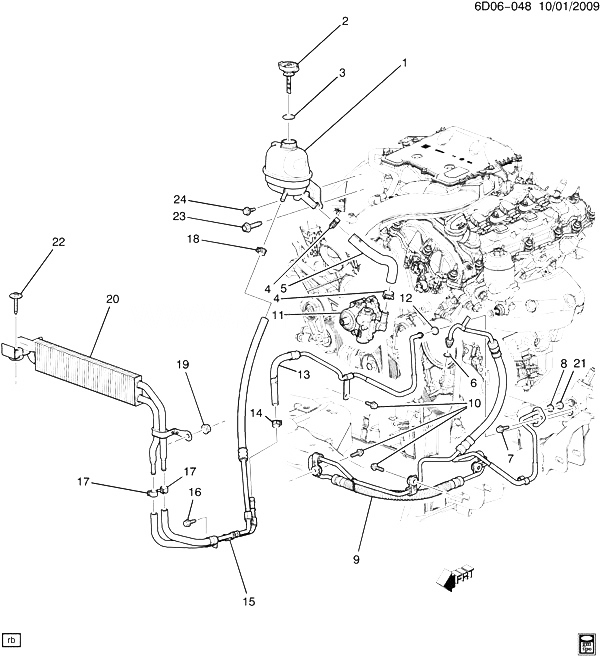

(6D06-048) 2011-2013 DM35-47-69 МАГИСТРАЛИ НАСОСА РУЛЕВОГО УПРАВЛЕНИЯ (ALL-WHEEL DRIVE MX7) CADILLAC - CTS SEDAN 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 22765742 RESERVOIR, P/S FLUID DM (LFW, LFX) 2012-2013 01
002 22771254 CAP, P/S FLUID RSVR (INCLS 3) DM 2011-2013 01
003 SEAL, P/S FLUID RSVR CAP (O RING) (PART OF 2) 2011-2013
004 11516222 CLAMP, SPRINGBAND, HOSE DIA=23, WIDTH=15, 6298M, MM (PART OF 5) 2008-2013 02
005 25821309 HOSE, P/S FLUID RSVR OTLT (INCLS 4) DM (LFX, LFW) 2012-2013 01
006 25948282 SEAL, P/S GR INL HOSE (PUMP SIDE) (PART OF 9) DM (LFW, LFX) 2012-2013 01
007 11517937 BOLT, HWH, M8X1.25X22.1, 13.85 THD, 15 OD, 9.8, 7114M, MACH, 6175M ADH, MAT-PT (P/S GR INL PIPE BRKT) 2008-2013 01
008 25948283 SEAL, P/S GR INL HOSE (PART OF 9) (NATURAL) (12.08 OD-2.06W) (PRESSURE BACKING RING) DM (LFW, LFX) 2012-2013 01
009 22882710 HOSE, P/S GR INL (INCLS 6, 8, 21) DM (LFW, LFX, MX7) 2012-2013 01
010 11609520 BOLT, P/S GR INL OTLT PIPE RET (M6X1X30, 19THD, 17OD) (8.977) D 2008-2013 01
010 11609520 BOLT, P/S GR INL OTLT PIPE RET (M6X1X30, 19THD, 17OD) (8.977) D 2008-2013 01
011 15224339 PUMP, P/S (SEE GROUP 06.000 STEERING PUMP MOUNTING FOR DETAILED ILLUSTRATED VIEW) (ACDelco #15224339) DM (LFX, LFW, MX7) 2012-2013 01
012 25948284 SEAL, P/S GR INL HOSE (O RING) (PART OF 13) (BLUE) DM (LFX, LFW, MN6, MX0, MX7) 2012-2013 01
013 25821306 HOSE, P/S GR OTLT (INCLS 12, 14) DM (LFX, LFW, MX7) 2012-2013 01
014 11517127 CLAMP, SPRING, 17MM-NOM, BLK (PART OF 13) 2008-2013 01
015 20900056 HOSE, P/S FLUID CLR OTLT (INCLS 17, 18) DM (LFX, LFW) 2012-2013 01
016 10199206 BOLT, P/S GR INL OTLT PIPE RET (M6X1X18) (4.785) DM 2008-2013 01
017 11517127 CLAMP, SPRING, 17MM-NOM, BLK (PART OF 15) 2008-2013 02
018 25878706 CLAMP, P/S FLUID RSVR INL HOSE (PART OF 15) DM 2009-2013 01
019 11516650 NUT, HEX W/CON WA, M8X1.25, 28 O.D., 7.5 THK, 9, GM7111M. (FRT BPR ENGY ABS) 2008-2013 08
020 25821303 COOLER, P/S FLUID DM 2009-2013 01
021 25948280 SEAL, P/S GR INL HOSE (O RING) (PART OF 9) (GREEN) (8.6/8.86ID-1.7/1.86W) (PRESSURE O-RING) DM (LF1, LLT, MN6, MX0, MX7) 2010-2013 01
022 11516931 BOLT, FLAT WA METRIC HEX HD MACHINE, M8X1.25X50 (P/S FLUID CLR BRKT) 2008-2013 01
023 11518712 BOLT, HEX W/CON WA, M12X1.75X59, 53.6 THD, 24OD, 10.9, 7114M, MACH, 6175M, HDR (P/S FLUID RSVR) 2008-2013 01
024 11588712 BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (P/S FLUID RSVR) 2008-2013 01
