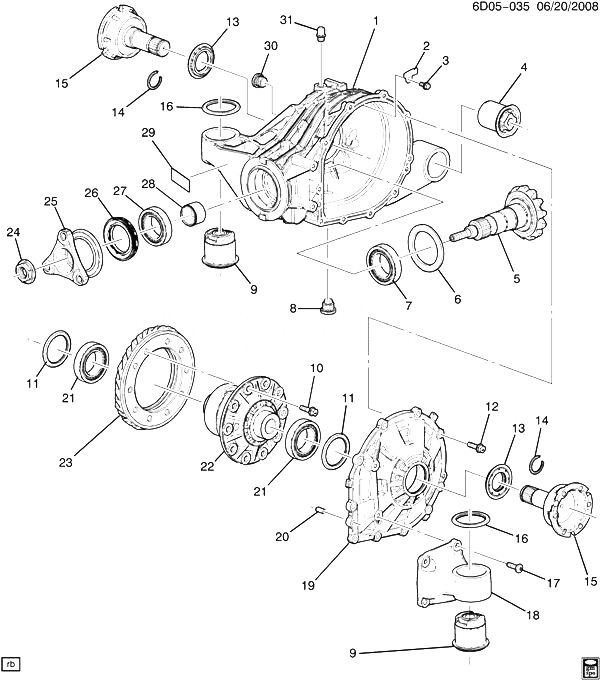

(6D05-035) 2010-2013 DM,DR35-69 КОРПУС ДИФФЕРЕНЦИАЛА PART 1 CADILLAC - CTS SEDAN 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25979053 CARRIER, DIFF (3.23 RATIO) (INCLS 2-31) DM (GU5) (EXC G80) 2008-2013 01
001 25979054 CARRIER, DIFF (3.23 RATIO) (INCLS 2-31) DM (GU5, G80) 2008-2013 01
001 25979061 CARRIER, DIFF (3.42 RATIO) (INCLS 2-31) DM (GU6) (EXC G80) 2008-2013 01
001 25979062 CARRIER, DIFF (3.42 RATIO) (INCLS 2-31) DM (GU6, G80) 2008-2013 01
001 20953704 CARRIER, DIFF (3.73 RATIO) (INCLS 2-31) DM (GT4) 2011-2013 01
001 25979053 CARRIER, DIFF (3.23 RATIO) (INCLS 2-31) DR (GU5) (EXC G80) (EXPORT) 2009-2013 01
001 25979054 CARRIER, DIFF (3.23 RATIO) (INCLS 2-31) DR (GU5, G80) (EXPORT) 2009-2013 01
001 25979061 CARRIER, DIFF (3.42 RATIO) (INCLS 2-31) DR (GU6) (EXC G80) (EXPORT) 2009-2013 01
001 25979062 CARRIER, DIFF (3.42 RATIO) (INCLS 2-31) DR (GU6, G80) (EXPORT) 2009-2013 01
002 SHIELD, R/AXL VENT (PART OF 1) 2010-2013
003 BOLT, R/AXL VENT SHLD (PART OF 1) 2010-2013
004 25795472 BUSHING, DIFF CARR (RRPART OF 1) DM 2008-2013 01
004 25795472 BUSHING, DIFF CARR (RR PART OF 1) DR 2009-2013 01
005 GEAR, DIFF PINION (PART OF 1) 2010-2013
006 SHIM, DIFF P/GR (PART OF 1) 2010-2013
007 BEARING, DIFF DRV P/GR INR (PART OF 1) 2010-2013
008 19256068 PLUG, DIFF CARR FILL (PART OF 1) (M20X1.5X16) DM 2012-2013 01
008 19256068 PLUG, DIFF CARR FILL (PART OF 1) (M20X1.5X16) DR (EXPORT) 2012-2013 01
009 25795473 BUSHING, DIFF CARR (PART OF 1) (RH LH FRT) DM 2008-2013 02
009 25795473 BUSHING, DIFF CARR (PART OF 1) (RH LH FRT) DR 2009-2013 02
010 89048225 BOLT, RR DIFF R/GR (PART OF 1) (M12 X 25 MM) DM 2011-2013 10
010 89048225 BOLT, RR DIFF R/GR (PART OF 1) (M12 X 25 MM) DR (EXPORT) 2011-2013 10
011 SHIM, DIFF BRG (PART OF 1) 2010-2013
012 89058602 BOLT, DIFF CARR CVR (PART OF 1) (M8X1.25X30, 24THD) (FLANGE HEAD) (17OD) (5.476) D 2008-2013 14
013 25995847 SEAL, R/AXL SHF (PART OF 1) (ACDelco #291-341) DM (GT4, GU5, GU6) 2008-2013 02
013 25995847 SEAL, R/AXL SHF (PART OF 1) (ACDelco #291-341) DR (GU5, GU6) (EXPORT) 2009-2013 02
014 12369463 RING, DIFF P/GR SHF RET (PART OF 1) (5.422) DM (GT4) 2011-2013 02
015 25795474 SHAFT, R/AXL (PART OF 1) DM 2008-2013 02
015 25795474 SHAFT, R/AXL (PART OF 1) DR (EXPORT) 2009-2013 02
016 25887411 SPACER, DIFF CARR (PART OF 1) DM 2008-2013 02
016 25887411 SPACER, DIFF CARR (PART OF 1) DR (EXPORT) 2009-2013 02
017 14081014 BOLT, DIFF CARR BRKT (PART OF 1) (M8X1.25X30, 26THD) (6 LOBE SOCKET) (PAN HEAD) (3.275) DM 2008-2013 04
017 14081014 BOLT, DIFF CARR BRKT (PART OF 1) (M8X1.25X30, 26THD) (6 LOBE SOCKET) (PAN HEAD) (3.275) DR 2009-2013 04
018 25795471 BRACKET, DIFF CARR (PART OF 1) DM 2008-2013 01
018 25795471 BRACKET, DIFF CARR (PART OF 1) DR (EXPORT) 2009-2013 01
019 COVER, DIFF CARR (PART OF 1) 2010-2013
020 89060175 PIN, R/AXL HSG CVR LOC (PART OF 1) (8MM) DM (GT4) 2011-2013 02
020 89060175 PIN, R/AXL HSG CVR LOC (PART OF 1) (8MM) DM (GU5) 2009-2013 02
020 89060175 PIN, R/AXL HSG CVR LOC (PART OF 1) (8MM) DR (GU5) (EXPORT) 2009-2013 02
021 BEARING, DIFF (PART OF 1) 2010-2013
022 DIFFERENTIAL, (PART OF 1) (SEE GROUP 05.000 DIFFERENTIAL CARRIER PART 2 FOR DETAILED ILLUSTRATED VIEW) 2010-2013
023 GEAR, DIFF RING (PART OF 1) 2010-2013
024 89058614 NUT, DIFF DRV P/GR (PART OF 1) DM, DN 2011-2013 01
024 89058614 NUT, DIFF DRV P/GR (PART OF 1) DR (EXPORT) 2011-2013 01
025 25861285 FLANGE, RR WHL DRV SHF (PART OF 1) DM 2008-2013 01
025 25861285 FLANGE, RR WHL DRV SHF (PART OF 1) DR (EXPORT) 2009-2013 01
026 25861283 SEAL, DIFF DRV P/GR (O RING) (PART OF 1) (5.469) DM (GT4) 2012-2013 01
026 25861283 SEAL, DIFF DRV P/GR (O RING) (PART OF 1) (5.469) DM (GU5, GU6) 2012-2013 01
026 25861283 SEAL, DIFF DRV P/GR (O RING) (PART OF 1) (5.469) DR (GU5, GU6) (EXPORT) 2012-2013 01
027 BEARING, DIFF DRV P/GR OTR (PART OF 1) 2010-2013
028 SPACER, DIFF DRV P/GR BRG (PART OF 1) 2010-2013
029 TAG, R/AXL IDENT (PART OF 1) 2010-2013
030 19256068 PLUG, DIFF CARR FILL (PART OF 1) (M20X1.5X16) DM 2012-2013 01
030 19256068 PLUG, DIFF CARR FILL (PART OF 1) (M20X1.5X16) DR (EXPORT) 2012-2013 01
031 19132947 VENT, R/AXL HSG (PART OF 1) (4.510) D69 2008-2013 01
