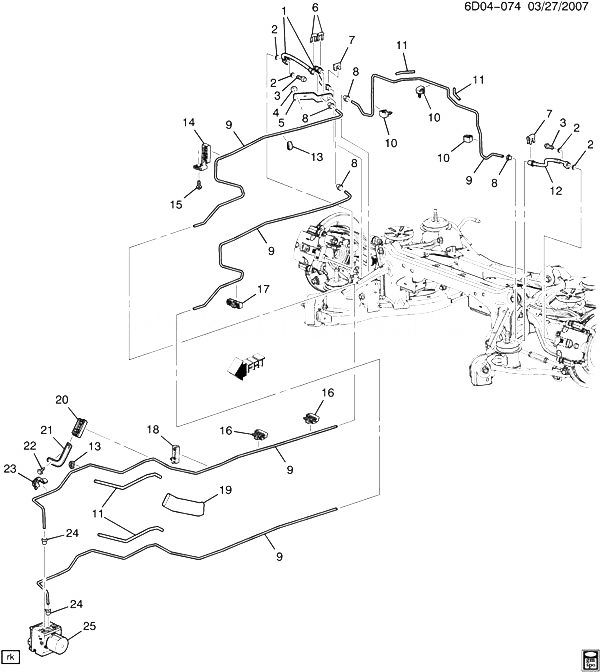

(6D04-074) 2009-2013 DM,DN,DR69 ТОРМОЗНЫЕ МАГИСТРАЛИ/ЗАДНЯЯ ЧАСТЬ CADILLAC - CTS SEDAN 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20772533 HOSE, RR BRK (INCLS 2, 3, 5-7) (ACDelco #176-1655) DN 2009-2013 01
001 25939291 HOSE, RR BRK (INCLS 2, 3, 5-7) (ACDelco #176-1693) DM 2010-2013 01
001 25939291 HOSE, RR BRK (INCLS 2, 3, 5-7) (ACDelco #176-1693) DR (EXPORT) 2010-2013 01
002 21012386 WASHER, RR BRK HOSE (PART OF 1, 12) (10.3X14.5X1.61) (COPPER) (ACDelco #21012386) D 2008-2013 04
003 BOLT, RR BRK HOSE (PART OF 1, 12) 2009-2013
004 11609411 NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (RR BRK HOSE BRKT) 2008-2013 02
005 BRACKET, RR BRK HOSE (PART OF 1) 2009-2013
006 11569742 RETAINER, RR BRK HOSE (PART OF 1) (28X25X4.7) (1 SIDED RETAINER) D 2008-2013 02
007 11569742 RETAINER, FRT BRK HOSE (PART OF 1) (28X25X4.7) (1 SIDED RETAINER) D 2008-2013 02
008 11569751 NUT, HX TUBE INVERTED FLARE, M10X1X16, SAE1010, GMW4707M (RR BRK PIPE) 2008-2013 04
009 19181732 PIPE, RR BRK FRT (5/16 X 16 FT) (BULK PIPE) (ACDelco #19181732) DN35-47-69 (LSA) 2011-2013 AR
010 15194329 CLIP, RR BRK PIPE (BLACK) (27X35X15) (HOLDS (1)3/16 NYCLAD TUBE) (W/TREE) D 2008-2013 03
011 88964150 PROTECTOR, BRK PIPE (FOR 3/16 PIPE) (HT SHRINK) D 2008-2013 AR
012 15818186 HOSE, RR BRK (INCLS 2, 3) (ACDelco #176-1653) DN 2009-2013 01
012 20853832 HOSE, RR BRK (INCLS 2, 3) (ACDelco #20853832) DM 2010-2013 01
012 20853832 HOSE, RR BRK (INCLS 2, 3) (ACDelco #20853832) DR (EXPORT) 2010-2013 01
013 25607191 RETAINER, BRK PIPE (21.5X10.0MM) (HOLDS (2)4.68-4.82 TUBES) DR 2010-2013 02
013 25607191 RETAINER, BRK PIPE (21.5X10.0MM) (HOLDS (2)4.68-4.82 TUBES) DM, DN 2010-2013 02
014 15870391 RETAINER, BRK FUEL PIPE (HOLDS (4) LINES, L-SHAPED) (CLIPS TO WELD STUD) D 2008-2013 01
014 15870391 RETAINER, BRK FUEL PIPE (HOLDS (4) LINES, L-SHAPED) (CLIPS TO WELD STUD) (3.162) D 2008-2013 01
015 11588337 BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (FUEL FLTR BRKT) 2008-2013 01
016 15223307 RETAINER, BRK FUEL PIPE (2 FUEL/VAPOR LINES) D 2008-2013 02
016 15223307 RETAINER, BRK FUEL PIPE (2 FUEL/VAPOR LINES) (3.162) D 2008-2013 02
017 15223304 CLIP, FUEL FEED EVAP EMIS FRT PIPE (HOLDS FOUR LINES) (3.890) DM 2008-2013 01
017 15223304 CLIP, FUEL FEED EVAP EMIS FRT PIPE (HOLDS FOUR LINES) (3.890) DN (LSA) 2009-2013 01
017 15223304 CLIP, FUEL FEED EVAP EMIS FRT PIPE (HOLDS FOUR LINES) (3.890) DR 2009-2013 01
018 15223306 RETAINER, BRK FUEL PIPE (2 FUEL/VAPORS LINE 2 BRAKE LINES) (W/TREE) D 2008-2013 01
018 15223306 RETAINER, BRK FUEL PIPE (2 FUEL/VAPORS LINE 2 BRAKE LINES) (W/TREE) (3.162) D 2008-2013 01
019 12477665 PROTECTOR, BRK PIPE (FOR 1/4 PIPE) (HT SHRINK) D 2008-2013 AR
020 15223308 RETAINER, BRK FUEL PIPE (THIS SPACER HOLDS (4) FUEL/VAPOR LINES) D 2008-2013 01
020 15223308 RETAINER, BRK FUEL PIPE (THIS SPACER HOLDS (4) FUEL/VAPOR LINES) (3.162) D 2008-2013 01
021 25761218 BRACKET, FUEL PIPE D 2008-2013 01
022 11514623 BOLT, HEX W/CON WA, M6X1X20 (FUEL FEED EVAP EMIS RTN PIPE CLIP BRKT) 2008-2013 01
023 25957289 RETAINER, FRT BRK PIPE (4 TUBE W/TREE) DM (MN6, MX0) 2009-2013 01
023 25957289 RETAINER, FRT BRK PIPE (4 TUBE W/TREE) DN 2009-2013 01
023 25957289 RETAINER, FRT BRK PIPE (4 TUBE W/TREE) DR (MN6, MX0) 2009-2013 01
024 11569750 NUT, HX FLARED TUBE, M12X1.0X17, 5.3 TUBE, SAE1010, GMW4707M (FRT BRK PIPE) 2008-2013 02
025 VALVE, BRK PRESS MOD (W/ELEK BRK TRACT CONT MDL) (SEE GROUP 04.000 BRAKE PRESSURE MODULATOR VALVE FOR DETAILED ILLUSTRATED VIEW) 2008-2013
