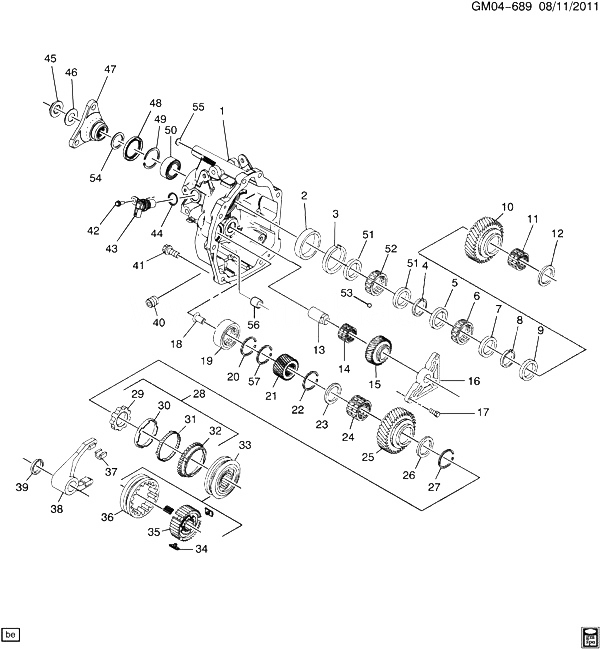

(GM04-689) 2011-2013 DN35-47-69 6-СКОРОСТНАЯ МЕХАНИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ PART 5 (MG9) EXTENSION HOUSING REVERSE IDLER GEAR CADILLAC - CTS SEDAN 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 19206208 EXTENSION, TRANS (INCLS 56) DN (MG9) 2009-2013 01
002 CUP, MAIN SHF RR BRG (PART OF 6) 2011-2013
003 12523058 RETAINER, MAIN SHF RR BRG (ACDelco #12523058) DN (MG9) 2009-2013 01
004 12523253 RING, MAIN SHF BRG RET (4.318) (ACDelco #12523253) DN (MG9) 2009-2013 02
005 12523056 WASHER, MAIN SHF RR BRG THR (4.416) DN (MG9) 2009-2013 02
006 12523057 BEARING, MAIN SHF RR (INCLS 2) (W/STRAIGHT ROLLERS) (ACDelco #S1314) DN (MG9) 2009-2013 01
007 12523056 WASHER, MAIN SHF RR BRG THR (4.416) DN (MG9) 2009-2013 02
008 89060014 RING, REV GR RET (4.384) (ACDelco #89060014) DN (MG9) 2009-2013 02
009 12523053 WASHER, REV GR THR (LOCATED BETWEEN REV GR REAR MAINSHAFT) DN (MG9) 2009-2013 01
010 19260952 GEAR, REV (DRVN) DN (MG9) 2012-2013 01
011 12523050 BEARING, REV GR (ACDelco #12523050) DN (MG9) 2009-2013 01
012 19178695 RETAINER, REV GR SYN INSERT DN (MG9) 2009-2013 01
013 12369469 SHAFT, REV IDLER GR (ACDelco #12369469) DN (MG9) 2009-2013 01
014 12523284 BEARING, REV IDLER GR (4.355) (ACDelco #12523284) DN (MG9) 2009-2013 01
015 19260949 GEAR, REV IDLER (ACDelco #19260949) DN (MG9) 2009-2013 01
016 19180050 BRACKET, REV IDLER GR SHF DN (MG9) 2009-2013 01
017 19180051 BOLT, REV IDLER GR SHF BRKT DN (MG9) 2009-2013 03
018 FUNNEL, TRANS LUB (PART OF 19) 2011-2013
019 89059987 BEARING, CNTR GR RR (INCLS 18) (ACDelco #89059987) DN (MG9) 2009-2013 01
020 89059988 RING, CNTR GR RR BRG RET (ACDelco #89059988) DN (MG9) 2009-2013 01
021 89059978 GEAR, REV CNTR (ACDelco #89059978) DN (MG9) 2009-2013 01
022 12523253 RING, 5TH GR RET (4.318) (ACDelco #12523253) DN (MG9) 2009-2013 01
023 12523053 WASHER, 5TH GR THR (LOCATED BETWEEN REV GR REAR MAINSHAFT) (4.419) D (MG9) 2009-2013 01
024 12523255 BEARING, 5TH GR (ACDelco #S1331) DN (MG9) 2009-2013 01
025 19260956 GEAR, 5TH DN (MG9) 2013-2013 01
026 19180038 SPACER, 5TH GR BRG DN (MG9) 2009-2013 01
027 12541299 RING, 5TH 6TH GR SYN HUB RET (.89 I.D.) (ACDelco #12541299) DN (MG9) 2009-2013 01
028 19260756 RING, 5TH GR BLOCKING (INCLS 29-32) DN (MG9) 2009-2013 01
029 19180521 WASHER, 5TH GR THR (PART OF 28) (ENCLOSURE RING) (4.419) DN (MG9) 2009-2013 01
030 CONE, 5TH 6TH GR SYN OTR ( (INNER) (PART OF 28) 2011-2013
031 CONE, 5TH 6TH GR SYN OTR (PART OF 28) 2011-2013
032 RING, 5TH GR BLOCKING (PART OF 28) 2011-2013
033 19260239 SYNCHRONIZER, 5TH 6TH GR (INCLS 34-36) (ACDelco #19260239) DN (MG9) 2009-2013 01
034 19178694 INSERT, 5TH 6TH GR SYN (PART OF 33) DN (MG9) 2009-2013 03
034 19178694 INSERT, REV GR SYN (PART OF 33) DN (MG9) 2013-2013 03
035 HUB, 5TH 6TH GR SYN (PART OF 33) 2011-2013
036 SLEEVE, 5TH 6TH GR SYN (PART OF 33) 2011-2013
037 12523208 INSERT, 5TH 6TH SHFT FORK (PART OF 38) DN (MG9) 2009-2013 02
038 19180046 FORK, 5TH 6TH SHFT (INCLS 37) DN (MG9) 2009-2013 01
039 12541299 RING, 5TH 6TH REV SHFT SHF RET (.89 I.D.) (4.384) (ACDelco #12541299) DN (MG9) 2009-2013 01
040 25522466 PLUG, 1/2-14 X 39/64 (TRANS OIL DRN) (ACDelco #25522466) 2009-2013 01
041 12523235 BOLT, TRANS EXTN (M10X1.5-40MM) (0.683) DN (MG9) 2009-2013 08
042 24232088 SENSOR, M/TRNS OUTPUT SPD (MATING CONN W/LEADS USE 19178093) (4.329) (ACDelco #213-3241) DN (LSA, MG9) 2009-2013 01
042 24232088 SENSOR, M/TRNS OUTPUT SPD (MATING CONN W/LEADS USE 19178093) (4.329) (ACDelco #213-3241) DN (LSA, MG9) 2009-2013 01
043 11561025 BOLT, HFH, M6X1X16, 13.5 THD, 14.2 OD, GMW25 STL, GMW3200, MACH, HDR-PT (VEH SPD SEN) 2009-2013 01
044 10475299 SEAL, VEH SPD SEN (O RING) (I.D. 18MM) (ACDelco #10475299) DN (LSA, MG9) 2009-2013 01
045 89059464 NUT, PROP SHF TRANS YOKE DN (LSA, MG9) 2009-2013 01
046 89059465 WASHER, PROP SHF TRANS YOKE DN (LSA, MG9) 2009-2013 01
047 19206238 YOKE, PROP SHF TRANS DN (LSA, MG9) 2009-2013 01
048 89059483 SEAL, MAIN SHF RR (ACDelco #89059483) DN (MG9) 2009-2013 01
049 19206236 RING, MAIN SHF RR BRG RET (ACDelco #19206236) DN (MG9) 2009-2013 01
050 19206227 BEARING, MAIN SHF RR (NEEDLE) (ACDelco #19206227) DN69 (MG9) 2009-2013 01
051 12523253 RING, VEH SPD SEN RELUCTOR WHL RET (4.318) (ACDelco #12523253) DN (MG9) 2009-2013 01
052 19206239 WHEEL, VEH SPD SEN RELUCTOR (ACDelco #19206239) DN (LSA, MG9) 2012-2013 01
053 19206240 BALL, SPEEDO DRV GR LOC DN (LSA, MG9) 2012-2013 01
054 19206228 SEAL, PROP SHF TRANS FLG (O RING) DN (LSA, MG9) 2009-2013 01
055 19206229 SEAL, SHFT CONT SHF (ACDelco #19206229) DN (MG9) 2009-2013 01
056 19133179 BUSHING, SHFT SHF (REV SHF SHFT) (PART OF 1) (ACDelco #19133179) D (MG9) 2009-2013 01
057 89059977 RING, CNTR DRV GR RET (4.419) (ACDelco #89059977) DN (MG9) 2009-2013 01
