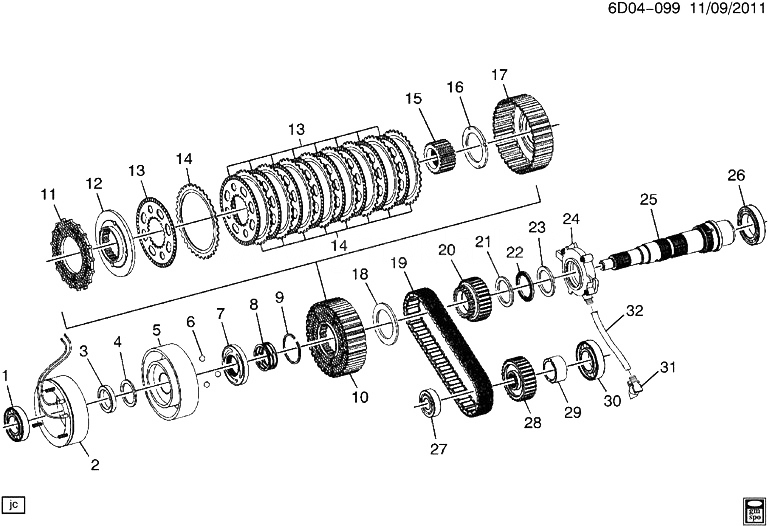

(6D04-099) 2011-2013 DM35-47-69 РАЗДАТОЧНАЯ КОРОБКА PART 2 ВНУТРЕННИЕ ДЕТАЛИ (ALL-WHEEL DRIVE MX7) CADILLAC - CTS SEDAN 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15580228 BEARING, TRFER CASE RR OUTPUT SHF RR (2 7/8 OD X 1 3/8 ID) (STMPD 13-45-130-001) DM 2008-2013 01
002 19208080 COIL, TRFER CASE TWO/FOUR WHL DRV CLU (SEE GROUP 04.000 TRANSFER CASE PART 1 CASE COMPONENTS FOR DETAILED ILLUSTRATED VIEW) DM 2010-2013 01
003 19208108 SHIM, TRFER CASE FOUR WHL DRV CLU (SELECT FIT 8.60-8.50 STAMPED 52) DM (MYB, MX7) 2008-2013 AR
003 19208108 SHIM, TRFER CASE FOUR WHL DRV CLU (SELECT FIT 8.60-8.50 STAMPED 52) DM (MYA) 2010-2013 AR
003 19208109 SHIM, TRFER CASE FOUR WHL DRV CLU (SELECT FIT 8.80-8.70 STAMPED 53) DM (MYA, MX7) 2010-2013 AR
003 19208110 SHIM, TRFER CASE FOUR WHL DRV CLU (SELECT FIT 9.00-8.90 STAMPED 54) DM (MYA, MX7) 2010-2013 AR
003 19208111 SHIM, TRFER CASE FOUR WHL DRV CLU (SELECT FIT 9.20-9.10 STAMPED 55) DM (MYA) 2010-2013 AR
003 19208112 SHIM, TRFER CASE FOUR WHL DRV CLU (SELECT FIT 9.40-9.30 STAMPED 56) DM (MYA, MX7) 2010-2013 AR
003 19208113 SHIM, TRFER CASE FOUR WHL DRV CLU (SELECT FIT 9.60-9.50 STAMPED 57) DM (MYA, MX7) 2012-2013 AR
003 19208114 SHIM, TRFER CASE FOUR WHL DRV CLU (SELECT FIT 9.80-9.70 STAMPED 58) DM (MYA, MX7) 2012-2013 AR
004 19208115 BEARING, TRFER CASE FOUR WHL DRV CLU HSG DM (MYA, MX7) 2010-2013 AR
005 HOUSING, TRFER CASE TWO/FOUR WHL DRV CLU COIL 2011-2013
006 19259590 ROLLER, TRFER CASE FRT OUTPUT SHF DRV SPKT BRG D (MX7) 2008-2013 AR
006 19259590 ROLLER, TRFER CASE FRT OUTPUT SHF DRV SPKT BRG DM (MYA) 2010-2013 AR
007 19208358 SPACER, TRFER CASE FRT OUTPUT SHF DRV SPKT BRG RLR DM (MYB, MX7) 2008-2013 AR
007 19208358 SPACER, TRFER CASE FRT OUTPUT SHF DRV SPKT BRG RLR D (MYA) 2010-2013 AR
008 19208357 SPRING, TRFER CASE FOUR WHL DRV CLU DM35-47-69 (MYA, MX7) 2012-2013 01
009 19208088 RING, TRFER CASE TWO/FOUR WHL DRV CLU RET DM (MYA, JJB, MX7) 2012-2013 01
010 19208098 CLUTCH, TRFER CASE FRT DRV AXLE VISCOUS (INCLS 12-17) DM (MYA, MX7) 2012-2013 01
011 ACTUATOR, TRFER CASE FOUR WHL DRV 2011-2013
012 PLATE, TRFER CASE FOUR WHL DRV CLU PRESS (PART OF 10) 2011-2013
013 PLATE, TRFER CASE FOUR WHL DRV CLU BKG (FRICTION) (PART OF 10) 2011-2013
014 PLATE, TRFER CASE FOUR WHL DRV CLU BKG (SEPERATOR) (PART OF 10) 2011-2013
015 PLATE, TRFER CASE FOUR WHL DRV CLU BKG (PART OF 10) 2011-2013
016 PLATE, TRFER CASE FOUR WHL DRV CLU BKG (SPRING) (PART OF 10) 2011-2013
017 HOUSING, TRFER CASE FOUR WHL DRV CLU (PART OF 10) 2011-2013
018 19208091 SPACER, TRFER CASE FRT OUTPUT SHF DRV SPKT DM (MYA, JJB, MX7) 2012-2013 01
019 19208072 CHAIN, TRFER CASE TWO/FOUR WHL DRV DM (MYA, MYB, JJB, MX7, FE1, FE2, FE3, FE4) 2010-2013 01
020 19208359 SPROCKET, TRFER CASE FRT OUTPUT SHF DRV DM (MYB, MX7) 2009-2013 01
020 19208359 SPROCKET, TRFER CASE FRT OUTPUT SHF DRV DM (MYA) 2010-2013 01
021 19208090 WASHER, TRFER CASE FRT OUTPUT SHF DRV SPKT THR DM 2008-2013 01
022 19208085 BEARING, TRFER CASE FRT OUTPUT SHF DRV SPKT DM 2008-2013 01
023 19208090 WASHER, TRFER CASE FRT OUTPUT SHF DRV SPKT THR DM 2008-2013 01
024 19208082 PUMP, TRFER CASE OIL DM (MYA, JJB, MX7) 2012-2013 01
025 19256369 SHAFT, TRFER CASE INPUT (2009 PRIOR MY USE T/W 24251229) DM (MYA, JJB, MX7) 2012-2013 01
026 15580230 BEARING, TRFER CASE INPUT SHF (BORG-WARNER) (4.510) DM (MYA, MYB, JJB, MX7) 2010-2013 01
027 19208078 BEARING, TRFER CASE FRT OUTPUT SHF RR DM (MYA, MYB, JJB, MX7) 2010-2013 01
028 19208360 SPROCKET, TRFER CASE TWO/FOUR WHL DRV DRVN DM (MYA, MX7) 2012-2013 01
029 19208089 SPACER, TRFER CASE FRT OUTPUT SHF DRVN SPKT DM (MYA, JJB, MX7) 2012-2013 01
030 88996633 BEARING, TRFER CASE FRT OUTPUT SHF FRT (ACDelco #88996633) DM (MYA, MX7) 2012-2013 01
031 19208084 SCREEN, TRFER CASE O/PMP DM (MYA, MYB, JJB, MX7) 2010-2013 01
032 19208083 HOSE, TRFER CASE O/PMP SUC DM (MYA, JJB, MX7) 2012-2013 01
