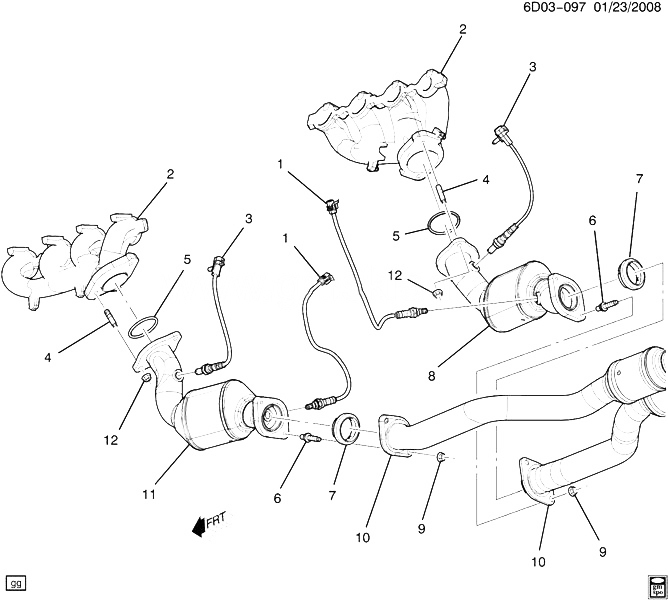

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12615194 |
SENSOR, HTD OXY (POSN 3) (POST CONVERTER) (ACDelco #213-4257) |
DN (LSA) |
2009-2013 |
02 |
| 002 |
|
MANIFOLD, EXH (SEE GROUP 00.000 ENGINE ASM-MANIFOLDS FUEL RELATED PARTS FOR DETAILED ILLUSTRATED VIEW) |
|
2009-2013 |
|
| 003 |
12607410 |
SENSOR, HTD OXY (POSN 2) (ACDelco #213-4403) (PRE-CONVERTER) |
DN (LSA) |
2009-2013 |
02 |
| 004 |
11569946 |
STUD, STRAIGHT, M8X1.25X38, M8X1.25X12, W/EXT SOC, 56 OAL, 10.9, GM6164M (PART OF 8, 11) |
|
2009-2013 |
04 |
| 005 |
24505057 |
GASKET, EXH MANIF PIPE (PART OF 8, 11) (SEAL CTLTC CONV (O-RING TYPE.)) |
DN (LSA) |
2009-2013 |
02 |
| 006 |
11610853 |
STUD, EXH PIPE (PART OF 8, 11) (FLANGE, M10X1.5X20, M10X1.5X40, 12 OD) |
DN (LSA) |
2013-2013 |
02 |
| 007 |
12555555 |
SEAL, EXH MANIF PIPE (PART OF 8, 11) |
DN (LSA) |
2009-2013 |
02 |
| 008 |
22940824 |
CONVERTER, 3WAY CTLTC (INCLS 4-7) |
DN (LSA) |
2013-2013 |
01 |
| 009 |
15032594 |
NUT, CTLTC CONV (HEX M10X1.5) (ATTACH EXH MANIFOLD PIPE) (3.613) |
DN |
2009-2013 |
04 |
| 010 |
|
MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (SEE GROUP 03.000 EXHAUST SYSTEM REAR FOR DETAILED ILLUSTRATED VIEW) |
|
2009-2013 |
|
| 011 |
22940825 |
CONVERTER, 3WAY CTLTC (INCLS 4-7) |
DN (LSA) |
2013-2013 |
01 |
| 012 |
11517996 |
NUT, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (EXH MUFF) (ACDelco #11517996) |
|
2009-2013 |
04 |
