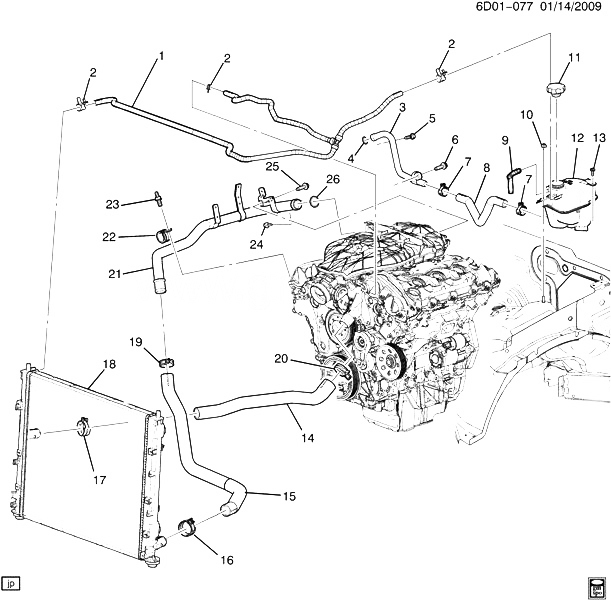

(6D01-077) 2012-2013 DM,DR35-69 ШЛАНГИ И ТРУБКИ РАДИАТОРА (LFW/3.0-5,LFX/3.6-3) CADILLAC - CTS SEDAN 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 22805728 HOSE, RAD SURGE TK INL DM 2012-2013 01
001 22805728 HOSE, RAD SURGE TK INL DR (EXPORT) 2012-2013 01
002 11571098 CLAMP, SPRINGBAND, 14MM NOMINAL DIA, 15MM WIDTH, STL PER GM6298M, GMW140 (RAD SURGE TK INL HOSE) 2010-2013 03
003 12633398 PIPE, RAD SURGE TK OTLT (INCLS 4) DM 2010-2013 01
003 12633398 PIPE, RAD SURGE TK OTLT (INCLS 4) DR (EXPORT) 2010-2013 01
004 12623461 SEAL, RAD SURGE TK OTLT PIPE (O RING) (PART OF 3) (8.846) (ACDelco #12623461) D 2010-2013 01
005 11588740 BOLT, HFH, M10X1.5X40, 30 THD, 22.3 OD, 10.9, GMW3359, M-PT (RAD SURGE TK OTLT PIPE) (ACDelco #11588740) 2010-2013 01
006 11588712 BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (RAD SURGE TK OTLT PIPE) 2010-2013 01
007 11570615 CLAMP, HOSE SPRINGBAND, 26 NOMINAL DIA, 15 THK, STL, ROBO (RAD SURGE TK ENG HOSE) 2010-2013 02
008 25942705 HOSE, RAD SURGE TK ENG (407MM LONG) DM 2010-2013 01
008 25942705 HOSE, RAD SURGE TK ENG (407MM LONG) DR (EXPORT) 2010-2013 01
009 HOSE, SURGE TK OVFL (PART OF 12) 2012-2013
010 11609411 NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (RAD SURGE TK) 2010-2013 01
011 20898801 CAP, RAD SURGE TK (GRAPHIC LABEL) (ACDelco #RC116) DM, DN 2010-2013 01
011 20898801 CAP, RAD SURGE TK (GRAPHIC LABEL) (ACDelco #RC116) DR (EXPORT) 2010-2013 01
012 15267707 TANK, RAD SURGE (INCLS 9) (ACDelco #15267707) D35-69 2010-2013 01
013 11609540 BOLT, HWH, M6X1X20, 16.15 THD, 17 OD, 8.8, GMW4205, HDR PT. (RAD SURGE TK) (8.977) 2010-2013 01
014 25940624 HOSE, RAD INL DM 2012-2013 01
014 25940624 HOSE, RAD INL DR35-69 (LFW, LFX) (EXPORT) 2012-2013 01
015 20914855 HOSE, RAD OTLT DM (LFW, LFX) 2012-2013 01
015 20914855 HOSE, RAD OTLT DR (LFW, LFX) (EXPORT) 2012-2013 01
016 11570869 CLAMP, SPRINGBAND, 41MM NOMINAL DIA, 15MM WIDTH, STEEL, GRAY ROBO. (RAD OTLT HOSE RAD) 2010-2013 01
017 11570869 CLAMP, SPRINGBAND, 41MM NOMINAL DIA, 15MM WIDTH, STEEL, GRAY ROBO. (RAD INL HOSE RAD) 2010-2013 01
018 RADIATOR, (SEE GROUP 01.000 RADIATOR FOR DETAILED ILLUSTRATED VIEW) 2010-2013
019 11570869 CLAMP, SPRINGBAND, 41MM NOMINAL DIA, 15MM WIDTH, STEEL, GRAY ROBO. (RAD OTLT HOSE END) 2010-2013 01
020 11570613 CLAMP, SPRINGBAND, 48 NOMINAL DIA, 15 THK, STL, ROBO W/T-CLIP. (RAD INL HOSE ENG) 2010-2013 01
021 12613161 PIPE, RAD OTLT (INCLS 22, 26) DM (LFW, LFX) 2012-2013 01
021 12613161 PIPE, RAD OTLT (INCLS 22, 26) DR (LFW, LFX) (EXPORT) 2012-2013 01
022 12613744 CLIP, RAD OTLT PIPE (PART OF 21) DM (LFW, LFX) 2012-2013 01
022 12613744 CLIP, RAD OTLT PIPE (PART OF 21) DR (LFW, LFX) (EXPORT) 2012-2013 01
023 24574534 STUD, RAD OTLT HOSE CLIP BRKT (M6X1X20) DM (LFW) 2012-2013 01
023 24574534 STUD, RAD OTLT HOSE CLIP BRKT (M6X1X20) DM (LFX) 2012-2013 01
023 24574534 STUD, RAD OTLT HOSE CLIP BRKT (M6X1X20) DR (LFW) (EXPORT) 2012-2013 01
023 24574534 STUD, RAD OTLT HOSE CLIP BRKT (M6X1X20) DR (LFX) (EXPORT) 2012-2013 01
024 11588723 BOLT, HFH, M8X1.25X25, 18 THD, 18 OD, 8.8 STL, GMW3359, M-PT (RAD OTLT PIPE) 2010-2013 01
025 11588738 BOLT, HFH, M10X1.5X30.4, 22.5 THD, 22.3 OD, 10.9, GMW3359, M- POINT (RAD OTLT PIPE) 2010-2013 01
026 12623519 SEAL, RAD OTLT PIPE (O RING) (PART OF 21) (ACDelco #12623519) DM (LFW, LFX) 2012-2013 01
026 12623519 SEAL, RAD OTLT PIPE (O RING) (PART OF 21) (ACDelco #12623519) DR (LFW, LFX) (EXPORT) 2012-2013 01
