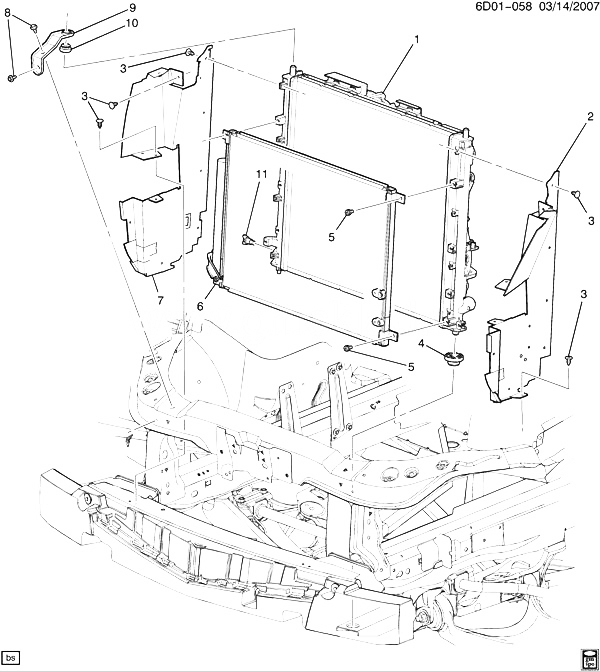

(6D01-058) 2012-2013 DM,DR35-69 КРЕПЛЕНИЕ РАДИАТОРА И СВЯЗАННЫЕ ДЕТАЛИ (LFW/3.0-5,LFX/3.6-3) CADILLAC - CTS SEDAN 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
006 20929423 CONDENSER, A/C (SEE GROUP 09.000 A/C REFIGERATION SYSTEM FOR DETAILED ILLUSTRATED VIEW) (ACDelco #15-63543) DM 2008-2013 01
006 20929423 CONDENSER, A/C (SEE GROUP 09.000 A/C REFIGERATION SYSTEM FOR DETAILED ILLUSTRATED VIEW) (ACDelco #15-63543) DR (EXPORT) 2009-2013 01
007 25895887 BAFFLE, RAD AIR SI (INCLS 3) DM 2008-2013 01
007 25895887 BAFFLE, RAD AIR SI (INCLS 3) DR (EXPORT) 2009-2013 01
008 11561674 BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (RAD UPR MT BRKT) 2008-2013 04
009 15267706 BRACKET, RAD UPR (INCLS 10) DM 2009-2013 02
009 15267706 BRACKET, RAD UPR (INCLS 10) DR (EXPORT) 2009-2013 02
010 INSULATOR, RAD UPR (PART OF 9) 2012-2013
011 19129764 PLUG, RAD DRN (PART OF 1) DM 2008-2013 01
011 19129764 PLUG, RAD DRN (PART OF 1) DR (EXPORT) 2009-2013 01
001 20983746 RADIATOR, (INCLS 4, 11) (ACDelco #21793) DM (LFX) 2012-2013 01
001 15932855 RADIATOR, (INCLS 4, 11) (ACDelco #21751) DM (LFW, MYA) 2012-2013 01
001 20762979 RADIATOR, (INCLS 4, 11) (ACDelco #21755) DM (LFW, MV7) 2012-2013 01
001 15932855 RADIATOR, (INCLS 4, 11) (ACDelco #21751) DR (LFW, MYA) (EXPORT) 2012-2013 01
001 20762979 RADIATOR, (INCLS 4, 11) (ACDelco #21755) DR (LFW, MV7) (EXPORT) 2012-2013 01
001 20983746 RADIATOR, (INCLS 4, 11) (ACDelco #21793) DR (LFX, MYA) (EXPORT) 2012-2013 01
002 25895886 BAFFLE, RAD AIR SI (INCLS 3) DM 2008-2013 01
002 25895886 BAFFLE, RAD AIR SI (INCLS 3) DR (EXPORT) 2009-2013 01
003 RETAINER, RAD AIR BFL (PART OF 2, 7) 2012-2013
004 15932850 INSULATOR, RAD LWR (PART OF 1) D 2008-2013 02
005 11570324 BOLT, A/C CNDSR (M6X1X14, 9 THD) D 2008-2013 04
