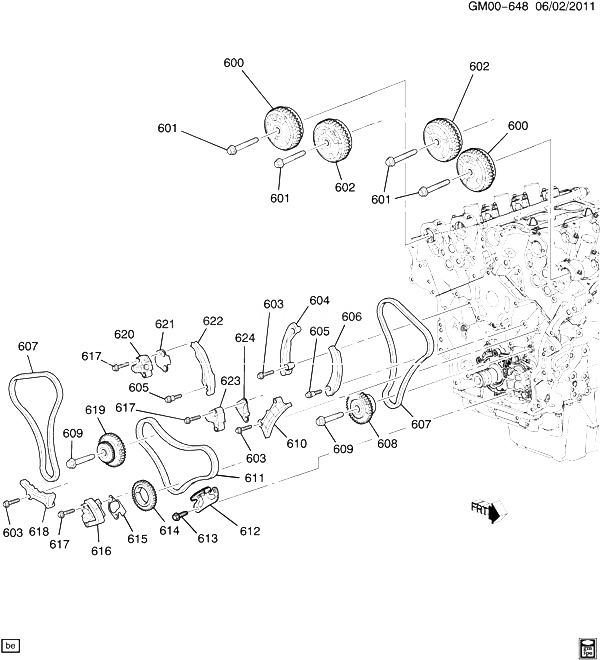

(GM00-648) 2012-2013 DM,DR35-69 ДВИГАТЕЛЬ В СБОРЕ-3.0L V6 PART 6 ЦЕПЬ РЕГУЛИРОВКИ ФАЗ ГАЗОРАСПРЕДЕЛЕНИЯ И НАТЯЖИТЕЛЬ (LFW/3.0-5) CADILLAC - CTS SEDAN 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
600 12614464 ACTUATOR, CM/SHF POSN (EXH) (EXH) DM (LFW, LFX) 2012-2013 02
600 12614464 ACTUATOR, CM/SHF POSN (EXH) (EXH) DR (LFW, LFX) 2012-2013 02
601 11588279 BOLT, HFH, M10X1.5X80, 26 THD, 22.3 O.D., 10.9, GM4277M (CM/SHF POSN ACTR) 2012-2013 04
602 12626160 ACTUATOR, CM/SHF POSN (INT. USE T/W WASHER 12632859) (4 SCREWS ON BACKPLATE) (DO NOT USE A WASHER WITH FRONT CAM CAP MARKED 12634613) DM (LFW, LFX) 2012-2013 01
602 12626161 ACTUATOR, CM/SHF POSN (4 SCREWS ON BACKPLATE) (DO NOT USE A WASHER WITH FRONT CAM CAP MARKED12634613) (INT) DM (LFW, LFX) 2012-2013 01
602 12626160 ACTUATOR, CM/SHF POSN (INT. USE T/W WASHER 12632859) (4 SCREWS ON BACKPLATE) (DO NOT USE A WASHER WITH FRONT CAM CAP MARKED 12634613) DR (LFW, LFX) (EXPORT) 2012-2013 01
602 12626161 ACTUATOR, CM/SHF POSN (INT) (4 SCREWS ON BACKPLATE) (DO NOT USE A WASHER WITH FRONT CAM CAP MARKED 12634613) DR (LFW, LFX) (EXPORT) 2012-2013 01
603 11588255 BOLT, HFH, REDUCED BODY, M8X1.25X45, 22 THD, 18 O.D., 8.8, 3179GMW (PART OF 604, 610, 618) (8.900) (ACDelco #11588255) 2012-2013 06
604 12623514 GUIDE, TMG CHAIN (INCLS 603) (PIVOT ARM) DM (LFW, LFX) 2012-2013 01
604 12623514 GUIDE, TMG CHAIN (INCLS 603) (PIVOT ARM) DR (LFW, LFX) 2012-2013 01
605 11561619 BOLT, M8X1.25 6H 43.0, GMW25 (8.8) STL, GMW3179 CODE C (TMG CHAIN TENSR) 2012-2013 02
606 12623513 GUIDE, TMG CHAIN (PIVOT ARM) DM (LFX) 2012-2013 01
606 12623513 GUIDE, TMG CHAIN (PIVOT ARM) DR (LFX) 2012-2013 01
607 12633452 CHAIN, CM/SHF INTER DRV (SECONDARY) (*KIT1) DM (LFX) 2012-2013 02
607 12633452 CHAIN, CM/SHF INTER DRV (SECONDARY) (*KIT1) DR (LFX) 2012-2013 02
608 12612839 SPROCKET, TMG CHAIN IDLER (INCLS 609) (IDLER LH) (0.736) DM (LFW, LFX) 2012-2013 01
608 12612839 SPROCKET, TMG CHAIN IDLER (INCLS 609) (IDLER LH) (0.736) DR (LFW, LFX) (EXPORT) 2012-2013 01
609 11588252 BOLT, HFH, RDUCD BDY, M6X1X70, 18 THD, 14.2 O.D., 8.8, GMW3179 CODE G (PART OF 608, 619) 2012-2013 02
610 12600461 GUIDE, TMG CHAIN (INCLS 603) (2 MOUNTING HOLES) (SECONDARY) DM (LFW) 2012-2013 01
610 12600461 GUIDE, TMG CHAIN (INCLS 603) (2 MOUNTING HOLES) (SECONDARY) DR (LFW) 2012-2013 01
611 12633451 CHAIN, CM/SHF INTER DRV (PRIMARY) (*KIT1) DM (LFW, LFX) 2012-2013 01
611 12633451 CHAIN, CM/SHF INTER DRV (PRIMARY) (*KIT1) DR (LFW, LFX) 2012-2013 01
612 12586959 GUIDE, TMG CHAIN (2 MOUNTING HOLES) (LOWER PRIMARY) DM (LFX) 2012-2013 01
612 12586959 GUIDE, TMG CHAIN (2 MOUNTING HOLES) (LOWER PRIMARY) DR (LFX) 2012-2013 01
613 11588725 BOLT, HFH, M8X1.25X35, 25 THD, 18 OD, 8.8 STL, GMW3359, M-PT (TMG CHAIN GDE) 2012-2013 02
614 12645465 SPROCKET, CR/SHF DM (LFW, LFX) 2012-2013 01
614 12645465 SPROCKET, CR/SHF DR (LFW, LFX) (EXPORT) 2012-2013 01
615 12589477 GASKET, TMG CHAIN HSG (PRIMARY) (*KIT1) (ACDelco #12589477) DM (LFX) 2012-2013 01
615 12589477 GASKET, TMG CHAIN HSG (PRIMARY) (*KIT1) (ACDelco #12589477) DR (LFX) 2012-2013 01
616 12609263 TENSIONER, CM/SHF INTER DRV CHAIN (LESS BOLTS, GSKT) (*KIT1) (ACDelco #12609263) DM (LFW, LFX) 2012-2013 01
616 12609263 TENSIONER, CM/SHF INTER DRV CHAIN (LESS BOLTS, GSKT) (*KIT1) (ACDelco #12609263) DR (LFW, LFX) (EXPORT) 2012-2013 01
617 11588255 BOLT, HFH, REDUCED BODY, M8X1.25X45, 22 THD, 18 O.D., 8.8, 3179GMW (TMG CHAIN TENSR) (8.900) (ACDelco #11588255) 2012-2013 06
618 12597417 GUIDE, TMG CHAIN (INCLS 603) (UPPER PRIMARY) DM (LFX) 2012-2013 01
618 12597417 GUIDE, TMG CHAIN (INCLS 603) (UPPER PRIMARY) DR (LFX) 2012-2013 01
619 12612838 SPROCKET, TMG CHAIN IDLER (INCLS 609) (0.736) DM (LFW, LFX) 2012-2013 01
619 12612838 SPROCKET, TMG CHAIN IDLER (INCLS 609) (0.736) DR (LFW, LFX) (EXPORT) 2012-2013 01
620 12609259 TENSIONER, TMG CHAIN (SECONDARY) (LESS BOLTS, GSKT) (*KIT1) (ACDelco #12609259) DM (LFW, LFX) 2012-2013 01
620 12609259 TENSIONER, TMG CHAIN (SECONDARY) (LESS BOLTS, GSKT) (*KIT1) (ACDelco #12609259) DR (LFW, LFX) (EXPORT) 2012-2013 01
621 12589479 GASKET, TMG CHAIN HSG (*KIT1) (ACDelco #12589479) DM (LFW, LFX) 2012-2013 01
621 12589479 GASKET, TMG CHAIN HSG (*KIT1) (ACDelco #12589479) DR (LFW, LFX) (EXPORT) 2012-2013 01
622 12600462 GUIDE, TMG CHAIN (2 MOUNTING HOLES) (SECONDARY) DM (LFX) 2012-2013 01
622 12600462 GUIDE, TMG CHAIN (2 MOUNTING HOLES) (SECONDARY) DR (LFX) 2012-2013 01
623 12609261 TENSIONER, TMG CHAIN (SECONDARY) (LESS BOLTS, GSKT) (*KIT1) (ACDelco #12609261) DM (LFW, LFX) 2012-2013 01
623 12609261 TENSIONER, TMG CHAIN (SECONDARY) (LESS BOLTS, GSKT) (*KIT1) (ACDelco #12609261) DR (LFW, LFX) (EXPORT) 2012-2013 01
624 12589478 GASKET, TMG CHAIN HSG (*KIT1) (ACDelco #12589478) DM (LFW, LFX) 2012-2013 01
624 12589478 GASKET, TMG CHAIN HSG (*KIT1) (ACDelco #12589478) DR (LFW, LFX) (EXPORT) 2012-2013 01
K01 12651450 CHAIN PKG, TMG (INCLS 607, 611, 615, 616, 620, 621, 623, 624) (ACDelco #12651450) DM (LFW, LFX) 2013-2013 01
K01 12651450 CHAIN PKG, TMG (INCLS 607, 611, 615, 616, 620, 621, 623, 624) (ACDelco #12651450) DR (LFW, LFX) (EXPORT) 2013-2013 01
