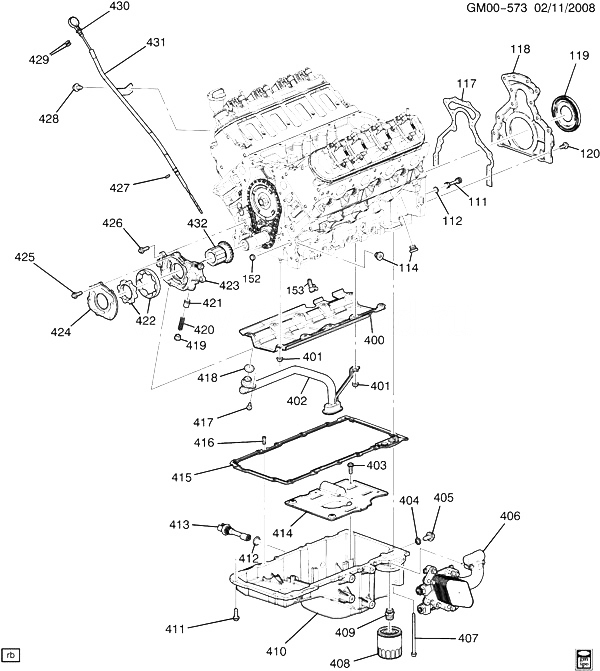

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 111 |
12573460 |
PLUG, ENG BLK OIL GAL (INCLS 112) (15.68MM DIA) (INCLS O-RING SEAL (N.S.S.) |
D (LSA) |
2009-2013 |
01 |
| 112 |
|
SEAL, ENG BLK OIL GAL PLUG (O RING) (PART OF 111) |
|
2011-2013 |
|
| 114 |
11588949 |
PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (ENG BLK OIL GAL) |
|
2009-2013 |
02 |
| 117 |
12639249 |
GASKET, CR/SHF RR OIL SEAL HSG (PART OF 118) |
DN (LSA) |
2010-2013 |
01 |
| 118 |
12639250 |
HOUSING, CR/SHF RR OIL SEAL (INCLS 117, 119, 120) |
DN (LSA) |
2010-2013 |
01 |
| 119 |
89060436 |
SEAL KIT, CR/SHF RR OIL (PART OF 118) (REVERSE LIP SEAL, INCL INSTRUCTION SHEET) |
DN (LSA) |
2009-2013 |
01 |
| 120 |
11588723 |
BOLT, HFH, M8X1.25X25, 18 THD, 18 OD, 8.8 STL, GMW3359, M-PT (PART OF 118) |
|
2009-2013 |
12 |
| 152 |
09427693 |
PLUG, CUP 5/8, CORROSION RESISTANT STL (ENG BLK OIL GAL) (1.531) |
|
2009-2013 |
01 |
| 153 |
12601222 |
NOZZLE, PSTN OIL |
DN (LSA) |
2009-2013 |
08 |
| 400 |
12611129 |
DEFLECTOR, CR/SHF OIL |
DN (LSA) |
2009-2013 |
01 |
| 401 |
11609746 |
NUT, HFH, M8X1.25, 8.9THK, 17.6 O.D., 10 STL, GMW3200, PREV TORQUE (CR/SHF OIL DFL) |
|
2009-2013 |
08 |
| 402 |
12621299 |
SCREEN, O/PMP (W/SUC PIPE) (INCLS 418) |
DN (LSA) |
2009-2013 |
01 |
| 403 |
11519133 |
BOLT, SELF TAP, M6X1X20, 13.2 O.D. (PART OF 410) |
|
2009-2013 |
07 |
| 404 |
12616850 |
SEAL, OIL PAN DRN PLUG (O RING) (PART OF 405, 410) |
DN (LSA) |
2010-2013 |
01 |
| 405 |
11562588 |
PLUG, OIL PAN DRN (INCLS 404) (PART OF 410) (M12X1.75X25) (W/SEAL) (EXC MAGNET) |
DN (LSA) |
2009-2013 |
01 |
| 406 |
12606576 |
COOLER, ENG OIL (SEE GROUP 01.000 ENGINE OIL COOLER LINES FOR DETAILED ILLUSTRATED VIEW) (COOLER ASM) (ACDelco #12606576) |
DN (LSA) |
2009-2013 |
01 |
| 407 |
12554990 |
BOLT, OIL PAN (PART OF 410) (M6X1.0X136) |
DN (LSA) |
2009-2013 |
02 |
| 408 |
89017524 |
FILTER, OIL (PART OF 410) (W/O TOP MOUNTED FILTER BYPASS VALVE) (ACDelco #PF48) (DURAGUARD) |
DN (LSA) |
2010-2013 |
01 |
| 409 |
12600225 |
FITTING, OIL FLTR (PART OF 410) |
DN (LSA) |
2009-2013 |
01 |
| 410 |
12631828 |
PAN, OIL (INCLS 403-405, 407-409, 411-416) |
DN (LSA) |
2010-2013 |
01 |
| 411 |
11515758 |
BOLT, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (PART OF 410) |
|
2009-2013 |
13 |
| 412 |
|
SEAL, ENG OIL LVL SEN (PART OF 410, 413) |
|
2011-2013 |
|
| 413 |
12603781 |
SENSOR, ENG OIL LVL TEMP (INCLS 412) (PART OF 410) (ACDelco #12603781) |
DN (LSA) |
2009-2013 |
01 |
| 414 |
12577904 |
BAFFLE, OIL PAN (PART OF 410) |
DN (LSA) |
2010-2013 |
01 |
| 415 |
12612350 |
GASKET, OIL PAN (PART OF 410) |
DN (LSA) |
2010-2013 |
01 |
| 416 |
12558759 |
RIVET, OIL PAN GSKT (PART OF 410) |
DN (LSA) |
2009-2013 |
02 |
| 417 |
11588712 |
BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (O/PMP SUC PIPE) |
|
2009-2013 |
02 |
| 418 |
12557752 |
SEAL, O/PMP (O RING) (PART OF 402) (BLUE) |
DN (LSA) |
2009-2013 |
01 |
| 419 |
|
PLUG, OIL PRESS RLF VLV BORE (PART OF 423) |
|
2011-2013 |
|
| 420 |
|
SPRING, OIL PRESS RLF VLV (PART OF 423) |
|
2011-2013 |
|
| 421 |
|
VALVE, OIL PRESS RLF (PART OF 423) |
|
2011-2013 |
|
| 422 |
|
GEAR SET, O/PMP (PART OF 423) |
|
2011-2013 |
|
| 423 |
12612289 |
PUMP, OIL (INCLS 419-422, 424, 425) |
DN (LSA) |
2009-2013 |
01 |
| 424 |
|
COVER, O/PMP (PART OF 423) |
|
2011-2013 |
|
| 425 |
11519133 |
BOLT, SELF TAP, M6X1X20, 13.2 O.D. (PART OF 423) |
|
2009-2013 |
07 |
| 426 |
11515758 |
BOLT, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (O/PMP) |
|
2009-2013 |
04 |
| 427 |
24504031 |
SEAL, OIL LVL IND TUBE (O RING) (PART OF 431) (RED) |
DN (LSA) |
2009-2013 |
01 |
| 428 |
11588736 |
BOLT, HFH, M10X1.5X20, 10 THD, 22.3 O.D., 10.9, GMW3359 (OIL LVL IND TUBE) |
|
2009-2013 |
01 |
| 429 |
24504031 |
SEAL, OIL LVL IND (O RING) (PART OF 430) (RED) |
DN (LSA) |
2009-2013 |
01 |
| 430 |
12584737 |
INDICATOR, OIL LVL (INCLS 429) (INCLS HANDLE, SEAL) |
DN (LSA) |
2010-2013 |
01 |
| 431 |
12584738 |
TUBE, OIL LVL IND (INCLS 427) |
DN (LSA) |
2010-2013 |
01 |
| 432 |
12556582 |
SPROCKET, CR/SHF |
DN (LSA) |
2010-2013 |
01 |
