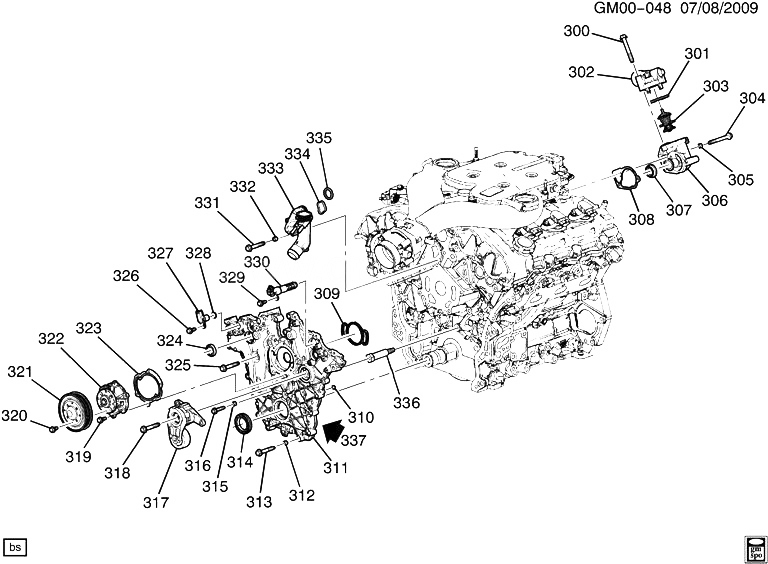

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 300 |
11588719 |
BOLT, HFH, M6X1X60, 18MM THD, 14.2 O.D., 8.8, 3359GMW (ENG COOL THERM HSG) (*KIT1) |
|
2012-2013 |
02 |
| 301 |
12582472 |
SEAL, ENG COOL THERM (*KIT1) (ACDelco #12582472) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 301 |
12582472 |
SEAL, ENG COOL THERM (*KIT1) (ACDelco #12582472) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
01 |
| 302 |
|
HOUSING, ENG COOL THERM UPR (*KIT1) |
|
2012-2013 |
|
| 303 |
|
THERMOSTAT, ENG COOL (W/WAT INL) (*KIT1) |
|
2012-2013 |
|
| 304 |
11588720 |
BOLT, HFH, M6X1X70, 18 THD, 14.2 OD, 8.8, GMW3359, MAT POINT. (ENG COOL THERM HSG) (*KIT1) |
|
2012-2013 |
03 |
| 305 |
11518792 |
RETAINER, ENG COOL THERM HSG BOLT (FOR M6 BOLT, LENGTH 7MM, WALL THICKNESS 0.60, THERMOPLASTIC) (*KIT1) (1.428) |
DM (LFW, LFX) |
2012-2013 |
03 |
| 305 |
11518792 |
RETAINER, ENG COOL THERM HSG BOLT (FOR M6 BOLT, LENGTH 7MM, WALL THICKNESS 0.60, THERMOPLASTIC) (*KIT1) (1.428) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
03 |
| 306 |
|
HOUSING, ENG COOL THERM LWR (*KIT1) |
|
2012-2013 |
|
| 307 |
12584325 |
SEAL, ENG COOL THERM HSG (O RING) (*KIT1) (ACDelco #12584325) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 307 |
12584325 |
SEAL, ENG COOL THERM HSG (O RING) (*KIT1) (ACDelco #12584325) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
01 |
| 308 |
12625923 |
GASKET, ENG COOL THERM HSG (*KIT1) (ACDelco #12625923) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 308 |
12625923 |
GASKET, ENG COOL THERM HSG (*KIT1) (ACDelco #12625923) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
01 |
| 309 |
12622550 |
SEAL, W/PMP (PART OF 311) (INSIDE THE FRONT COVER) (ACDelco #12622550) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 309 |
12622550 |
SEAL, W/PMP (PART OF 311) (INSIDE THE FRONT COVER) (ACDelco #12622550) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
01 |
| 310 |
22531637 |
PIN, ENG FRT CVR LOC (PART OF 311) (8MM DIA, 12MM LONG) (DOWEL) (0.413) |
DM (LFW, LFX) |
2012-2013 |
02 |
| 310 |
22531637 |
PIN, ENG FRT CVR LOC (PART OF 311) (8MM DIA, 12MM LONG) (DOWEL) (0.413) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
02 |
| 311 |
12643744 |
COVER, ENG FRT (W/ W/PMP) (INCLS 309, 310, 312-319, 322-328) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 311 |
12643744 |
COVER, ENG FRT (W/ W/PMP) (INCLS 309, 310, 312-319, 322-328) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
01 |
| 312 |
|
RETAINER, ENG FRT CVR BOLT (PART OF 311) |
|
2012-2013 |
|
| 313 |
11519171 |
BOLT, ENG FRT CVR (PART OF 311) (M8X1.25X50) (3.275) |
DM (LFX) |
2012-2013 |
17 |
| 313 |
11519171 |
BOLT, ENG FRT CVR (11519171) (M8X1.25X50) (3.275) |
DR (LFX) |
2012-2013 |
17 |
| 314 |
12608750 |
SEAL, CR/SHF FRT OIL (PART OF 311) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
01 |
| 314 |
12608750 |
SEAL, CR/SHF FRT OIL (PART OF 311) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 315 |
11518792 |
RETAINER, ENG FRT CVR BOLT (PART OF 311) (FOR M6 BOLT, LENGTH 7MM, WALL THICKNESS 0.60, THERMOPLASTIC) (1.428) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 315 |
11518792 |
RETAINER, ENG FRT CVR BOLT (PART OF 311) (FOR M6 BOLT, LENGTH 7MM, WALL THICKNESS 0.60, THERMOPLASTIC) (1.428) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
01 |
| 315 |
11588327 |
RETAINER, ENG FRT CVR BOLT (PART OF 311) (M8 BOLT) (4.128) |
DM (LFW, LFX) |
2012-2013 |
AR |
| 315 |
11588327 |
RETAINER, ENG FRT CVR BOLT (PART OF 311) (M8 BOLT) (4.128) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
AR |
| 316 |
11570139 |
BOLT, HFH, M6X1X33, 25 THD, 14.2 OD, 10.9, GMW4700 (ZN-NI). (PART OF 311) |
|
2012-2013 |
02 |
| 317 |
12626644 |
TENSIONER, DRV BELT (PART OF 311) (ACDelco #12626644) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 317 |
12626644 |
TENSIONER, DRV BELT (PART OF 311) (ACDelco #12626644) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
01 |
| 318 |
11588730 |
BOLT, HFH, FULL BODY, 22THD, 18 OD, 8.8, GMW3359.M-PT. (PART OF 311) (ACDelco #11588730) |
|
2012-2013 |
01 |
| 319 |
11562426 |
BOLT, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (PART OF 311) |
|
2012-2013 |
06 |
| 320 |
11588940 |
BOLT, HEX HD, W/CON SPR WA, M6X1X14.55, 8.45 THD, 13.3O.D., 8.8.GMW3359 (W/PMP PUL) |
|
2012-2013 |
04 |
| 321 |
12611587 |
PULLEY, W/PMP (ACDelco #12611587) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 321 |
12611587 |
PULLEY, W/PMP (ACDelco #12611587) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
01 |
| 322 |
12637479 |
PUMP KIT, WAT (W/GSKT) (PART OF 311) (MUST REPLACE WATER PUMP BOLTS, BOLTS ARE SINGLE USE ONLY) (ACDelco #251-742) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
01 |
| 322 |
12637479 |
PUMP KIT, WAT (W/GSKT) (PART OF 311) (MUST REPLACE WATER PUMP BOLTS, BOLTS ARE SINGLE USE ONLY) (ACDelco #251-742) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 323 |
12634750 |
GASKET, W/PMP (PART OF 311) (ACDelco #251-2052) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 323 |
12634750 |
GASKET, W/PMP (PART OF 311) (ACDelco #251-2052) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
01 |
| 324 |
12593717 |
SEAL, CM/SHF POSN ACTR SOL VLV (O RING) (PART OF 311) |
DM (LFW, LFX) |
2012-2013 |
04 |
| 324 |
12593717 |
SEAL, CM/SHF POSN ACTR SOL VLV (O RING) (PART OF 311) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
04 |
| 325 |
11588730 |
BOLT, HFH, FULL BODY, 22THD, 18 OD, 8.8, GMW3359.M-PT. (PART OF 311) (ACDelco #11588730) |
|
2012-2013 |
01 |
| 326 |
11562426 |
BOLT, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (PART OF 311) |
|
2012-2013 |
01 |
| 327 |
12615371 |
SENSOR, CM/SHF POSN (PART OF 311) (INCLS 328) (ACDelco #213-4592) |
DM (LFW, LFX) |
2012-2013 |
04 |
| 327 |
12615371 |
SENSOR, CM/SHF POSN (PART OF 311) (INCLS 328) (ACDelco #213-4592) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
04 |
| 328 |
|
SEAL, CM/SHF POSN ACTR SOL VLV (O RING) (PART OF 311, 327) |
|
2012-2013 |
|
| 329 |
11588712 |
BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (CM/SHF POSN ACTR SOL VLV) |
|
2012-2013 |
04 |
| 330 |
12636175 |
VALVE, CM/SHF POSN ACTR SOL |
DM (LFW, LFX) |
2012-2013 |
04 |
| 330 |
12636175 |
VALVE, CM/SHF POSN ACTR SOL |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
04 |
| 331 |
11519972 |
BOLT, WAT OTLT (PART OF 333) (M6X1X50) (3.336) |
DM (LFW, LFX) |
2012-2013 |
02 |
| 331 |
11519972 |
BOLT, WAT OTLT (PART OF 333) (M6X1X50) (3.336) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
02 |
| 332 |
12570372 |
RETAINER, WAT OTLT (PART OF 333) |
DM (LFW, LFX) |
2012-2013 |
02 |
| 332 |
12570372 |
RETAINER, WAT OTLT (PART OF 333) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
02 |
| 333 |
12625268 |
OUTLET, WAT (INCLS 331, 332, 334, 335) (ACDelco #15-11056) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 333 |
12625268 |
OUTLET, WAT (INCLS 331, 332, 334, 335) (ACDelco #15-11056) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
01 |
| 334 |
12566429 |
SEAL, WAT OTLT (PART OF 333) (ACDelco #12566429) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 334 |
12566429 |
SEAL, WAT OTLT (PART OF 333) (ACDelco #12566429) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
01 |
| 335 |
12584040 |
SEAL, CLNT OTLT (O RING) (PART OF 333) (ACDelco #15-32584) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 335 |
12584040 |
SEAL, CLNT OTLT (O RING) (PART OF 333) (ACDelco #15-32584) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
01 |
| 336 |
11610796 |
STUD, ENG FRT CVR (M8X1.25X17) (W/DOUBLE SHOULDER) |
DM (LFW, LFX) |
2012-2013 |
02 |
| 336 |
11610796 |
STUD, ENG FRT CVR (M8X1.25X17) (W/DOUBLE SHOULDER) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
02 |
| 337 |
12378521 |
SEALANT, RTV ENGINE SILICONE 5.3OZ CART (ENG FRT CVR) (ACDelco #10-2010) |
|
2012-2013 |
AR |
| K01 |
12638185 |
HOUSING, ENG COOL THERM (INCLS 300-308) (ACDelco #15-81708) |
DM (LFW, LFX) |
2012-2013 |
01 |
| K01 |
12638185 |
HOUSING, ENG COOL THERM (INCLS 300-308) (ACDelco #15-81708) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
01 |
