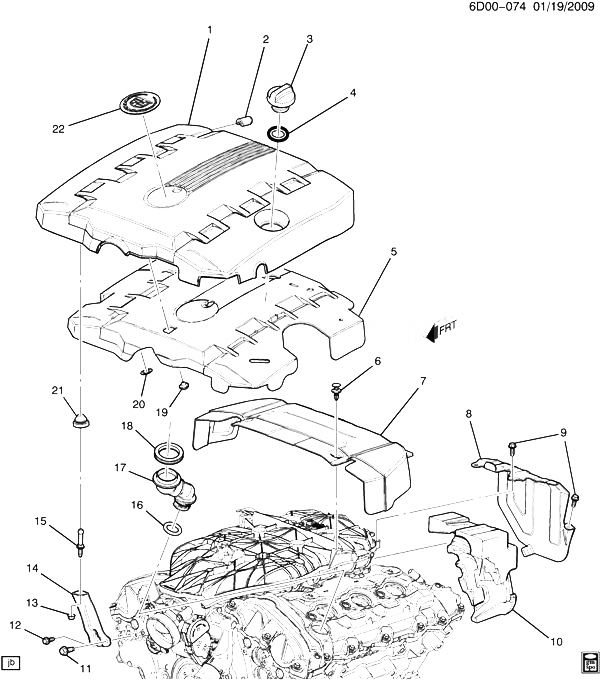

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12632150 |
COVER, INT MANIF (INCLS 2, 5, 18-22) (ENGINE COVER) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 001 |
12632150 |
COVER, INT MANIF (INCLS 2, 5, 18-22) (ENGINE COVER) (3.265) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 001 |
12632150 |
COVER, INT MANIF (INCLS 2, 5, 18-22) (ENGINE COVER) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
01 |
| 001 |
12632150 |
COVER, INT MANIF (INCLS 2, 5, 18-22) (ENGINE COVER) (3.265) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
01 |
| 002 |
24507878 |
INSULATOR, F/INJR SIGHT SHLD BRKT (PART OF 1) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 002 |
24507878 |
INSULATOR, F/INJR SIGHT SHLD BRKT (PART OF 1) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
01 |
| 003 |
12642516 |
CAP, OIL FIL (PART OF 17) (INCLS 4) (TOP HALF SHOULD SAY DEXOS AND BOTTOM HALF 5W-30) (ACDelco #FC243) |
DM (LFW, LFX) |
2013-2013 |
01 |
| 003 |
12642516 |
CAP, OIL FIL (PART OF 17) (INCLS 4) (TOP HALF SHOULD SAY DEXOS AND BOTTOM HALF 5W-30) (ACDelco #FC243) |
DR (LFW, LFX) (EXPORT) |
2013-2013 |
01 |
| 004 |
12593348 |
SEAL, OIL FIL CAP (O RING) (PART OF 3, 17) (27.94MM I.D.) (SIZE #320) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 004 |
12593348 |
SEAL, OIL FIL CAP (O RING) (PART OF 3, 17) (27.94MM I.D.) (SIZE #320) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
01 |
| 005 |
|
INSULATOR, INT MANIF CVR (PART OF 1) |
|
2012-2013 |
|
| 006 |
11589290 |
RETAINER, PUSH-IN, FITS 6.5 HOLE, 4.5 -7.0 THK PNL, NYLON 6/6 GMP.PA66.0 (UPR INT MANIF SIGHT SHLD) |
|
2010-2013 |
02 |
| 007 |
12639005 |
INSULATOR, INT MANIF |
DM (LFW, LFX) |
2012-2013 |
01 |
| 008 |
12642664 |
SHIELD, FUEL PIPE |
DM |
2012-2013 |
01 |
| 008 |
12642664 |
SHIELD, FUEL PIPE |
DR (EXPORT) |
2012-2013 |
01 |
| 009 |
11588712 |
BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (FUEL PIPE SHLD) |
|
2010-2013 |
03 |
| 010 |
12643423 |
SHIELD, ENG RR NOISE |
DM (LFW, LFX) |
2012-2013 |
01 |
| 010 |
12643423 |
SHIELD, ENG RR NOISE |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
01 |
| 011 |
11588723 |
BOLT, HFH, M8X1.25X25, 18 THD, 18 OD, 8.8 STL, GMW3359, M-PT (INT MANIF SIGHT SHLD) |
|
2010-2013 |
01 |
| 012 |
11588712 |
BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (INT MANIF SIGHT SHLD) |
|
2010-2013 |
01 |
| 013 |
11516075 |
NUT, HFH SELF LK, M6X1, 7.7THK, 14.2 O.D., 9, PZOR (PART OF 14) |
|
2010-2013 |
01 |
| 014 |
12616618 |
BRACKET, INT MANIF SIGHT SHLD (INCLS 13, 15) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 014 |
12616618 |
BRACKET, INT MANIF SIGHT SHLD (INCLS 13, 15) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
01 |
| 015 |
11588967 |
STUD, BALL W/HFH, M6X1X20.65, 14.2 O.D., 8.8, GMW3359 (PART OF 14) |
|
2010-2013 |
01 |
| 016 |
12593348 |
SEAL, OIL FIL TUBE (O RING) (PART OF 17) (27.94MM I.D.) (SIZE #320) (1.758) |
DM (LFW) |
2012-2013 |
01 |
| 016 |
12593348 |
SEAL, OIL FIL TUBE (O RING) (PART OF 17) (27.94MM I.D.) (SIZE #320) (1.758) |
DR (LFW) (EXPORT) |
2012-2013 |
01 |
| 017 |
12650616 |
TUBE, OIL FIL (INCLS 3, 4, 16) |
DR (LFW, LFX, MYA, MX0) (EXPORT) |
2013-2013 |
01 |
| 017 |
12650616 |
TUBE, OIL FIL (INCLS 3, 4, 16) |
DM (LFW, LFX, MYA, MX0) |
2012-2013 |
01 |
| 018 |
12591714 |
GROMMET, UPR INT MANIF SIGHT SHLD (PART OF 1) (60MM OD @ TOP) (ROUND TOP BOTTOM) |
DM (LFW) |
2012-2013 |
01 |
| 018 |
12591714 |
GROMMET, UPR INT MANIF SIGHT SHLD (PART OF 1) (60MM OD @ TOP) (ROUND TOP BOTTOM) |
DR (LFW) |
2012-2013 |
01 |
| 019 |
|
INSULATOR, F/INJR SIGHT SHLD BRKT (PART OF 1) |
|
2012-2013 |
|
| 020 |
10042521 |
NUT, INT MANIF INSL (PART OF 1) (7.831) |
DM (LFW, LFX) |
2012-2013 |
04 |
| 020 |
10042521 |
NUT, INT MANIF INSL (PART OF 1) (7.831) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
04 |
| 021 |
12591715 |
GROMMET, UPR INT MANIF SIGHT SHLD (PART OF 1) (32MM OD @ TOP) (ROUND AT TOP/TAPERED CONICAL BOTTOM) |
DM (LFW) |
2012-2013 |
01 |
| 021 |
12591715 |
GROMMET, UPR INT MANIF SIGHT SHLD (PART OF 1) (32MM OD @ TOP) (ROUND AT TOP/TAPERED CONICAL BOTTOM) |
DR (LFW) |
2012-2013 |
01 |
| 022 |
|
EMBLEM, INT MANIF CVR (PART OF 1) |
|
2012-2013 |
|
