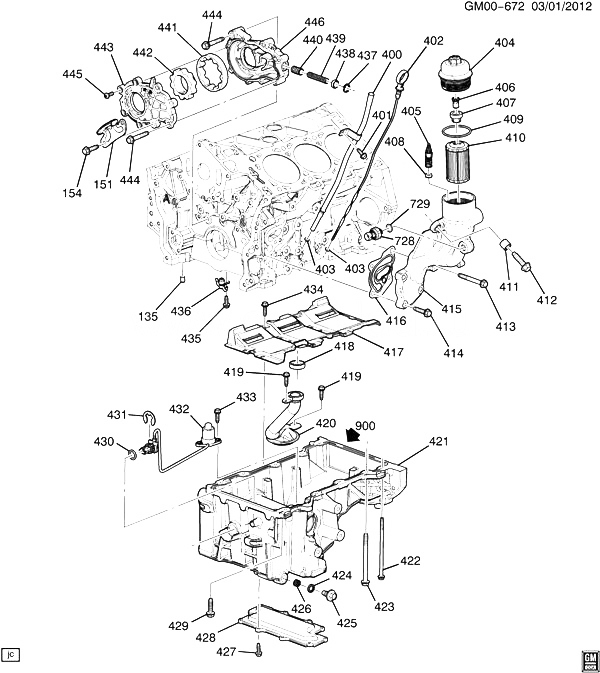

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 135 |
22531637 |
PIN, OIL PAN LOC (8MM DIA, 12MM LONG) (DOWEL) (0.413) |
DM (LFW, LFX) |
2013-2013 |
02 |
| 151 |
12586959 |
GUIDE, TMG CHAIN (PART OF 446) (2 MOUNTING HOLES) (LOWER PRIMARY) |
DM (LFW) |
2013-2013 |
01 |
| 154 |
11588725 |
BOLT, HFH, M8X1.25X35, 25 THD, 18 OD, 8.8 STL, GMW3359, M-PT (PART OF 446) |
|
2013-2013 |
02 |
| 400 |
12613061 |
TUBE, OIL LVL IND |
DM (LFW, LFX) |
2013-2013 |
01 |
| 401 |
11588712 |
BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (OIL LVL IND TUBE) |
|
2013-2013 |
01 |
| 402 |
12609018 |
INDICATOR, OIL LVL (INCLS 403) |
DM (LFW, LFX) |
2013-2013 |
01 |
| 402 |
12632893 |
INDICATOR, OIL LVL (INCLS 403) |
DM (LFW, LFX) |
2013-2013 |
01 |
| 403 |
24504031 |
SEAL, OIL LVL IND (O RING) (PART OF 402) (RED) |
DM (LFW, LFX) |
2013-2013 |
02 |
| 404 |
12583470 |
CAP, OIL FLTR (PART OF 415) (INCLS 406, 407, 409) (ACDelco #12583470) |
DM (LFW, LFX) |
2013-2013 |
01 |
| 405 |
|
VALVE, OIL FLTR BYPASS (PART OF 415) |
|
2013-2013 |
|
| 406 |
25014612 |
VALVE, OIL FLTR BYPASS (PART OF 404, 415) (W/O VAPOR SEPARATOR) (OPENING PRESSURE 21 PSI NOMINAL) (ACDelco #25014612) (PART HAS A 16.10MM MAX OD FITS A 15.84 HOLE IN BLOCK) |
DM (LFW, LFX) |
2013-2013 |
01 |
| 407 |
|
CAGE, OIL FLTR BYPASS VLV (PART OF 404, 415) |
|
2013-2013 |
|
| 408 |
|
SEAL, OIL FLTR DRN PLUG (O RING) (PART OF 415) |
|
2013-2013 |
|
| 409 |
12577653 |
SEAL, OIL FLTR CAP (O RING) (PART OF 404, 415) (ACDelco #12577653) |
DM (LFW) |
2013-2013 |
01 |
| 410 |
25177917 |
FILTER, OIL (PART OF 415) (ACDelco #PF2129) |
DM (LFW, LFX) |
2013-2013 |
01 |
| 410 |
19114105 |
FILTER, OIL (PART OF 415) (ACDelco #PF2129F) (DURAPACK) (BULK PKG, QTY 12) |
DM (LFW) |
2013-2013 |
01 |
| 411 |
|
SPACER, OIL FLTR (PART OF 415) |
|
2013-2013 |
|
| 412 |
11571051 |
BOLT, HFH, M10X1.5X45, 26 THD, 19 OD, 10.9, GMW3359 M-PT. (PART OF 415) |
|
2013-2013 |
01 |
| 413 |
11519174 |
BOLT, HFH, W/REDUCED BODY, M8X1.25X65, THD 22, O.D. 18, 8.8, GMW3359 (PART OF 415) |
|
2013-2013 |
02 |
| 414 |
11519980 |
BOLT, HFH, M8X1.25X40, 22 THD, 18 OD, 8.8, GMW3359, 6MM MATPOINT. (PART OF 415) |
|
2013-2013 |
02 |
| 415 |
12635600 |
ADAPTER, OIL FLTR (W/BYPASS VLV) (INCLS 404-414, 416, 728, 729) |
DM (LFW, LFX) |
2013-2013 |
01 |
| 416 |
12634318 |
GASKET, OIL FLTR (PART OF 415) (ACDelco #12634318) |
DM (LFW, LFX) |
2013-2013 |
01 |
| 417 |
12641014 |
DEFLECTOR, CR/SHF OIL (PART OF 421) |
DM (LFW, LFX) |
2013-2013 |
01 |
| 418 |
12566837 |
SEAL, O/PMP SUC PIPE (PART OF 421) |
DM (LFW, LFX) |
2013-2013 |
01 |
| 419 |
11562426 |
BOLT, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (PART OF 421) |
|
2013-2013 |
08 |
| 420 |
12575373 |
PIPE, O/PMP SUC (PART OF 421) |
DM (LFW, MYA, MX7) |
2013-2013 |
01 |
| 421 |
12648944 |
PAN, OIL (INCLS 417-420, 422-434) |
DM (LFW, LFX, MYA, MX7) |
2013-2013 |
01 |
| 421 |
12630705 |
PAN, OIL (INCLS 417-420, 422-434) |
DM (LFW, LFX) |
2013-2013 |
01 |
| 422 |
11588424 |
BOLT, HFH, M6X1X145, 18 THD, 14.2 O.D., 8.8, GMW3359 (PART OF 421) |
|
2013-2013 |
02 |
| 423 |
11588694 |
BOLT, HEX-HD, M8X1.25X120.8, DOG-PT, 8.8, GMW3359 (PART OF 421) |
|
2013-2013 |
06 |
| 424 |
12616850 |
SEAL, OIL PAN DRN PLUG (O RING) (PART OF 421, 425) |
DM (LFW, LFX) |
2013-2013 |
01 |
| 425 |
11562588 |
PLUG, OIL PAN DRN (PART OF 421) (INCLS 424) (M12X1.75X25) (W/SEAL) (EXC MAGNET) |
DM (LFW, LFX) |
2013-2013 |
01 |
| 426 |
11503302 |
INSERT, OIL PAN DRN PLUG THD (PART OF 421) |
DM (LFW, LFX) |
2013-2013 |
01 |
| 427 |
11561026 |
BOLT, HFH, M6X1X25, 22 THD, 14.2 OD, 9.8, GMW3200, MACH, HDR-PT (PART OF 421) |
|
2013-2013 |
10 |
| 428 |
12575500 |
PLATE, OIL PAN SKID (PART OF 421) |
DM (LFW, LFX) |
2013-2013 |
01 |
| 429 |
11588725 |
BOLT, HFH, M8X1.25X35, 25 THD, 18 OD, 8.8 STL, GMW3359, M-PT (PART OF 421) |
|
2013-2013 |
05 |
| 430 |
12638820 |
SEAL, ENG OIL LVL IND SW (PART OF 421, 432) |
DM, DR (LFW) |
2013-2013 |
01 |
| 431 |
12617903 |
CLIP, ENG OIL LVL SEN LEAD (PART OF 421) |
DM, DR (LFW) |
2013-2013 |
01 |
| 432 |
12644779 |
SWITCH, ENG OIL LVL IND (PART OF 421) (INCLS 430) |
DM (LFW, LFX, MYA, MX7) |
2013-2013 |
01 |
| 433 |
11562426 |
BOLT, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (PART OF 421) |
|
2013-2013 |
02 |
| 434 |
11562426 |
BOLT, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (PART OF 421) |
|
2013-2013 |
06 |
| 435 |
11588712 |
BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (PART OF 436) |
|
2013-2013 |
03 |
| 436 |
12640455 |
NOZZLE, PSTN OIL (INCLS 435) |
DM (LFW, LFX) |
2013-2013 |
04 |
| 437 |
|
RETAINER, OIL PRESS RLF VLV SPR (PART OF 446) |
|
2013-2013 |
|
| 438 |
|
PLUG, OIL PRESS RLF VLV BORE (PART OF 446) |
|
2013-2013 |
|
| 439 |
|
SPRING, OIL PRESS RLF VLV (PART OF 446) |
|
2013-2013 |
|
| 440 |
|
VALVE, OIL PRESS RLF (PART OF 446) |
|
2013-2013 |
|
| 441 |
|
GEAR, O/PMP (PART OF 446) |
|
2013-2013 |
|
| 442 |
|
GEAR, O/PMP IDLER (PART OF 446) |
|
2013-2013 |
|
| 443 |
|
COVER, O/PMP (PART OF 446) |
|
2013-2013 |
|
| 444 |
11900371 |
BOLT, HEX HD, W/1.6 FLAT WA, M8X1.25X54.3, 43 THD, 16O.D., 8.8, GMW3359 (PART OF 446) |
|
2013-2013 |
03 |
| 445 |
|
BOLT, O/PMP CVR (PART OF 446) |
|
2013-2013 |
|
| 446 |
12640448 |
PUMP, OIL (INCLS 151, 154, 437-445) |
DM (LFX, LFW) |
2013-2013 |
01 |
| 728 |
12621649 |
SENSOR, ENG OIL PRESS (INCLS 729) (PART OF 415) (MATING CONN W/LEADS USE 88988301) (ACDelco #D1800C) |
DM (LFW, LFX) |
2013-2013 |
01 |
| 729 |
|
SEAL, ENG OIL PRESS SEN (O RING) (PART OF 415, 728) |
|
2013-2013 |
|
| 900 |
12378577 |
SEALANT, PLASTIC VALVE COVER SEALANT (RTV) (4.76 OZ) (85 GRAMS) (OIL PAN) |
|
2013-2013 |
AR |
