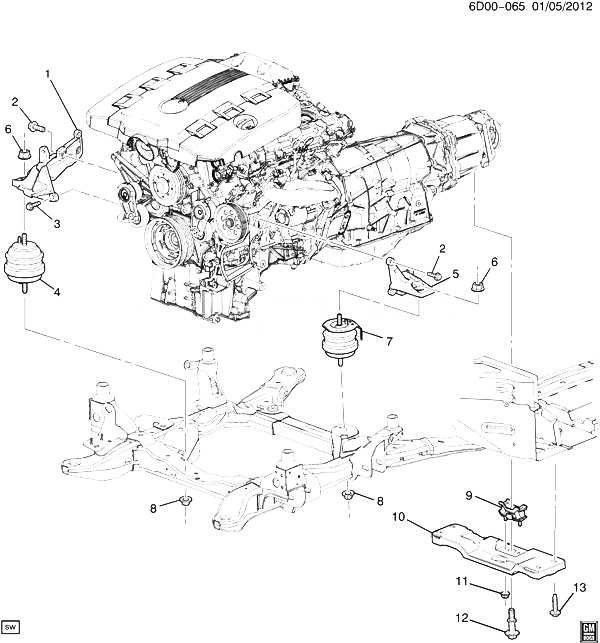

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15854018 |
BRACKET, ENG MT |
DM (LFW, LFX, MX7) |
2012-2013 |
01 |
| 002 |
11516328 |
BOLT, HFH, M10X1.5X30, 22 O.D., HDR PT, 10.9, 7114M (ENG MT BRKT) |
|
2010-2013 |
07 |
| 003 |
11515758 |
BOLT, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (ENG MT BRKT) |
|
2010-2013 |
02 |
| 004 |
22887775 |
MOUNT, ENG |
D35-47-69 (MX7) |
2013-2013 |
01 |
| 005 |
15854019 |
BRACKET, ENG MT |
DM (LFW, LFX, MX7) |
2012-2013 |
01 |
| 006 |
11517780 |
NUT, M12X1.75, 15 THK, 29 OD, 10, 7111M, ALL METAL PREV TORQ (ENG MT) |
|
2010-2013 |
02 |
| 007 |
22887776 |
MOUNT, ENG |
D35-47-69 (MX7) |
2013-2013 |
01 |
| 008 |
11516754 |
NUT, HEX, W/CON SPR WA, M10X1.5, 10THK, 28 O.D., 10, 7111M (ENG MT FRM SI) |
|
2010-2013 |
02 |
| 009 |
20824598 |
MOUNT, TRANS (PART OF 10) |
DM (MX7) |
2010-2013 |
01 |
| 010 |
20858540 |
MOUNT, TRANS RR (INCLS 9, 11) |
DM (MX7) |
2010-2013 |
01 |
| 011 |
11517996 |
NUT, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (PART OF 10) (ACDelco #11517996) |
|
2010-2013 |
02 |
| 012 |
11610543 |
BOLT, TRANS MT |
D35-47-69 (JJB, MX7) |
2011-2013 |
01 |
| 013 |
11589169 |
BOLT ASM - HEX HD W/CONICAL WASHER, M10X1.50X50, GMW25 (10.9) STL, GMW33559 (TRANS MT) |
|
2010-2013 |
04 |
