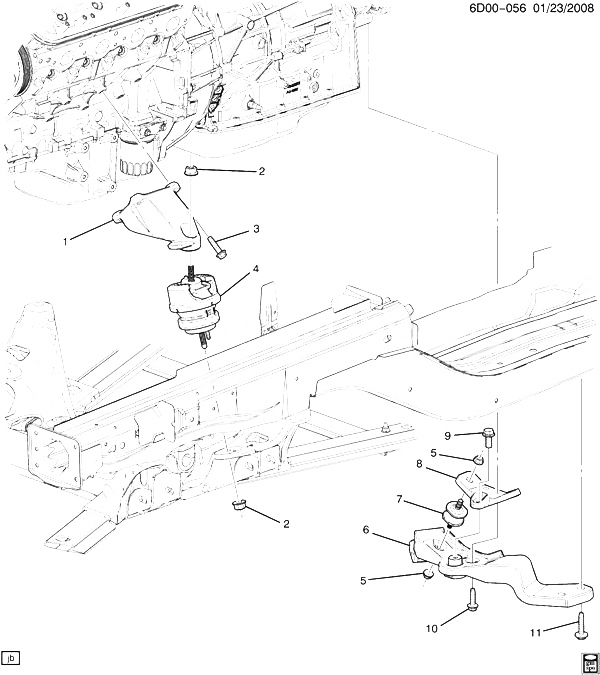

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15234761 |
BRACKET, ENG MT |
DN (LSA) |
2009-2013 |
01 |
| 001 |
15234762 |
BRACKET, ENG MT |
DN (LSA) |
2009-2013 |
01 |
| 002 |
11517780 |
NUT, M12X1.75, 15 THK, 29 OD, 10, 7111M, ALL METAL PREV TORQ (ENG MT) |
|
2009-2013 |
04 |
| 003 |
11571051 |
BOLT, HFH, M10X1.5X45, 26 THD, 19 OD, 10.9, GMW3359 M-PT. (ENG MT BRKT) |
|
2009-2013 |
08 |
| 004 |
15234751 |
MOUNT, ENG |
DN (LSA) |
2009-2013 |
02 |
| 005 |
11516078 |
NUT, HFH, M12X1.75, 14THK, 25 O.D., 10, PZOR (PART OF 6) |
|
2009-2013 |
04 |
| 006 |
20774891 |
MOUNT, TRANS RR (INCLS 5, 7-9) |
DN (LSA) |
2011-2013 |
01 |
| 006 |
20774891 |
MOUNT, TRANS RR (INCLS 5, 7-9) |
DN (LSA) |
2011-2013 |
01 |
| 007 |
20765557 |
INSULATOR, TRANS RR MT SPR (PART OF 6) |
DN (LSA) |
2009-2013 |
02 |
| 007 |
20765557 |
INSULATOR, TRANS RR MT SPR (PART OF 6) |
DN (LSA) |
2009-2013 |
02 |
| 008 |
|
MOUNT, TRANS RR (PART OF 6) |
|
2011-2013 |
|
| 009 |
|
BOLT, TRANS SUPT BR (PART OF 6) |
|
2011-2013 |
|
| 010 |
11588740 |
BOLT, HFH, M10X1.5X40, 30 THD, 22.3 OD, 10.9, GMW3359, M-PT (TRANS MT) (ACDelco #11588740) |
|
2009-2013 |
02 |
| 011 |
11589169 |
BOLT ASM - HEX HD W/CONICAL WASHER, M10X1.50X50, GMW25 (10.9) STL, GMW33559 (TRANS RR MT BRKT) |
|
2009-2013 |
04 |
