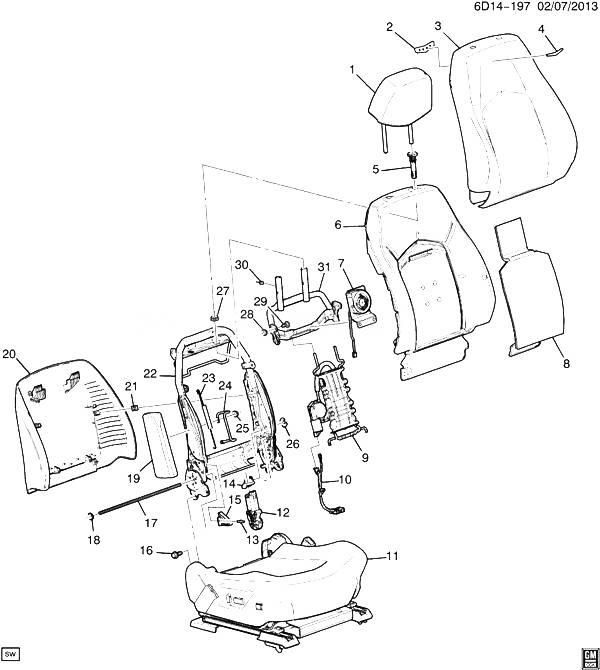

(6D14-197) 2012 DR35-69 СИДЕНЬЕ В СБОРЕ/ПАССАЖИРА-СПИНКА (VENTED/HEATED KB6)(1ST DES) CADILLAC - CTS SEDAN 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20867414 RESTRAINT, P/SEAT HD (CASHMERE) DM (01D) 2011-2012 01
001 20867413 RESTRAINT, P/SEAT HD (TITANIUM) DM35-69 (AQ9, EBS, 01C) 2011-2012 01
001 20812526 RESTRAINT, P/SEAT HD (EBONY) (LEATHER) DM, DN (AL2, AQ9, EBS, ECH, 01G) 2012-2012 01
001 20812527 RESTRAINT, P/SEAT HD (EBONY) (LEATHERETTE) DM35-69 (AQ9, EAM, 01G) (EXC AH8, AL2) 2012-2012 01
001 20830413 RESTRAINT, P/SEAT HD (TITANIUM) DM35-69 (AQ9, EAM, 01C) 2011-2012 01
001 20867414 RESTRAINT, P/SEAT HD (CASHMERE) DR (01D) (EXPORT) 2011-2012 01
001 20867413 RESTRAINT, P/SEAT HD (TITANIUM) DR35-69 (AQ9, EBS, 01C) (EXPORT) 2011-2012 01
001 20812526 RESTRAINT, P/SEAT HD (EBONY) (LEATHER) DR (AL2, AQ9, EBS, ECH, 01G) (EXPORT) 2012-2012 01
001 22785041 RESTRAINT, P/SEAT HD (EBONY) DR35-69 (AH8, AL2, AQ9, AX4, EAM, 01G) (EXPORT) 2012-2012 01
001 20830413 RESTRAINT, P/SEAT HD (TITANIUM) DR35-69 (EAM, 01C) (EXPORT) 2011-2012 01
002 22958609 PANEL, F/SEAT BK UPR FIN (RETAINER) DM, DN35-69 (ECH) 2012-2012
002 22958609 PANEL, F/SEAT BK UPR FIN (RETAINER) DR35-69 (AL2, AQ9, A45, EBS) 2012-2012
002 22958609 PANEL, F/SEAT BK UPR FIN (RETAINER) DM35-47-69 (AH8, AQ9, EBS) 2012-2012
003 22737830 COVER, P/SEAT BK (CASHMERE) DM35-69 (AH8, AL2, EBS, KB6, 01D) (EXC KA1) 2011-2012 01
003 22737832 COVER, P/SEAT BK (TITANIUM) DM35-69 (AH8, AL2, EBS, KB6, 01C) (EXC KA1) 2011-2012 01
003 22737843 COVER, P/SEAT BK (TITANIUM) DM35-69 (AL2, EBS, KA1, 01C) (EXC KB6) 2011-2012 01
003 22737844 COVER, P/SEAT BK (CASHMERE) DM35-69 (AL2, EBS, KA1, 01D) (EXC KB6) 2011-2012 01
003 22784985 COVER, P/SEAT BK (EBONY) DM35-69 (AH8, AL2, AQ9, EBS, KB6, 01G) (EXC KA1) 2012-2012 01
003 22784986 COVER, P/SEAT BK (EBONY) DM35-69 (AH8, AL2, AQ9, EBS, KA1, 01G) (EXC KB6) 2012-2012 01
003 22737823 COVER, P/SEAT BK (TITANIUM) DR35-69 (AH8, AL2, AX4, EAM, 01C) (EXPORT) 2011-2012 01
003 22737826 COVER, P/SEAT BK (CASHMERE) DR35-69 (AH8, AL2, AX4, EBS, KB6, 01D) (EXC KA1) (EXPORT) 2011-2012 01
003 22737828 COVER, P/SEAT BK (TITANIUM) DR35-69 (AH8, AL2, AX4, EBS, KB6, 01C) (EXC KA1) (EXPORT) 2011-2012 01
003 22737839 COVER, P/SEAT BK (TITANIUM) DR35-69 (AL2, AQ9, EBS, KA1, 01C) (EXC KB6) (EXPORT) 2011-2012 01
003 22737840 COVER, P/SEAT BK (CASHMERE) DR35-69 (AL2, AX4, EBS, KA1, 01D) (EXC KB6) (EXPORT) 2011-2012 01
003 22737843 COVER, P/SEAT BK (TITANIUM) DR35-69 (AL2, AQ9, A45, EBS, KA1, 01C) (EXC KB6) (EXPORT) 2011-2012 01
003 22737844 COVER, P/SEAT BK (CASHMERE) DR35-69 (AL2, AX4, A45, EBS, KA1, 01D) (EXC KB6) (EXPORT) 2011-2012 01
003 22784989 COVER, P/SEAT BK (EBONY) DR35-69 (AH8, AL2, AQ9, AX4, EBS, KB6, 01G) (EXC KA1) (EXPORT) 2012-2012 01
003 22784990 COVER, P/SEAT BK (EBONY) DR35-69 (AH8, AL2, AQ9, AX4, EBS, KA1, 01G) (EXC KB6) (EXPORT) 2012-2012 01
003 22784991 COVER, P/SEAT BK (EBONY) DR35-69 (AH8, AL2, AQ9, AX4, EAM, 01G) (EXPORT) 2012-2012 01
004 22958608 PANEL, F/SEAT BK UPR FIN (EMBLEM) DR35-69 (AH8, AL2, AQ9, AX4, EBS) 2012-2012
004 22958609 PANEL, F/SEAT BK UPR FIN (RETAINER) DM, DN35-69 (ECH) 2012-2012
004 22958609 PANEL, F/SEAT BK UPR FIN (RETAINER) DR35-69 (AL2, AQ9, A45, EBS) 2012-2012
004 22958609 PANEL, F/SEAT BK UPR FIN (RETAINER) DM35-47-69 (AH8, AQ9, EBS) 2012-2012
004 22958609 PANEL, F/SEAT BK UPR FIN (RETAINER) DM, DN35-69 (ECH) 2012-2012
004 22958609 PANEL, F/SEAT BK UPR FIN (RETAINER) DR35-69 (AL2, AQ9, A45, EBS) 2012-2012
005 25785786 GUIDE, P/SEAT H/RST (CASHMERE) (W/BUTTON) DM (01D) 2011-2012 01
005 25785789 GUIDE, P/SEAT H/RST (CASHMERE) (W/O BUTTON) DM (01D) 2011-2012 01
005 25785791 GUIDE, P/SEAT H/RST (EBONY) (W/O BUTTON) DM (01G) 2011-2012 01
005 25908135 GUIDE, P/SEAT H/RST (TITANIUM) (W/BUTTON) DM (01C) 2011-2012 01
005 25908165 GUIDE, P/SEAT H/RST (TITANIUM) (W/O BUTTON) DM (01C) 2011-2012 01
005 25785789 GUIDE, P/SEAT H/RST (CASHMERE) (W/O BUTTON) DR35-69 (01D) (EXPORT) 2011-2012 01
005 25785791 GUIDE, P/SEAT H/RST (EBONY) (W/O BUTTON) DR35-69 (01G) (EXPORT) 2011-2012 01
005 25908135 GUIDE, P/SEAT H/RST (TITANIUM) (W/BUTTON) DR35-69 (01C) (EXPORT) 2011-2012 01
005 25785786 GUIDE, P/SEAT H/RST (CASHMERE) (W/BUTTON) DR (01D) (EXPORT) 2011-2012 01
005 25908165 GUIDE, P/SEAT H/RST (TITANIUM) (W/O BUTTON) DR35-69 (01C) (EXPORT) 2011-2012 01
006 25939271 PAD, F/SEAT BK DM35-69 (AQ9, EAM) (EXC AH8, AL2) 2011-2012 01
006 25939271 PAD, F/SEAT BK DM35-69 (EBS, KA1) (EXC KB6) 2011-2012 01
006 25939272 PAD, F/SEAT BK (HT VENT) (CARS BUILT W/ VENT BAG HANGING ON FRAME) (FOR 2ND DESIGN SEE 22758818) DM35-69 (AH8, AL2, AQ9, EBS, KB6) (EXC KA1) (1ST DES) 2012-2012 01
006 22758818 PAD, D/SEAT BK DR35-69 (AL2, AQ9, AX4, A45, EBS, KB6) (EXC KA1) 2012-2012 01
006 22758818 PAD, P/SEAT BK DM35-69 (AH8, AL2, AQ9, EBS, KB6) (EXC KA1) 2012-2012 01
006 25939271 PAD, F/SEAT BK DR35-69 (AL2, AQ9, AX4, A45, EBS, KA1) (EXC KB6) (EXPORT) 2011-2012 01
006 25939271 PAD, F/SEAT BK DR35-69 (AL2, AQ9, AX4, EAM) (EXC A45) (EXPORT) 2011-2012 01
006 25939272 PAD, F/SEAT BK (HT VENT) (CARS BUILT W/ VENT BAG HANGING ON FRAME) (FOR 2ND DESIGN SEE 22758818) DR35-69 (AL2, AQ9, AX4, A45, EBS, KB6) (EXC KA1) (1ST DES) (EXPORT) 2012-2012 01
007 25939274 BLOWER, P/SEAT BACK VENTILATION HEAT COOL (CARS BUILT W/ VENT BAG HANGING ON FRAME) (FOR 2ND DES SEE 22758933) DM (EBS, KB6) (1ST DES) 2012-2012 01
007 22758933 BLOWER, P/SEAT BACK VENTILATION HEAT COOL DM (EBS, KB6) 2012-2012 01
007 22758933 BLOWER, P/SEAT BACK VENTILATION HEAT COOL DR (EBS, KB6) 2012-2012 01
007 25939274 BLOWER, P/SEAT BACK VENTILATION HEAT COOL (CARS BUILT W/ VENT BAG HANGING ON FRAME) (FOR 2ND DES SEE 22758933) DR (EBS, KB6) (1ST DES) (EXPORT) 2012-2012 01
008 25994412 MAT, F/SEAT BK VENT FAN (CARS BUILT W/ VENT BAG HANGING ON FRAME) (FOR 2ND DESIGN SEE 22758813) DM (AL2, AQ9, A45, EBS, KB6) (EXC KA1) (1ST DES) 2012-2012 01
008 22758813 MAT, F/SEAT BK VENT FAN (HEAT/VENT LR) DM (AL2, AQ9, A45, EBS, KB6) (EXC KA1) 2012-2012 01
008 22758813 MAT, F/SEAT BK VENT FAN (HEAT/VENT LR) DR (AL2, AQ9, A45, EBS, KB6) (EXC KA1) 2012-2012 01
008 25994412 MAT, F/SEAT BK VENT FAN (CARS BUILT W/ VENT BAG HANGING ON FRAME) (FOR 2ND DESIGN SEE 22758813) DR (AL2, AQ9, A45, EBS, KB6) (EXC KA1) (1ST DES) (EXPORT) 2012-2012 01
009 25939270 LUMBAR SUB, P/SEAT (SHALE) (W/ACTIVE H/RST-HT OF BK PNL INDENTATION ABOVE MAP PKT=3IN) DM35-69 (AH8, AL2, AQ9, EBS) 2011-2012 01
009 25939527 LUMBAR SUB, P/SEAT (W/ACTIVE H/RST-HT OF BK PNL INDENTATION ABOVE MAP PKT=3IN) DM35-69 (AQ9, EAM) (EXC AL2) 2011-2012 01
009 25994158 LUMBAR SUB, P/SEAT (W/MEMORY) DR35-69 (AL2, AQ9, AX4, A45, EBS) (EXPORT) 2011-2012 01
009 25994157 LUMBAR SUB, P/SEAT DR35-69 (AH8, AL2, AQ9, AX4, EBS, KA1) (EXC KB6) (EXPORT) 2011-2012 01
010 20973024 HARNESS, P/SEAT CONT MDL WRG DM35-69 (AH8, AL2, AQ9, EBS, KB6) (EXC KA1) 2011-2012 01
010 20973025 HARNESS, P/SEAT CONT MDL WRG DM35-69 (AQ9, EAM) (EXC AH8, AL2) 2012-2012 01
010 20844841 HARNESS, P/SEAT CONT MDL WRG DM35-69 (AH8, AL2, AQ9, EBS, KA1) (EXC KB6) 2012-2012 01
010 20973023 HARNESS, P/SEAT CONT MDL WRG DR35-69 (AH8, AL2, AQ9, AX4, EAM) (EXPORT) 2011-2012 01
010 22893477 HARNESS, P/SEAT CONT MDL WRG DR35-69 (AH8, AL2, AQ9, AX4, EBS, KA1) (EXC KB6) (EXPORT) 2012-2012 01
010 22893478 HARNESS, P/SEAT CONT MDL WRG DR35-69 (AH8, AL2, AQ9, AX4, EBS, KB6) (EXC KA1) (EXPORT) 2012-2012 01
010 20973021 HARNESS, P/SEAT CONT MDL WRG DR35-69 (AH8, AL2, AQ9, AX4, EBS, KA1) (EXC KB6) (EXPORT) 2011-2012 01
010 20973022 HARNESS, P/SEAT CONT MDL WRG DR35-69 (AH8, AL2, AQ9, AX4, EBS, KB6) (EXC KA1) (EXPORT) 2011-2012 01
011 COVER, P/SEAT CUSH (SEE GROUP 14.000 SEAT ASM/DRIVER-CUSHION FOR DETAILED ILLUSTRATED VIEW) (14.890) 2011-2012 01
012 15894214 ACTUATOR, P/SEAT RECL (PART OF 22) DM 2011-2012 01
012 15894214 ACTUATOR, P/SEAT RECL (PART OF 22) DR35-69 (EXPORT) 2011-2012 01
013 11610252 RIVET, POP, 4.7 DIA SHANK, 16.39 LENGTH, 1.52-9.52 GRP RNG, SAE 1008 STL, GM (F/SEAT BK FRM REINF) 2011-2012 02
014 BRACKET, P/SEAT RECL ACTR (PART OF 22) 2012-2012
015 25994443 BRACKET, P/SEAT FRT DM, DN35-69 2011-2012 02
015 25994443 BRACKET, P/SEAT FRT DR35-69 (EXPORT) 2011-2012 02
016 25828643 BOLT, F/SEAT (PART OF 22) DM 2011-2012 08
016 25828643 BOLT, F/SEAT (PART OF 22) DR35-69 (EXPORT) 2011-2012 08
017 15894212 BAR, F/SEAT BK FRM CR (PART OF 22) DM, DN 2011-2012 02
017 15894212 BAR, F/SEAT BK FRM CR (PART OF 22) DR35-69 (EXPORT) 2011-2012 02
018 11571066 NUT, PUSH-ON, FOR 9/32 (6.9MM) DIA STUDS, 18.4 OD, SAE 1050 STL, GMW30 (PART OF 22) 2011-2012 02
019 20970098 AIRBAG, P/SEAT SI DM, DN (AQ9) 2011-2012 01
019 20970098 AIRBAG, P/SEAT SI DR (AQ9) (EXPORT) 2011-2012 01
020 25939495 PANEL, P/SEAT BK FIN (INCLS 21) (TITANIUM) (PANEL IS PLASTIC AND NOT WRAPPED IN LEATHER) DM35-69 (AQ9, EAM, 01C) (EXC AL2) 2011-2012 01
020 25939494 PANEL, P/SEAT BK FIN (INCLS 21) (EBONY) (PANEL IS PLASTIC AND NOT WRAPPED IN LEATHER) DM35-69 (AQ9, EAM, 01G) (EXC AH8, AL2) 2011-2012 01
020 25939494 PANEL, P/SEAT BK FIN (INCLS 21) (EBONY) (PANEL IS PLASTIC AND NOT WRAPPED IN LEATHER) DM35-69 (AH8, AL2, AQ9, EBS, 01G) 2011-2012 01
020 25939495 PANEL, P/SEAT BK FIN (INCLS 21) (TITANIUM) (PANEL IS PLASTIC AND NOT WRAPPED IN LEATHER) DM35-47-69 (AL2, AQ9, EBS, 01C) 2011-2012 01
020 25939487 PANEL, P/SEAT BK FIN (INCLS 21) (CASHMERE) (PANEL IS WRAPPED IN LEATHER) DM (AH8, AL2, AQ9, EBS, 01D) 2011-2012 01
020 25939487 PANEL, P/SEAT BK FIN (INCLS 21) (CASHMERE) (PANEL IS WRAPPED IN LEATHER) DR35-69 (AL2, AQ9, AX4, A45, EBS, 01D) 2011-2012 01
020 25939329 PANEL, P/SEAT BK FIN (INCLS 21) (EBONY) (PANEL IS PLASTIC AND NOT WRAPPED IN LEATHER) DR35-69 (AQ9, 01G) (EXPORT) 2011-2012 01
020 25939330 PANEL, P/SEAT BK FIN (INCLS 21) (TITANIUM) (PANEL IS PLASTIC AND NOT WRAPPED IN LEATHER) DR (AQ9, 01C) (EXPORT) 2011-2012 01
020 25939494 PANEL, P/SEAT BK FIN (INCLS 21) (EBONY) (PANEL IS PLASTIC AND NOT WRAPPED IN LEATHER) DR35-69 (AH8, AL2, AQ9, AX4, EAM, 01G) (EXPORT) 2011-2012 01
020 25939323 PANEL, P/SEAT BK FIN (INCLS 21) (CASHMERE) (PANEL IS WRAPPED IN LEATHER) DR35-69 (AQ9, 01D) (EXPORT) 2011-2012 01
021 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 20) 2011-2012 04
022 25807066 FRAME, P/SEAT BK (INCLS 12, 14, 16-18, 26) (14.896) DM35-69 (AH8, AL2, AQ9, EBS, ECH) 2011-2012 01
022 25807065 FRAME, P/SEAT BK (INCLS 12, 14, 16-18, 26) (8-WAY) (PWR) (W/O MEMORY) DR35-69 (AL2, AQ9, AX4, EAM, EBS) (EXPORT) 2011-2012 01
023 25994445 SPRING, F/SEAT H/RST ADJ RET DM, DN 2011-2012 02
023 25994445 SPRING, F/SEAT H/RST ADJ RET DR35-69 (EXPORT) 2011-2012 02
024 25994419 BRACKET, P/SEAT SI AIRBAG DM 2011-2012 01
025 11517068 NUT, METRIC HEX FLANGE, M6X1, 10MM SOCKET (P/SEAT) 2011-2012 02
026 CLIP, ACTUATOR P/SEAT RECL) (PART OF 22) 2012-2012
027 25994444 RETAINER, P/SEAT H/RST GDE D35-47-69 2011-2012 01
028 25995124 BUSHING, F/SEAT BK PIV DM 2011-2012 02
028 25995124 BUSHING, F/SEAT BK PIV DR35-69 (EXPORT) 2011-2012 02
029 BOLT, F/SEAT H/RST 2011-2012
030 25995123 BUMPER, F/SEAT BK DM 2011-2012 02
030 25995123 BUMPER, F/SEAT BK DR (EXPORT) 2011-2012 02
031 25994442 SUPPORT, P/SEAT H/RST DM35-69 2011-2012 01
031 25994442 SUPPORT, P/SEAT H/RST DR35-69 (EXPORT) 2011-2012 01
