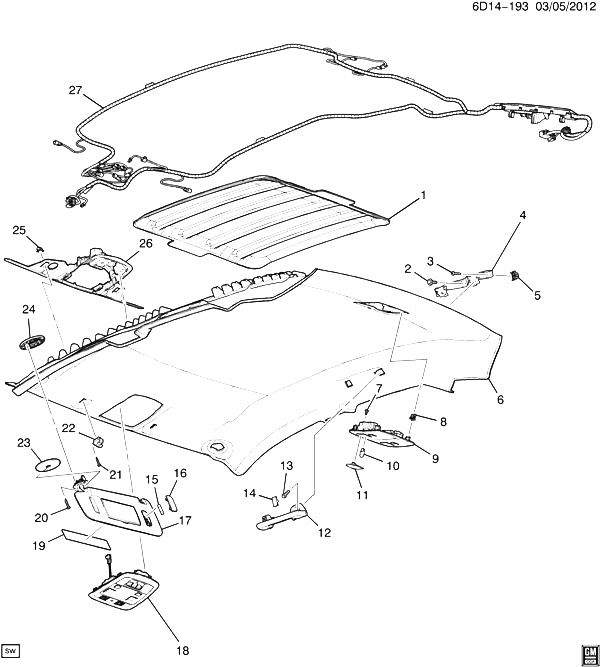

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25925701 |
STIFFENER, HDLNG T/PNL |
D69 (CFN) |
2008-2013 |
01 |
| 002 |
11609989 |
BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (ASST HDL BRKT) |
|
2008-2013 |
02 |
| 003 |
11610271 |
SCREW, PAN HD, M4.2X1.41X25, 20.5 THD, 8 OD, 6010M, GMW4205, T15 TORX, AB-PT (PART OF 4) |
|
2008-2013 |
02 |
| 004 |
25863690 |
BRACKET, ASST HDL (INCLS 3, 5) |
D69 |
2008-2013 |
02 |
| 005 |
11569968 |
NUT, ASST HDL BRKT (PART OF 4) (M4.2X1.41X24X17.1X16.8) |
D69 |
2008-2013 |
04 |
| 006 |
22789228 |
PANEL, HDLNG TR (INCLS 26, 27) (CASHMERE) (W/HARNESS) |
DM, DN69 (CFN, U2X, 4AC) (EXC TSQ, UE1) |
2012-2013 |
01 |
| 006 |
22789231 |
PANEL, HDLNG TR (INCLS 26, 27) (CASHMERE) (W/HARNESS) |
DM, DN69 (CFN, TSQ, UAV, UE1, 4AC) |
2012-2013 |
01 |
| 006 |
22789233 |
PANEL, HDLNG TR (INCLS 26, 27) (TITANIUM) (W/HARNESS) |
DM69 (CFN, TSQ, UE1, U2R, U2S, 4AL, 4AM) |
2012-2013 |
01 |
| 006 |
22789234 |
PANEL, HDLNG TR (INCLS 26, 27) (CASHMERE) (W/HARNESS) |
DM69 (CFN, TSQ, UE1, U2R, U2S, 4AC) |
2012-2013 |
01 |
| 006 |
22789236 |
PANEL, HDLNG TR (INCLS 26, 27) (TITANIUM) (W/HARNESS) |
DM69 (CFN, UAV, U2S, U2T, UE1, 4AL, 4AM) (EXC TSQ) |
2012-2013 |
01 |
| 006 |
22789237 |
PANEL, HDLNG TR (INCLS 26, 27) (CASHMERE) (W/HARNESS) |
DM69 (CFN, UAV, U2S, U2T, UE1, 4AC) (EXC TSQ) |
2012-2013 |
01 |
| 006 |
22789227 |
PANEL, HDLNG TR (INCLS 26, 27) (TITANIUM) (W/HARNESS) |
DM, DN69 (CFN, U2X, 4AL, 4AM, 4EV) (EXC TSQ, UE1) |
2012-2013 |
01 |
| 006 |
22789230 |
PANEL, HDLNG TR (INCLS 26, 27) (TITANIUM) (W/HARNESS) |
DM, DN69 (CFN, TSQ, UAV, UE1, 4AL, 4AM, 4EV) |
2012-2013 |
01 |
| 006 |
22789236 |
PANEL, HDLNG TR (INCLS 26, 27) (TITANIUM) (W/HARNESS) |
DN69 (CFN, UAV, UE1, 4AL, 4AM, 4EV) (EXC TSQ) |
2012-2013 |
01 |
| 006 |
22789228 |
PANEL, HDLNG TR (INCLS 26, 27) (CASHMERE) (W/HARNESS) |
DR69 (CFN, U2X, 4AC) (EXC TSQ, UE1) (EXPORT) |
2012-2013 |
01 |
| 006 |
22789227 |
PANEL, HDLNG TR (INCLS 26, 27) (TITANIUM) (W/HARNESS) |
DR69 (CFN, U2X, 4AL, 4AM, 4EV) (EXC TSQ, UE1) (EXPORT) |
2012-2013 |
01 |
| 007 |
11562028 |
BOLT, RF CNSL (PART OF 9) |
D69 |
2008-2013 |
AR |
| 008 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 9) |
|
2008-2013 |
04 |
| 009 |
25831190 |
CONSOLE, RF RR (INCLS 7, 8, 10, 11) (CASHMERE) |
D69 (4AC, 4AR) |
2011-2013 |
01 |
| 009 |
25969724 |
CONSOLE, RF RR (INCLS 7, 8, 10, 11) (TITANIUM) |
D69 (4AL, 4AM) |
2011-2012 |
01 |
| 010 |
01999382 |
BULB, (PART OF 9) (ACDelco #W5WLL) (LONGER LIFE) |
|
2008-2013 |
02 |
| 011 |
25886564 |
LENS, RF CNSL RDG LP (PART OF 9) |
D35-47-69 |
2011-2013 |
01 |
| 011 |
25886565 |
LENS, RF CNSL RDG LP (PART OF 9) |
D35-47-69 |
2011-2013 |
01 |
| 012 |
20864479 |
HANDLE, R/RL RR ASST (INCLS 13, 14) (TITANIUM) |
D35-69 (CFN, 4AL, 4AM) |
2010-2012 |
01 |
| 012 |
20864480 |
HANDLE, R/RL RR ASST (INCLS 13, 14) (TITANIUM) |
D35-69 (CFN, 4AL, 4AM) |
2010-2012 |
01 |
| 012 |
20864477 |
HANDLE, R/RL RR ASST (INCLS 13, 14) (CASHMERE) |
DM69 (CFN, 4AC) |
2011-2013 |
01 |
| 012 |
20864477 |
HANDLE, R/RL RR ASST (INCLS 13, 14) (CASHMERE) |
DN69 (CFN, 4AR) |
2011-2013 |
01 |
| 012 |
20864478 |
HANDLE, R/RL RR ASST (INCLS 13, 14) (CASHMERE) |
DM69 (CFN, 4AC) |
2011-2013 |
01 |
| 012 |
20864478 |
HANDLE, R/RL RR ASST (INCLS 13, 14) (CASHMERE) |
DN69 (CFN, 4AR) |
2011-2013 |
01 |
| 012 |
20864477 |
HANDLE, R/RL RR ASST (INCLS 13, 14) (CASHMERE) |
DR35-69 (CFN, 4AC) (EXPORT) |
2011-2013 |
01 |
| 012 |
20864478 |
HANDLE, R/RL RR ASST (INCLS 13, 14) (CASHMERE) |
DR35-69 (CFN, 4AC) (EXPORT) |
2011-2013 |
01 |
| 013 |
11569613 |
BOLT, HFH, M6X1X25, 19 THD, 12 OD, GM6202M STL, GMW3359, TAPTITE (PART OF 12) |
|
2008-2013 |
02 |
| 014 |
|
COVER, R/RL RR ASST HDL HOLE (PART OF 12) |
|
2011-2013 |
|
| 015 |
13502343 |
BULB, S/S ILLUM MIR LP (PART OF 17) (8.991) (ACDelco #13502343) |
D69 |
2008-2013 |
04 |
| 016 |
|
LENS, S/S ILLUM MIR (PART OF 17) |
|
2011-2013 |
|
| 017 |
22761769 |
SUNSHADE, (INCLS 15, 16, 19) (CASHMERE) |
D35-69 (4AC) |
2011-2013 |
01 |
| 017 |
22761765 |
SUNSHADE, (INCLS 15, 16, 19) (TITANIUM) |
D35-69 (4AL, 4AM) |
2011-2012 |
01 |
| 017 |
22761766 |
SUNSHADE, (INCLS 15, 16, 19) (CASHMERE) |
D35-69 (4AC) |
2011-2013 |
01 |
| 017 |
22761768 |
SUNSHADE, (INCLS 15, 16, 19) (TITANIUM) |
D35-69 (4AL, 4AM) |
2011-2012 |
01 |
| 018 |
|
CONSOLE, RF (SEE GROUP 10.000 CONSOLE/ROOF FOR DETAILED ILLUSTRATED VIEW) (CASHMERE) (STD, ONS) |
|
2008-2013 |
|
| 019 |
20889265 |
LABEL, AIRBAG SYS WRNG (PART OF 17) (ENGLISH/CHINESE) |
DM69 (KJ1) |
2010-2013 |
02 |
| 019 |
25815471 |
LABEL, AIRBAG SYS WRNG (PART OF 17) (ENGLISH/ARABIC) |
D69 (VBX) (EXPORT) |
2008-2013 |
02 |
| 020 |
11610271 |
SCREW, PAN HD, M4.2X1.41X25, 20.5 THD, 8 OD, 6010M, GMW4205, T15 TORX, AB-PT (S/S) |
|
2008-2013 |
06 |
| 021 |
11610271 |
SCREW, PAN HD, M4.2X1.41X25, 20.5 THD, 8 OD, 6010M, GMW4205, T15 TORX, AB-PT (S/S RET) |
|
2008-2013 |
02 |
| 022 |
15877013 |
SUPPORT, S/S (TITANIUM) (16.070) |
D35-69 (4AL, 4AM) |
2010-2012 |
02 |
| 022 |
15877014 |
SUPPORT, S/S (CASHMERE) (16.070) (TIP PIN RETAINER) |
D35-69 (4AC, 4AR) |
2010-2013 |
02 |
| 023 |
15803473 |
COVER, S/S RET BOLT (CASHMERE) (16.070) |
D35-69 (4AC, 4AR) |
2010-2013 |
02 |
| 023 |
20765441 |
COVER, S/S RET BOLT (TITANIUM) (CIRCULAR S/S BOLT COVER W/HOLE IN CTR) |
D35-69 (4AL, 4AM) |
2010-2012 |
02 |
| 024 |
13502225 |
RETAINER, S/S (TIP PIN) (16.070) |
D69 |
2008-2013 |
01 |
| 024 |
13502224 |
RETAINER, S/S (TIP PIN) (16.070) |
D69 |
2008-2013 |
01 |
| 025 |
11609345 |
NUT, PUSH-IN, 4.2, SAE 1050 STL, GMW3179 (S/S RET (PUSH ON)) |
|
2008-2013 |
02 |
| 026 |
|
RETAINER, RF CNSL (PART OF 6) |
|
2011-2013 |
|
| 027 |
|
HARNESS, W/S HDR WRG (PART OF 6) |
|
2011-2013 |
|
