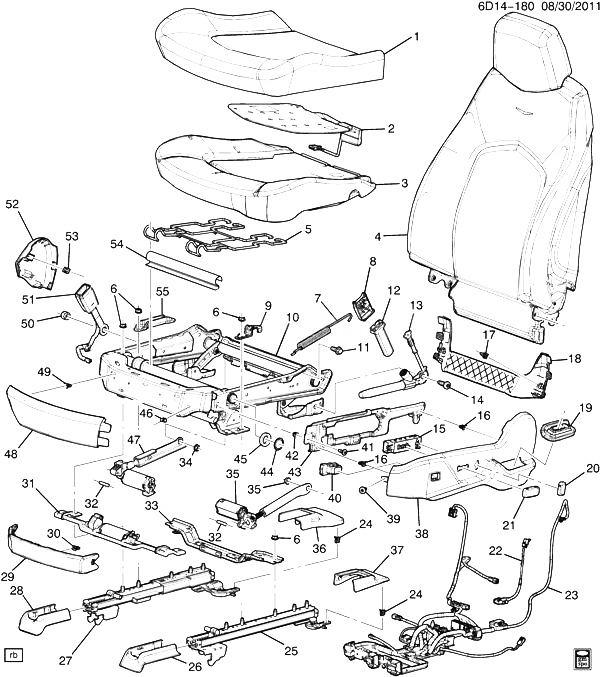

(6D14-180) 2011-2013 DR35-69 СИДЕНЬЕ В СБОРЕ/ПАССАЖИРА-ПОДУШКА (POWER ADJUSTER AH8, POWER LUMBAR AL2, EXC KA1, KB6) CADILLAC - CTS SEDAN 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20830753 COVER, P/SEAT CUSH (TITANIUM) DR35-69 (AH8, AL2, AQ9, AX4, EAM, 01C) (EXPORT) 2011-2013 01
001 22784976 COVER, P/SEAT CUSH (EBONY) DR35-69 (AH8, AL2, AQ9, AX4, EAM, 01G) (EXPORT) 2012-2013 01
002 20778919 MODULE KIT, AIRBAG FRT PASS PRESENCE (W/ SEN) (INCLS 3) DR (EXC KB6, KA1) (EXPORT) 2011-2013 01
003 PAD, P/SEAT CUSH (PART OF 2) 2011-2013
004 COVER, P/SEAT BK (SEE GROUP 14.000 SEAT ASM/PASSENGER-BACK FOR DETAILED ILLUSTRATED VIEW) (CASHMERE) 2011-2013
005 15894132 WIRE, P/SEAT CUSH PAD (PART OF 10) DR (EXPORT) 2011-2013 01
006 NUT, P/SEAT CUSH FRM (PART OF 10) 2011-2013
007 SPRING, P/SEAT ADJR VERT ASST (PART OF 10) 2011-2013
008 COVER, F/SEAT BELT TENSR (RETR SI) (PART OF 12) 2011-2013
009 BRACKET, P/SEAT CUSH FRM RR OTR (PART OF 10) 2011-2013
010 20993910 FRAME, P/SEAT CUSH (INCLS 5-7, 9, 25, 27, 31-35, 44, 45, 54, 55) (HAS BOLT HOLE NOT A STUD) DR35-69 (AH8, AL2, AQ9, AX4, EAM) (EXPORT) 2011-2013 01
011 25828643 BOLT, F/SEAT DR35-69 (EXPORT) 2011-2013 08
012 22766989 COVER, F/SEAT BELT TENSR (RETR SI) (INCLS 8) (EBONY) (LOWER) DR35-69 (01G) 2012-2013 02
012 22766991 COVER, F/SEAT BELT TENSR (RETR SI) (INCLS 8) (TITANIUM) (LOWER) D (01C) 2012-2013 02
013 19257694 TENSIONER KIT, P/SEAT BELT (RETR SI) (INCLS 14) D35-69 2011-2013 01
014 BOLT, P/SEAT BELT TENSR (RETR SI) (PART OF 13) 2011-2013
015 12451497 SWITCH, P/SEAT ADJR (8-WAY) DR35-69 (EXPORT) 2011-2013 01
016 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 38) 2011-2013 04
017 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 18) 2011-2013 04
018 25908343 COVER, P/SEAT CUSH CLOSEOUT (INCLS 17) (TITANIUM) (11.573) D35-47-69 (01C) 2011-2013 01
018 15947259 COVER, P/SEAT CUSH CLOSEOUT (INCLS 17) (EBONY) (11.573) DR (01G) (EXPORT) 2011-2013 01
019 25982268 COVER, F/SEAT BELT TENSR (RETR SI) (TITANIUM) (BOOT SIDE) D35-47-69 (01C) 2011-2013 01
020 15222985 KNOB, P/SEAT RECL (TITANIUM) DR35-69 (01C) (EXPORT) 2011-2013 01
020 15889530 KNOB, P/SEAT RECL (EBONY) (16.682) DR35-69 (01G) (EXPORT) 2011-2013 01
021 15222981 KNOB, P/SEAT ADJR SW (TITANIUM) DR35-69 (01C) (EXPORT) 2011-2013 01
021 15889524 KNOB, P/SEAT ADJR SW (EBONY) (16.682) DR35-69 (01G) (EXPORT) 2011-2013 01
022 HARNESS, P/SEAT WRG 2011-2013
023 20973023 HARNESS, P/SEAT CONT MDL WRG DR35-69 (AH8, AL2, AQ9, AX4, EAM) (EXPORT) 2011-2012 01
024 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 36, 37) 2011-2013 02
025 TRACK, P/SEAT OTR ADJR (PART OF 10) 2011-2013
026 15947303 COVER, P/SEAT OTR ADJR TRK FRT FIN (EBONY) DR35-69 (01C, 01G) (EXPORT) 2011-2013 01
027 TRACK, P/SEAT INR ADJR (PART OF 10) 2011-2013
028 15947311 COVER, P/SEAT INR ADJR TRK FRT FIN (EBONY) DR35-69 (01C, 01G) (EXPORT) 2011-2013 01
029 20777456 COVER, P/SEAT ADJR FIN (INCLS 30) (EBONY) (CARPET) DR (EXPORT) 2011-2013 01
030 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 29) 2011-2013 02
031 15894137 MOTOR, P/SEAT ADJR ACTR (PART OF 10) (W/O SEAT ADJR MEMORY MDL) (ACDelco #15894137) DR35-69 (EXPORT) 2011-2013 01
032 RETAINER, F/SEAT ADJR ACTR (PART OF 10) 2011-2013
033 BRACE, F/SEAT CUSH FRM (PART OF 10) 2011-2013
034 NUT, F/SEAT ADJR ACTR BRKT (PART OF 10) 2011-2013
035 15894172 ACTUATOR, F/SEAT TILT ADJR (PART OF 10) DR (AQ9, EAM, EBS) (EXPORT) 2011-2013 01
036 15947295 COVER, P/SEAT INR ADJR TRK RR FIN (INCLS 24) (EBONY) DR35-69 (01C, 01G) (EXPORT) 2011-2013 01
037 15947287 COVER, P/SEAT OTR ADJR TRK RR FIN (INCLS 24) (EBONY) DR35-69 (01C, 01G) (EXPORT) 2011-2013 01
038 25994746 BEZEL, P/SEAT ADJR SW (USED W/PRETENSIONER) (INCLS 16) (EBONY) (8 WAY W/ LUMBAR AND W/ PRETENSIONER) DR35-69 (AH8, AL2, AQ9, AX4, EBS, 01G) (EXPORT) 2012-2013 01
038 25908340 BEZEL, P/SEAT ADJR SW (INCLS 16) (TITANIUM) (USED W/O PRETENSIONER) DR35-69 (AH8, AL2, AQ9, EAM, EBS, 01C) (EXPORT) 2011-2013 01
039 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (P/SEAT ADJR FIN CVR) 2011-2013 01
040 25908452 SWITCH, P/SEAT LUMBAR CONT (TITANIUM) DR (01C) (EXPORT) 2011-2013 01
040 10315826 SWITCH, P/SEAT LUMBAR CONT (EBONY) DR (01G) (EXPORT) 2011-2013 01
041 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (P/SEAT RECL HDL BZL BRKT) 2011-2013 04
042 NUT, P/SEAT 2011-2013
043 25994139 BRACKET, P/SEAT RECL HDL BZL DR35-69 (AQ9, EAM, EBS) (EXPORT) 2011-2013 01
044 NUT, F/SEAT (PART OF 10) 2011-2013
045 WASHER, F/SEAT (PART OF 10) 2011-2013
046 NUT, P/SEAT 2011-2013
047 15894154 ACTUATOR, P/SEAT INR ADJR RR VERT DR35-69 (EXPORT) 2012-2013 01
047 15894163 ACTUATOR, P/SEAT INR ADJR RR VERT DR35-69 (AH8, AL2, AQ9, AX4, EAM) (EXPORT) 2011-2013 01
048 15947193 COVER, P/SEAT OTR ADJR FRT FIN (INCLS 49) (EBONY) DR35-69 (01G) (EXPORT) 2011-2013 01
048 25908332 COVER, P/SEAT OTR ADJR FRT FIN (INCLS 49) (TITANIUM) DR35-69 (01C) (EXPORT) 2011-2013 01
049 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 48) 2011-2013 03
050 NUT, P/SEAT BELT (BKL SI) (PART OF 51) 2011-2013
051 19259317 BELT KIT, P/SEAT (BKL SI) (INCLS 50) (EBONY) DR35-69 (01G) (EXPORT) 2012-2013 01
051 19259319 BELT KIT, P/SEAT (BKL SI) (INCLS 50) (TITANIUM) DR35-69 (01C) (EXPORT) 2012-2013 01
051 19259317 BELT KIT, P/SEAT (BKL SI) (INCLS 50) (EBONY) DR (01G) (EXPORT) 2012-2013 01
052 15947251 COVER, P/SEAT INR RECL FIN (INCLS 53) (EBONY) DR35-69 (01G) (EXPORT) 2011-2013 01
052 25908341 COVER, P/SEAT INR RECL FIN (INCLS 53) (TITANIUM) DR35-69 (01C) (EXPORT) 2011-2013 01
053 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 52) 2011-2013 01
054 INSULATOR, P/SEAT CUSH FRM (PART OF 10) 2011-2013
055 BRACKET, P/SEAT CUSH FRM FRT INR (PART OF 10) 2011-2013
