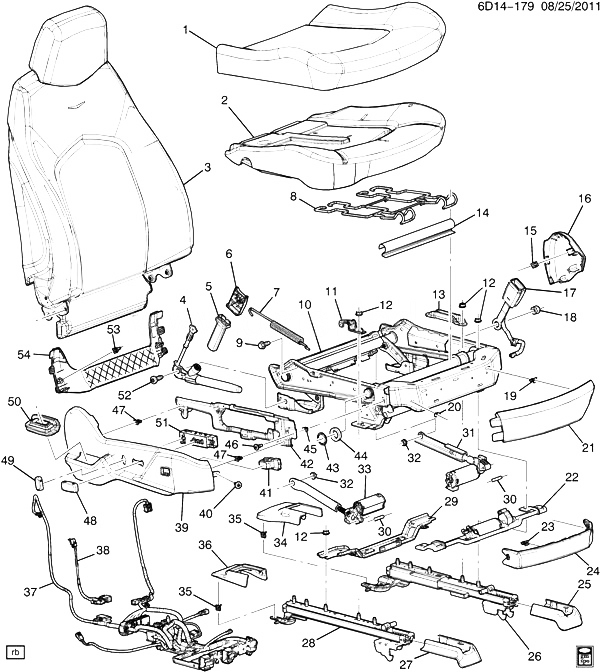

(6D14-179) 2011-2012 DR35-69 СИДЕНЬЕ В СБОРЕ/ВОДИТЕЛЯ-ПОДУШКА (POWER LUMBAR AL2, EXC MEMORY A45) CADILLAC - CTS SEDAN 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 22784972 COVER, D/SEAT CUSH (EBONY) DR35-69 (AL2, AQ9, AX4, EAM, 01G) (EXC A45) (EXPORT) 2012-2012 01
001 22795266 COVER, D/SEAT CUSH (TITANIUM) DR35-69 (AL2, AQ9, AX4, EAM, 01C) (EXC A45) (EXPORT) 2011-2012 01
002 25994338 PAD, D/SEAT CUSH DR35-69 (AL2, EAM) (EXC A45) (EXPORT) 2011-2012 01
003 PAD, D/SEAT BK (SEE GROUP 14.000 SEAT ASM/DRIVER-BACK FOR DETAILED ILLUSTRATED VIEW) 2011-2012
004 19257693 TENSIONER KIT, D/SEAT BELT (RETR SI) (INCLS 52) D35-69 2011-2012 01
005 22766989 COVER, F/SEAT BELT TENSR (RETR SI) (INCLS 6) (EBONY) (LOWER) DR35-69 (01G) 2012-2012 02
005 22766991 COVER, F/SEAT BELT TENSR (RETR SI) (INCLS 6) (TITANIUM) (LOWER) D (01C) 2012-2012 02
006 COVER, F/SEAT BELT TENSR (RETR SI) (PART OF 5) 2011-2012
007 SPRING, D/SEAT ADJR VERT ASST (PART OF 10) 2011-2012
008 15894132 WIRE, D/SEAT CUSH PAD (PART OF 10) DR35-69 (EXPORT) 2011-2012 01
009 25828643 BOLT, F/SEAT DR35-69 (EXPORT) 2011-2012 08
010 20993910 FRAME, D/SEAT CUSH (INCLS 7, 8, 11-14, 22, 26, 28-33, 43, 44) (HAS BOLT HOLE NOT A STUD) DR35-69 (AL2, AQ9, AX4, EAM) (EXC A45) (EXPORT) 2012-2012 01
011 BRACKET, D/SEAT CUSH FRM RR OTR (PART OF 10) 2011-2012
012 NUT, D/SEAT CUSH FRM (PART OF 10) 2011-2012
013 BRACKET, D/SEAT CUSH FRM FRT INR (PART OF 10) 2011-2012
014 INSULATOR, D/SEAT CUSH FRM (PART OF 10) 2011-2012
015 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 16) 2011-2012 01
016 15947255 COVER, D/SEAT INR RECL FIN (INCLS 15) (EBONY) DR (AQ9, 01G) (EXPORT) 2011-2012 01
016 25908859 COVER, D/SEAT INR RECL FIN (INCLS 15) (TITANIUM) DR (01C) (EXPORT) 2011-2012 01
017 19259319 BELT KIT, D/SEAT (BKL SI) (INCLS 18) (TITANIUM) DR (01C) (EXPORT) 2012-2012 01
018 NUT, D/SEAT BELT (BKL SI) (PART OF 17) 2011-2012
019 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 21) 2011-2012 04
020 NUT, D/SEAT 2011-2012
021 15747268 COVER, D/SEAT OTR ADJR FRT FIN (INCLS 19) (OAK) DR (01G) (EXC A45) (EXPORT) 2011-2012 01
021 25908857 COVER, D/SEAT OTR ADJR FRT FIN (INCLS 19) (TITANIUM) DR (AL2, AQ9, AX4, EAM, 01C) (EXC A45) (EXPORT) 2011-2012 01
022 15894137 MOTOR, D/SEAT ADJR ACTR (PART OF 10) (W/O SEAT ADJR MEMORY MDL) (ACDelco #15894137) DR (EXPORT) 2011-2012 01
023 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 24) 2011-2012 02
024 20777456 COVER, D/SEAT ADJR FIN (INCLS 23) (EBONY) (CARPET) DR (EXPORT) 2011-2012 01
025 15947315 COVER, D/SEAT INR ADJR TRK FRT FIN (EBONY) DR35-69 (01C, 01G) (EXPORT) 2011-2012 01
026 TRACK, D/SEAT INR ADJR (PART OF 10) 2011-2012
027 15947307 COVER, D/SEAT OTR ADJR TRK FRT FIN (EBONY) DR35-69 (01C, 01G) (EXPORT) 2011-2012 01
028 TRACK, D/SEAT OTR ADJR (PART OF 10) 2011-2012
029 BRACE, F/SEAT CUSH FRM (PART OF 10) 2011-2012
030 RETAINER, F/SEAT ADJR ACTR (PART OF 10) 2011-2012
031 15894170 ACTUATOR, F/SEAT TILT ADJR (PART OF 10) DR (AL2, AQ9, AX4, EAM) (EXC A45) (EXPORT) 2011-2012 01
031 15894172 ACTUATOR, F/SEAT TILT ADJR (PART OF 10) DR (AQ9, EAM, EBS) (EXPORT) 2011-2012 01
032 NUT, F/SEAT ADJR ACTR BRKT (PART OF 10) 2011-2012
033 15894163 ACTUATOR, D/SEAT OTR ADJR RR VERT (PART OF 10) DR35-69 (AH8, AL2, AQ9, AX4, EAM) (EXPORT) 2011-2012 01
033 15894163 ACTUATOR, D/SEAT OTR ADJR RR VERT (PART OF 10) DR35-69 (AL2, AQ9, AX4, EAM) (EXC A45) (EXPORT) 2012-2012 01
034 15947299 COVER, D/SEAT INR ADJR TRK RR FIN (INCLS 35) (EBONY) DR35-69 (01C, 01G) (EXPORT) 2011-2012 01
035 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 34, 36) 2011-2012 04
036 15947291 COVER, D/SEAT OTR ADJR TRK RR FIN (INCLS 35) (EBONY) DR35-69 (01C, 01G) (EXPORT) 2011-2012 01
037 20973027 HARNESS, D/SEAT CONT MDL WRG DR35-69 (AL2, AQ9, AX4, EAM) (EXC A45) (EXPORT) 2011-2012 01
038 20973027 HARNESS, D/SEAT CONT MDL WRG DR35-69 (AL2, AQ9, AX4, EAM) (EXC A45) (EXPORT) 2011-2012 01
039 25994756 BEZEL, D/SEAT ADJR SW (USED W/PRETENSIONER) (INCLS 47) (EBONY) DR35-69 (AQ9, 01G) (EXPORT) 2011-2012 01
039 25994757 BEZEL, D/SEAT ADJR SW (USED W/PRETENSIONER) (INCLS 47) (TITANIUM) DR35-69 (AQ9, 01C) (EXPORT) 2011-2012 01
040 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (D/SEAT ADJR SW BZL) 2011-2012 01
041 25908452 SWITCH, D/SEAT LUMBAR CONT (TITANIUM) D (01C) 2011-2012 01
041 10315826 SWITCH, D/SEAT LUMBAR CONT (EBONY) DR (01G) (EXPORT) 2011-2012 01
042 25994140 BRACKET, D/SEAT RECL HDL BZL DR (AQ9) (EXPORT) 2011-2012 01
043 NUT, F/SEAT (PART OF 10) 2011-2012
044 WASHER, F/SEAT (PART OF 10) 2011-2012
045 NUT, D/SEAT 2011-2012
046 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (D/SEAT RECL HDL BZL BRKT) 2011-2012 04
047 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 39) 2011-2012 04
048 15222981 KNOB, D/SEAT ADJR SW (TITANIUM) DR35-69 (01C) (EXPORT) 2011-2012 01
048 15889524 KNOB, D/SEAT ADJR SW (EBONY) (16.682) DR35-69 (01G) (EXPORT) 2011-2012 01
049 15222985 KNOB, D/SEAT RECL LVR (TITANIUM) DR35-69 (01C) (EXPORT) 2011-2012 01
049 15889530 KNOB, D/SEAT RECL LVR (EBONY) (16.682) DR35-69 (01G) (EXPORT) 2011-2012 01
050 25982266 COVER, F/SEAT BELT TENSR (RETR SI) (EBONY) (BOOT SIDE) DR35-69 (01G) 2011-2012 01
050 25982268 COVER, F/SEAT BELT TENSR (RETR SI) (TITANIUM) (BOOT SIDE) D35-47-69 (01C) 2011-2012 01
051 12451498 SWITCH, D/SEAT ADJR RECL (8-WAY) DR (EXPORT) 2011-2012 01
052 11609992 BOLT, D/SEAT BELT TENSR (RETR SI) (PART OF 4) (M10X1.5X30, 30 THD) (8.977) D69 2011-2012 01
053 15254056 CLIP, 19.2X12.2X13.0, 1050 STL, ZN.PUSH IN (PART OF 54) 2011-2012 04
054 25908343 COVER, D/SEAT CUSH CLOSEOUT (INCLS 53) (TITANIUM) (11.573) D35-47-69 (01C) 2011-2012 01
054 15947259 COVER, D/SEAT CUSH CLOSEOUT (INCLS 53) (EBONY) (11.573) DR (01G) (EXPORT) 2011-2012 01
