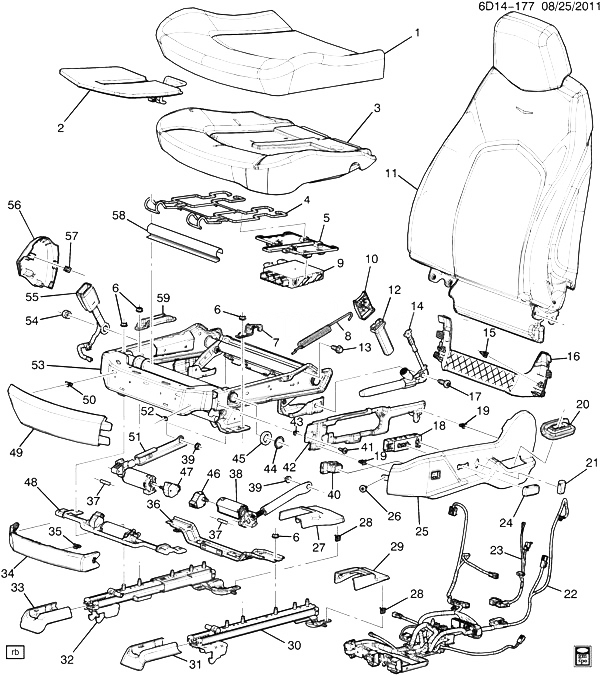

(6D14-177) 2011-2013 DR35-69 СИДЕНЬЕ В СБОРЕ/ВОДИТЕЛЯ-ПОДУШКА (POWER LUMBAR AL2, MEMORY A45, EXC VENTED/HEATED KB6) CADILLAC - CTS SEDAN 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25994122 COVER, D/SEAT CUSH (CASHMERE) DR35-69 (AL2, AQ9, A45, KA1, 01D) (EXC KB6) (EXPORT) 2011-2013 01
001 22784971 COVER, D/SEAT CUSH (EBONY) DR35-69 (AL2, AQ9, A45, KA1, 01G) (EXC KB6) (EXPORT) 2012-2013 01
001 20981875 COVER, D/SEAT CUSH (TITANIUM) DR35-69 (AL2, AQ9, A45, KA1, 01C) (EXC KB6) (EXPORT) 2011-2013 01
002 25994411 HEATER, D/SEAT CUSH DR35-69 (KA1) (EXC KB6) (EXPORT) 2011-2013 01
003 25994338 PAD, D/SEAT CUSH DR35-69 (A45, EBS, KA1) (EXC KB6) (EXPORT) 2011-2013 01
004 15894132 WIRE, D/SEAT CUSH PAD (PART OF 53) DR35-69 (EXPORT) 2011-2013 01
005 25994776 BRACKET, D/SEAT ADJR MEMORY MDL DR35-69 (EXPORT) 2011-2013 01
006 NUT, D/SEAT CUSH FRM (PART OF 53) 2011-2013
007 BRACKET, D/SEAT CUSH FRM RR OTR (PART OF 53) 2011-2013
008 SPRING, D/SEAT ADJR VERT ASST (PART OF 53) 2011-2013
009 25855630 MODULE, D/SEAT ADJR MEMORY (REQUIRES DEALER PROGRAMMING) (LABELED 25855630 OR 20870474) D35-69 (A45) (EXC N38) 2011-2013 01
009 25855630 MODULE, D/SEAT ADJR MEMORY (REQUIRES DEALER PROGRAMMING) (11.558) (LABELED 25855630 OR 20870474) D35-69 (A45) (EXC N38) 2011-2013 01
009 25857034 MODULE, D/SEAT ADJR MEMORY (REQUIRES DEALER PROGRAMMING) (11.558) D35-69 (A45, N38) 2011-2013 01
009 25857034 MODULE, D/SEAT ADJR MEMORY (REQUIRES DEALER PROGRAMMING) D35-69 (A45, N38) 2011-2013 01
010 COVER, F/SEAT BELT TENSR (RETR SI) (PART OF 12) 2011-2013
011 PAD, D/SEAT BK (SEE GROUP 14.000 SEAT ASM/DRIVER-BACK FOR DETAILED ILLUSTRATED VIEW) 2011-2013
012 22766989 COVER, F/SEAT BELT TENSR (RETR SI) (INCLS 10) (EBONY) (LOWER) DR35-69 (01G) 2012-2013 02
012 22766990 COVER, F/SEAT BELT TENSR (RETR SI) (INCLS 10) (CASHMERE) (LOWER) D35-69 (01D) 2012-2013 02
012 22766991 COVER, F/SEAT BELT TENSR (RETR SI) (INCLS 10) (TITANIUM) (LOWER) D (01C) 2012-2013 02
013 25828643 BOLT, F/SEAT DR35-69 (EXPORT) 2011-2013 08
014 19257693 TENSIONER KIT, D/SEAT BELT (RETR SI) (INCLS 17) D35-69 2011-2013 01
015 15254056 CLIP, 19.2X12.2X13.0, 1050 STL, ZN.PUSH IN (PART OF 16) 2011-2013 04
016 25908343 COVER, D/SEAT CUSH CLOSEOUT (INCLS 15) (TITANIUM) (11.573) D35-47-69 (01C) 2011-2013 01
016 15947257 COVER, D/SEAT CUSH CLOSEOUT (INCLS 15) (CASHMERE) (11.573) DR35-69 (01D) (EXPORT) 2011-2013 01
016 15947259 COVER, D/SEAT CUSH CLOSEOUT (INCLS 15) (EBONY) (11.573) DR (01G) (EXPORT) 2011-2013 01
017 11609992 BOLT, D/SEAT BELT TENSR (RETR SI) (PART OF 14) (M10X1.5X30, 30 THD) (8.977) D69 2011-2013 01
018 12451498 SWITCH, D/SEAT ADJR RECL (8-WAY) DR (EXPORT) 2011-2013 01
019 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 25) 2011-2013 04
020 25982267 COVER, F/SEAT BELT TENSR (RETR SI) (CASHMERE) (BOOT SIDE) DR35-69 (01D) (EXPORT) 2011-2013 01
020 25982262 COVER, F/SEAT BELT TENSR (RETR SI) (EBONY) (BOOT SIDE) DR (01G) (EXPORT) 2011-2013 01
021 15222985 KNOB, D/SEAT RECL LVR (TITANIUM) DR35-69 (01C) (EXPORT) 2011-2013 01
021 15889531 KNOB, D/SEAT RECL LVR (CASHMERE) (16.682) DR (01D) (EXPORT) 2011-2013 01
021 15889530 KNOB, D/SEAT RECL LVR (EBONY) (16.682) DR35-69 (01G) (EXPORT) 2011-2013 01
022 20973032 HARNESS, D/SEAT CONT MDL WRG DR35-69 (AL2, AQ9, AX4, A45, EBS, KA1) (EXC KB6) (EXPORT) 2011-2012 01
023 25994400 HARNESS, D/SEAT WRG (RECL POTENTIOMETER) (MEMRY JMPR) DR35-69 (AL2, AQ9, AX4, A45, EBS) (EXPORT) 2011-2013 01
024 15222981 KNOB, D/SEAT ADJR SW (TITANIUM) DR35-69 (01C) (EXPORT) 2011-2013 01
024 15889524 KNOB, D/SEAT ADJR SW (EBONY) (16.682) DR35-69 (01G) (EXPORT) 2011-2013 01
024 15889525 KNOB, D/SEAT ADJR SW (CASHMERE) (16.682) DR35-69 (01D) (EXPORT) 2011-2013 01
025 25994756 BEZEL, D/SEAT ADJR SW (USED W/PRETENSIONER) (INCLS 19) (EBONY) DR35-69 (AQ9, 01G) (EXPORT) 2011-2013 01
025 25994757 BEZEL, D/SEAT ADJR SW (USED W/PRETENSIONER) (INCLS 19) (TITANIUM) DR35-69 (AQ9, 01C) (EXPORT) 2011-2013 01
025 25994758 BEZEL, D/SEAT ADJR SW (USED W/PRETENSIONER) (INCLS 19) (CASHMERE) DR35-69 (AQ9, EBS, 01D) (EXPORT) 2011-2013 01
026 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (D/SEAT ADJR SW BZL) 2011-2013 01
027 15947297 COVER, D/SEAT INR ADJR TRK RR FIN (INCLS 28) (CASHMERE) DR35-69 (01D) (EXPORT) 2011-2013 01
027 15947299 COVER, D/SEAT INR ADJR TRK RR FIN (INCLS 28) (EBONY) DR35-69 (01C, 01G) (EXPORT) 2011-2013 01
028 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 27, 29) 2011-2013 04
029 15947289 COVER, D/SEAT OTR ADJR TRK RR FIN (INCLS 28) (CASHMERE) DR35-69 (01D) (EXPORT) 2011-2013 01
029 15947291 COVER, D/SEAT OTR ADJR TRK RR FIN (INCLS 28) (EBONY) DR35-69 (01C, 01G) (EXPORT) 2011-2013 01
030 TRACK, D/SEAT OTR ADJR (PART OF 53) 2011-2013
031 15947305 COVER, D/SEAT OTR ADJR TRK FRT FIN (CASHMERE) DR35-69 (01D) (EXPORT) 2011-2013 01
031 15947307 COVER, D/SEAT OTR ADJR TRK FRT FIN (EBONY) DR35-69 (01C, 01G) (EXPORT) 2011-2013 01
032 TRACK, D/SEAT INR ADJR (PART OF 53) 2011-2013
033 15947313 COVER, D/SEAT INR ADJR TRK FRT FIN (CASHMERE) DR35-69 (01D) (EXPORT) 2011-2013 01
033 15947315 COVER, D/SEAT INR ADJR TRK FRT FIN (EBONY) DR35-69 (01C, 01G) (EXPORT) 2011-2013 01
034 20777456 COVER, D/SEAT ADJR FIN (INCLS 35) (EBONY) (CARPET) DR (EXPORT) 2011-2013 01
035 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 34) 2011-2013 02
036 BRACE, F/SEAT CUSH FRM (PART OF 53) 2011-2013
037 RETAINER, F/SEAT ADJR ACTR (PART OF 53) 2011-2013
038 15894164 ACTUATOR, D/SEAT OTR ADJR RR VERT (INCLS 46) (PART OF 53) DR (AL2, A45) (EXPORT) 2012-2013 01
039 NUT, F/SEAT ADJR ACTR BRKT (PART OF 53) 2011-2013
040 25908452 SWITCH, D/SEAT LUMBAR CONT (TITANIUM) D (01C) 2011-2013 01
040 15210786 SWITCH, D/SEAT LUMBAR CONT (CASHMERE) DR35-69 (01D) (EXPORT) 2011-2013 01
040 10315826 SWITCH, D/SEAT LUMBAR CONT (EBONY) DR (01G) (EXPORT) 2011-2013 01
041 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (D/SEAT RECL HDL BZL BRKT) 2011-2013 04
042 25994140 BRACKET, D/SEAT RECL HDL BZL DR (AQ9) (EXPORT) 2011-2013 01
043 NUT, D/SEAT 2011-2013
044 NUT, F/SEAT (PART OF 53) 2011-2013
045 WASHER, F/SEAT (PART OF 53) 2011-2013
046 MODULE, F/SEAT ADJR MEMORY (PART OF 38, 53) 2011-2013
047 MODULE, F/SEAT ADJR MEMORY (PART OF 51, 53) 2011-2013
048 15894138 MOTOR, D/SEAT ADJR ACTR (PART OF 53) (W/SEAT ADJR MEMORY MDL) (ACDelco #15894138) DR35-69 (A45) (EXPORT) 2011-2013 01
048 15894137 MOTOR, D/SEAT ADJR ACTR (PART OF 53) (W/O SEAT ADJR MEMORY MDL) (ACDelco #15894137) DR (EXPORT) 2011-2013 01
049 15947234 COVER, D/SEAT OTR ADJR FRT FIN (INCLS 50) (CASHMERE) DR (A45, 01D) (EXPORT) 2011-2013 01
049 15947236 COVER, D/SEAT OTR ADJR FRT FIN (INCLS 50) (EBONY) DR (A45, 01G) (EXPORT) 2011-2013 01
049 25908857 COVER, D/SEAT OTR ADJR FRT FIN (INCLS 50) (TITANIUM) DR (A45, 01C) (EXPORT) 2011-2013 01
050 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 49) 2011-2013 04
051 15894173 ACTUATOR, F/SEAT TILT ADJR (INCLS 47) (PART OF 53) DR (AL2, A45) (EXPORT) 2012-2013 01
052 NUT, D/SEAT 2011-2013
053 20993909 FRAME, D/SEAT CUSH (INCLS 4, 6-8, 30, 32, 36-39, 44-48, 51, 58, 59) (HAS BOLT HOLE NOT A STUD) DR35-69 (AL2, AQ9, AX4, A45, EBS) (EXPORT) 2012-2013 01
054 NUT, D/SEAT BELT (BKL SI) (PART OF 55) 2011-2013
055 19259318 BELT KIT, D/SEAT (BKL SI) (INCLS 54) (CASHMERE) DR35-69 (01D) (EXPORT) 2012-2013 01
055 19259319 BELT KIT, D/SEAT (BKL SI) (INCLS 54) (TITANIUM) DR (01C) (EXPORT) 2012-2013 01
056 15947253 COVER, D/SEAT INR RECL FIN (INCLS 57) (CASHMERE) DR35-69 (AQ9, 01D) (EXPORT) 2011-2013 01
056 15947255 COVER, D/SEAT INR RECL FIN (INCLS 57) (EBONY) DR (AQ9, 01G) (EXPORT) 2011-2013 01
056 25908859 COVER, D/SEAT INR RECL FIN (INCLS 57) (TITANIUM) DR (01C) (EXPORT) 2011-2013 01
057 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 56) 2011-2013 01
058 INSULATOR, D/SEAT CUSH FRM (PART OF 53) 2011-2013
059 BRACKET, D/SEAT CUSH FRM FRT INR (PART OF 53) 2011-2013
