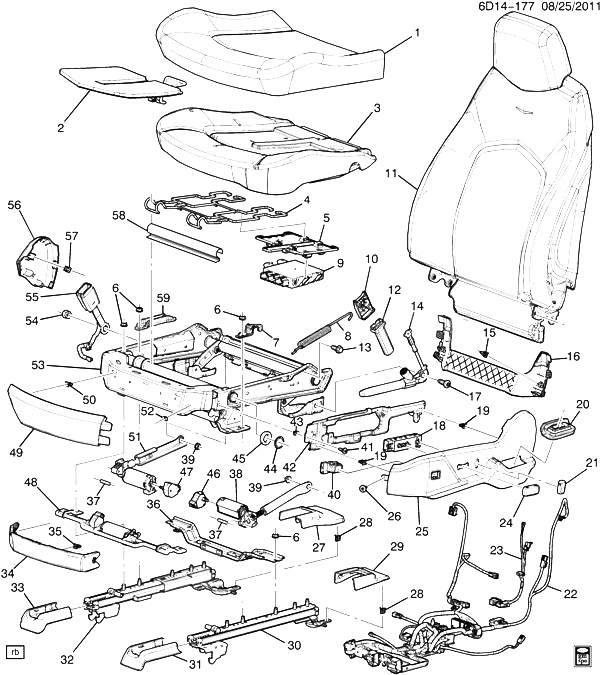

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
22784993 |
COVER, D/SEAT CUSH (EBONY) |
DN35-69 (AL2, AQ9, A45, ECH, KA1, 01G) (EXC KB6) |
2012-2013 |
01 |
| 001 |
22789886 |
COVER, D/SEAT CUSH (TITANIUM) |
DN35-69 (AL2, AQ9, A45, ECH, KA1, 01C) (EXC KB6) |
2012-2013 |
01 |
| 002 |
25994411 |
HEATER, D/SEAT CUSH |
DN35-69 (KA1) (EXC KB6) |
2012-2013 |
01 |
| 003 |
25994136 |
PAD, D/SEAT CUSH |
DN35-69 (AL2, AQ9, A45, ECH, KA1) (EXC KB6) |
2011-2013 |
01 |
| 004 |
15894132 |
WIRE, D/SEAT CUSH PAD (PART OF 53) |
DN35-69 |
2011-2013 |
01 |
| 005 |
22829248 |
BRACKET, D/SEAT ADJR MEMORY MDL (MUST ORDER 4 SCREWS 11509231 TO ATTACH MODULE 2011 PRIOR) |
DM, DN (AL2, AQ9) |
2012-2013 |
01 |
| 005 |
22827668 |
BRACKET, D/SEAT ADJR MEMORY MDL |
DM, DN (AL2, W2E) (EXC KA1) |
2012-2013 |
AR |
| 006 |
|
NUT, D/SEAT CUSH FRM (PART OF 53) |
|
2011-2013 |
|
| 007 |
|
BRACKET, D/SEAT CUSH FRM RR OTR (PART OF 53) |
|
2011-2013 |
|
| 008 |
|
SPRING, D/SEAT ADJR VERT ASST (PART OF 53) |
|
2011-2013 |
|
| 009 |
25855630 |
MODULE, D/SEAT ADJR MEMORY (REQUIRES DEALER PROGRAMMING) (LABELED 25855630 OR 20870474) |
D35-69 (A45) (EXC N38) |
2011-2013 |
01 |
| 009 |
25855630 |
MODULE, D/SEAT ADJR MEMORY (REQUIRES DEALER PROGRAMMING) (11.558) (LABELED 25855630 OR 20870474) |
D35-69 (A45) (EXC N38) |
2011-2013 |
01 |
| 009 |
25857034 |
MODULE, D/SEAT ADJR MEMORY (REQUIRES DEALER PROGRAMMING) (11.558) |
D35-69 (A45, N38) |
2011-2013 |
01 |
| 009 |
25857034 |
MODULE, D/SEAT ADJR MEMORY (REQUIRES DEALER PROGRAMMING) |
D35-69 (A45, N38) |
2011-2013 |
01 |
| 010 |
|
COVER, F/SEAT BELT TENSR (RETR SI) (PART OF 12) |
|
2011-2013 |
|
| 011 |
|
PAD, D/SEAT BK (SEE GROUP 14.000 SEAT ASM/DRIVER-BACK FOR DETAILED ILLUSTRATED VIEW) |
|
2011-2013 |
|
| 012 |
22766989 |
COVER, F/SEAT BELT TENSR (RETR SI) (INCLS 10) (EBONY) (LOWER) |
DM, DN (01G, 02W) |
2012-2013 |
02 |
| 012 |
22766990 |
COVER, F/SEAT BELT TENSR (RETR SI) (INCLS 10) (CASHMERE) (LOWER) |
D35-69 (01D) |
2012-2013 |
02 |
| 012 |
22766991 |
COVER, F/SEAT BELT TENSR (RETR SI) (INCLS 10) (TITANIUM) (LOWER) |
D (01C) |
2012-2013 |
02 |
| 013 |
25828643 |
BOLT, F/SEAT |
DN |
2011-2013 |
08 |
| 014 |
19257693 |
TENSIONER KIT, D/SEAT BELT (RETR SI) (INCLS 17) |
D35-69 |
2011-2013 |
01 |
| 015 |
15254056 |
CLIP, 19.2X12.2X13.0, 1050 STL, ZN.PUSH IN (PART OF 16) |
|
2011-2013 |
04 |
| 016 |
15947259 |
COVER, D/SEAT CUSH CLOSEOUT (INCLS 15) (EBONY) (11.573) |
DN (01G) |
2011-2013 |
01 |
| 016 |
25908343 |
COVER, D/SEAT CUSH CLOSEOUT (INCLS 15) (TITANIUM) (11.573) |
D35-47-69 (01C) |
2011-2013 |
01 |
| 017 |
11609992 |
BOLT, D/SEAT BELT TENSR (RETR SI) (PART OF 14) (M10X1.5X30, 30 THD) (8.977) |
D69 |
2011-2013 |
01 |
| 018 |
12451497 |
SWITCH, D/SEAT ADJR RECL (8-WAY) |
DM, DN |
2011-2013 |
01 |
| 019 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 25) |
|
2011-2013 |
04 |
| 020 |
25982268 |
COVER, F/SEAT BELT TENSR (RETR SI) (TITANIUM) (BOOT SIDE) |
D35-47-69 (01C) |
2011-2013 |
01 |
| 020 |
25982266 |
COVER, F/SEAT BELT TENSR (RETR SI) (EBONY) (BOOT SIDE) |
DN (01G) |
2011-2013 |
01 |
| 021 |
15222985 |
KNOB, D/SEAT RECL LVR (TITANIUM) |
DN (01C) |
2011-2013 |
01 |
| 021 |
15889530 |
KNOB, D/SEAT RECL LVR (EBONY) (16.682) |
DN35-69 (01G) |
2011-2013 |
01 |
| 022 |
22796536 |
HARNESS, D/SEAT CONT MDL WRG |
DN35-69 (AL2, AQ9, A45, ECH, KA1) (EXC KB6) |
2011-2012 |
01 |
| 023 |
25994400 |
HARNESS, D/SEAT WRG (RECL POTENTIOMETER) (MEMRY JMPR) |
DM, DN69 (AL2, AQ9, A45, ECH, KA1) (EXC KB6) |
2011-2013 |
01 |
| 024 |
15222981 |
KNOB, D/SEAT ADJR SW (TITANIUM) |
DN (01C) |
2011-2013 |
01 |
| 024 |
15889524 |
KNOB, D/SEAT ADJR SW (EBONY) (16.682) |
DN (01G) |
2011-2013 |
01 |
| 025 |
25994746 |
BEZEL, D/SEAT ADJR SW (USED W/PRETENSIONER) (INCLS 19) (EBONY) (8 WAY W/ LUMBAR AND W/ PRETENSIONER) |
DN (AQ9, ECH, 01G) |
2012-2013 |
01 |
| 026 |
11609539 |
SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (D/SEAT ADJR SW BZL) |
|
2011-2013 |
01 |
| 027 |
15947295 |
COVER, D/SEAT INR ADJR TRK RR FIN (INCLS 28) (EBONY) |
DN69 (01C, 01G) |
2011-2013 |
01 |
| 028 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 27, 29) |
|
2011-2013 |
04 |
| 029 |
15947287 |
COVER, D/SEAT OTR ADJR TRK RR FIN (INCLS 28) (EBONY) |
DN69 (01C, 01G) |
2011-2013 |
01 |
| 030 |
|
TRACK, D/SEAT OTR ADJR (PART OF 53) |
|
2011-2013 |
|
| 031 |
15947303 |
COVER, D/SEAT OTR ADJR TRK FRT FIN (EBONY) |
DN69 (01C, 01G) |
2011-2013 |
01 |
| 032 |
|
TRACK, D/SEAT INR ADJR (PART OF 53) |
|
2011-2013 |
|
| 033 |
15947311 |
COVER, D/SEAT INR ADJR TRK FRT FIN (EBONY) |
DN69 (01C, 01G) |
2011-2013 |
01 |
| 034 |
20777456 |
COVER, D/SEAT ADJR FIN (INCLS 35) (EBONY) (CARPET) |
DM, DN |
2011-2013 |
01 |
| 035 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 34) |
|
2011-2013 |
02 |
| 036 |
|
BRACE, F/SEAT CUSH FRM (PART OF 53) |
|
2011-2013 |
|
| 037 |
|
RETAINER, F/SEAT ADJR ACTR (PART OF 53) |
|
2011-2013 |
|
| 038 |
15894164 |
ACTUATOR, D/SEAT OTR ADJR RR VERT (INCLS 46) (PART OF 53) |
DN (AL2, A45) |
2011-2013 |
01 |
| 039 |
|
NUT, F/SEAT ADJR ACTR BRKT (PART OF 53) |
|
2011-2013 |
|
| 040 |
25908452 |
SWITCH, D/SEAT LUMBAR CONT (TITANIUM) |
D (01C) |
2011-2013 |
01 |
| 040 |
10315826 |
SWITCH, D/SEAT LUMBAR CONT (EBONY) |
DM, DN35-69 (ECH, 01G) |
2012-2012 |
01 |
| 040 |
10315826 |
SWITCH, D/SEAT LUMBAR CONT (EBONY) |
DN35-69 (01G) |
2011-2013 |
01 |
| 041 |
11609539 |
SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (D/SEAT RECL HDL BZL BRKT) |
|
2011-2013 |
04 |
| 042 |
25994139 |
BRACKET, D/SEAT RECL HDL BZL |
DM, DN (AQ9) |
2011-2013 |
01 |
| 043 |
|
NUT, D/SEAT |
|
2011-2013 |
|
| 044 |
|
NUT, F/SEAT (PART OF 53) |
|
2011-2013 |
|
| 045 |
|
WASHER, F/SEAT (PART OF 53) |
|
2011-2013 |
|
| 046 |
|
MODULE, F/SEAT ADJR MEMORY (PART OF 38, 53) |
|
2011-2013 |
|
| 047 |
|
MODULE, F/SEAT ADJR MEMORY (PART OF 51, 53) |
|
2011-2013 |
|
| 048 |
15894138 |
MOTOR, D/SEAT ADJR ACTR (PART OF 53) (W/SEAT ADJR MEMORY MDL) (ACDelco #15894138) |
DN (A45) |
2011-2013 |
01 |
| 048 |
15894137 |
MOTOR, D/SEAT ADJR ACTR (PART OF 53) (W/O SEAT ADJR MEMORY MDL) (ACDelco #15894137) |
DN |
2011-2013 |
01 |
| 049 |
25908332 |
COVER, D/SEAT OTR ADJR FRT FIN (INCLS 50) (TITANIUM) |
DN35-69 (01C) |
2011-2013 |
01 |
| 049 |
15947193 |
COVER, D/SEAT OTR ADJR FRT FIN (INCLS 50) (EBONY) |
DN (01G, 02W) |
2011-2013 |
01 |
| 050 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 49) |
|
2011-2013 |
04 |
| 051 |
15894173 |
ACTUATOR, F/SEAT TILT ADJR (INCLS 47) (PART OF 53) |
DN (AL2, A45) |
2011-2013 |
01 |
| 052 |
|
NUT, D/SEAT |
|
2011-2013 |
|
| 053 |
20993909 |
FRAME, D/SEAT CUSH (INCLS 4, 6-8, 30, 32, 36-39, 44-48, 51, 58, 59) (HAS BOLT HOLE NOT A STUD) |
DN35-69 (AL2, AQ9, A45, ECH, KA1) (EXC KB6) |
2011-2013 |
01 |
| 054 |
|
NUT, D/SEAT BELT (BKL SI) (PART OF 55) |
|
2011-2013 |
|
| 055 |
19259317 |
BELT KIT, D/SEAT (BKL SI) (INCLS 54) (EBONY) |
DM, DN (01G) |
2012-2013 |
01 |
| 055 |
19259318 |
BELT KIT, D/SEAT (BKL SI) (INCLS 54) (CASHMERE) |
DM, DN (01D) |
2012-2013 |
01 |
| 055 |
19259319 |
BELT KIT, D/SEAT (BKL SI) (INCLS 54) (TITANIUM) |
DM, DN (01C) |
2012-2013 |
01 |
| 055 |
19259317 |
BELT KIT, D/SEAT (BKL SI) (INCLS 54) (EBONY) |
DN (02W) (EXC AX4) |
2012-2013 |
01 |
| 056 |
25908341 |
COVER, D/SEAT INR RECL FIN (INCLS 57) (TITANIUM) |
DN (01C) |
2011-2013 |
01 |
| 056 |
15947251 |
COVER, D/SEAT INR RECL FIN (INCLS 57) (EBONY) |
DN35-69 (AQ9, 01G) |
2011-2013 |
01 |
| 056 |
25908859 |
COVER, D/SEAT INR RECL FIN (INCLS 57) (TITANIUM) |
DM, DN (01C) |
2011-2013 |
01 |
| 057 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 56) |
|
2011-2013 |
01 |
| 058 |
|
INSULATOR, D/SEAT CUSH FRM (PART OF 53) |
|
2011-2013 |
|
| 059 |
|
BRACKET, D/SEAT CUSH FRM FRT INR (PART OF 53) |
|
2011-2013 |
|
